Fuel System: Turbochargers: Removal

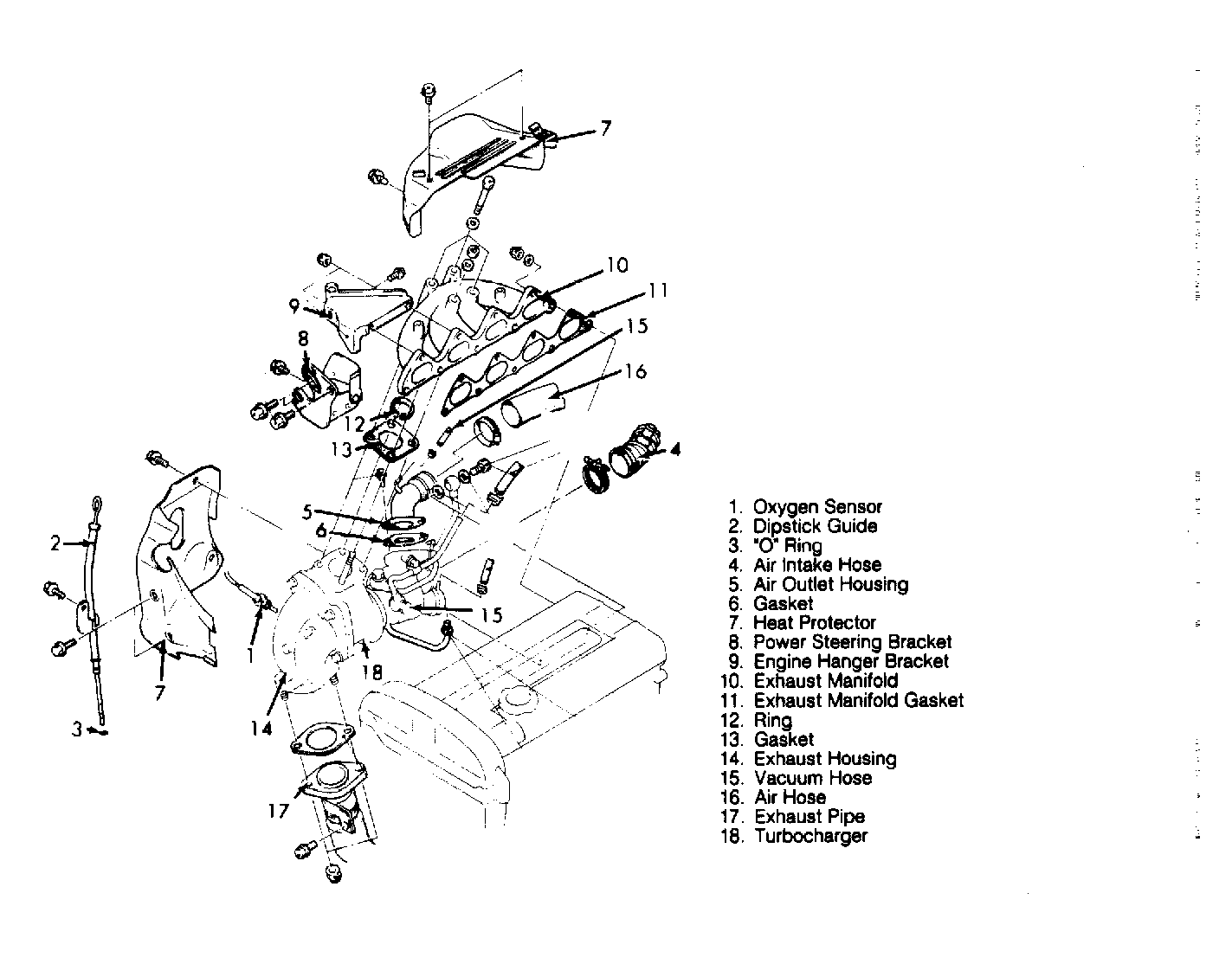

- Disconnect negative battery cable. Drain engine coolant and oil. On models with A/C, remove condenser fan motor assembly. On Galant, remove radiator. On all models, remove O2 sensor. Remove oil dipstick guide and "O" ring. See Fig 1
.

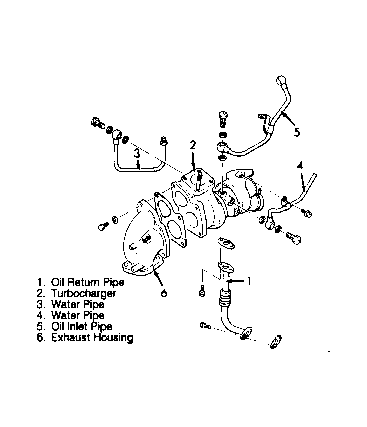

- Disconnect air intake hose and vacuum hoses. Remove air hose and air outlet housing. Remove heat protectors. Disconnect exhaust pipe. Remove power steering oil pump and bracket. Remove engine hanger bracket. Disconnect oil inlet pipe. See Fig 2
.
- Disconnect coolant hose and tubes. Remove nuts and bolts securing exhaust manifold. Remove exhaust manifold and gaskets. Disconnect oil return pipe. Remove turbocharger assembly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
