Dr-6A: Code 55, Testing Idle Speed Motor Circuit

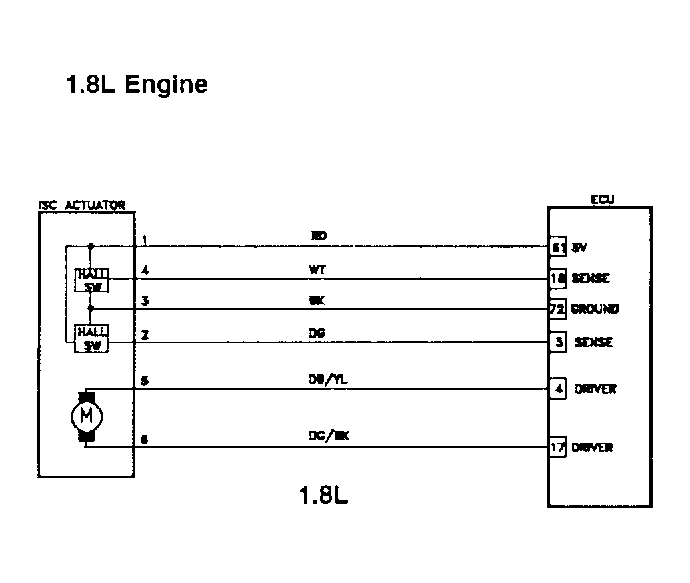

Fig 1: Test DR-6A Schematic (1.8L) - Code 55 Testing Idle Speed Motor Circuit

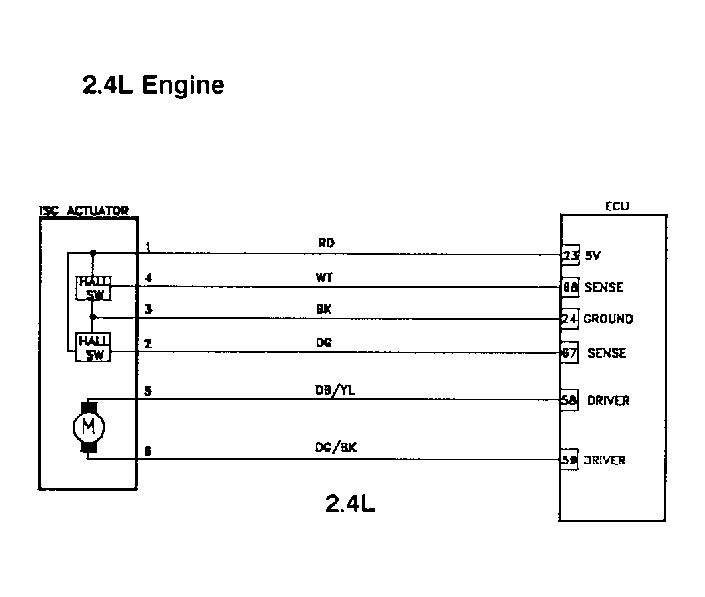

Fig 2: Test DR-6A Schematic (2.4L) - Code 55 Testing Idle Speed Motor Circuit

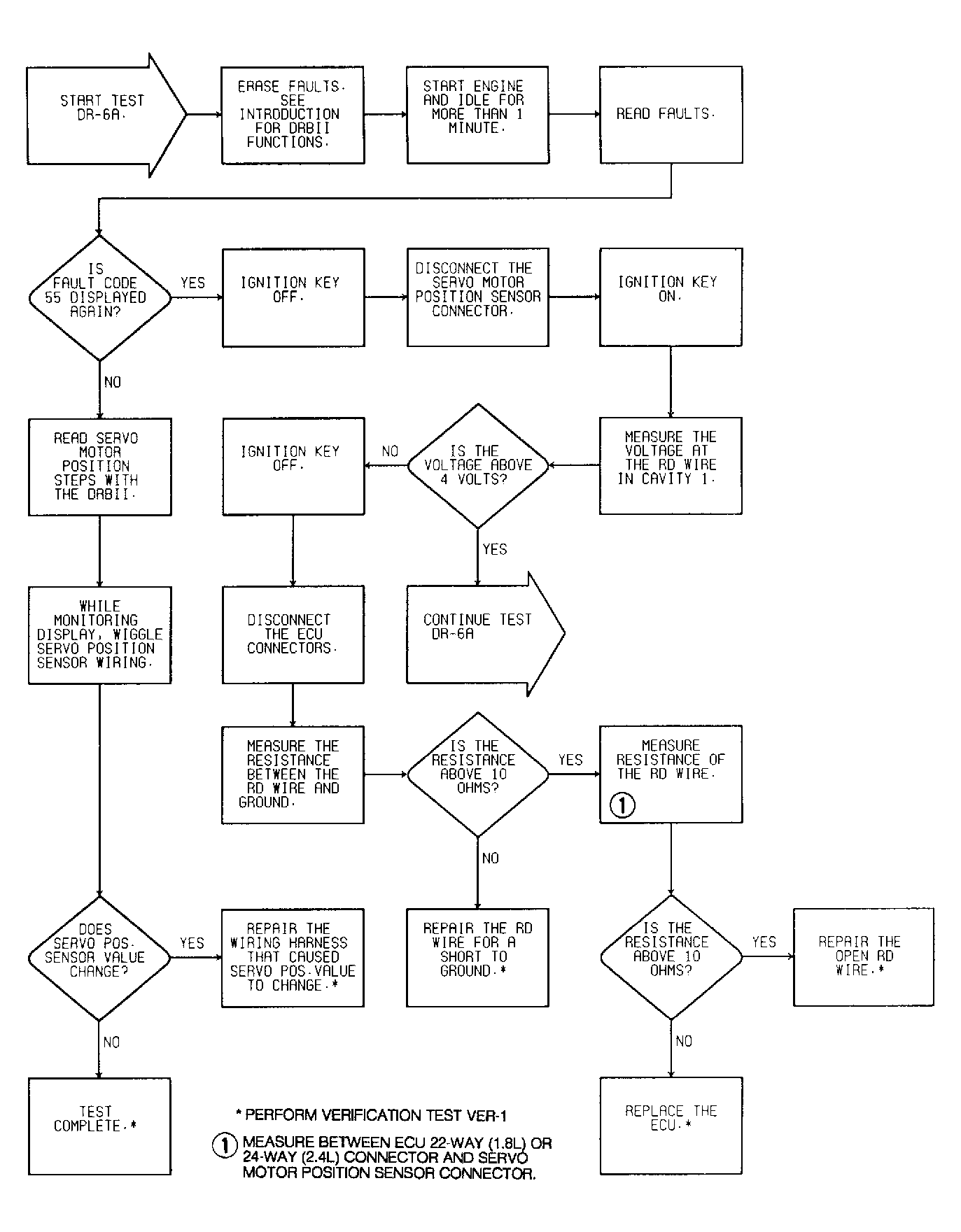

Fig 3: Test DR-6A Flow Chart (1 Of 3) Testing Idle Speed Motor Circuit

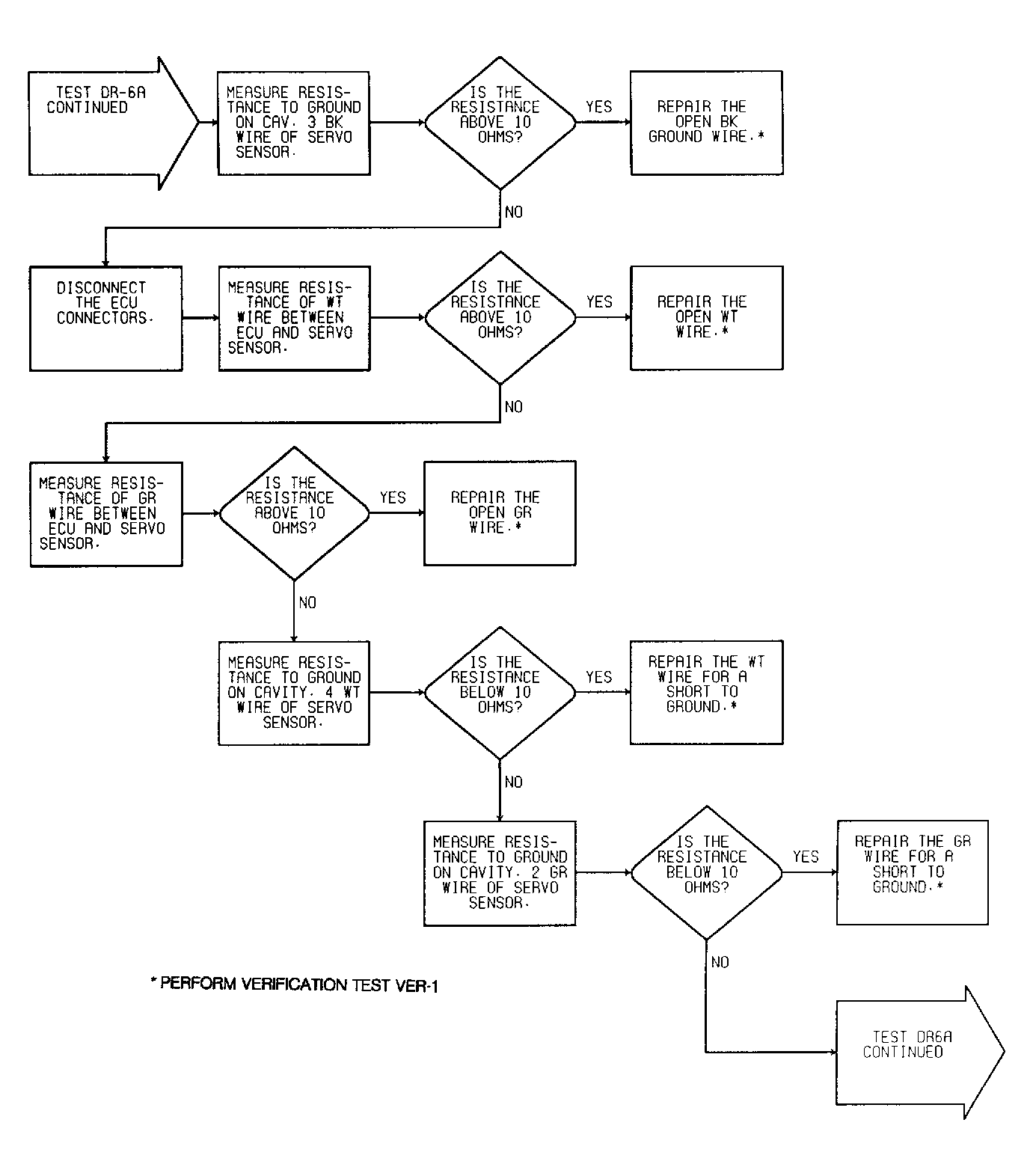

Fig 4: Test DR-6A Flow Chart (2 Of 3) Testing Idle Speed Motor Circuit

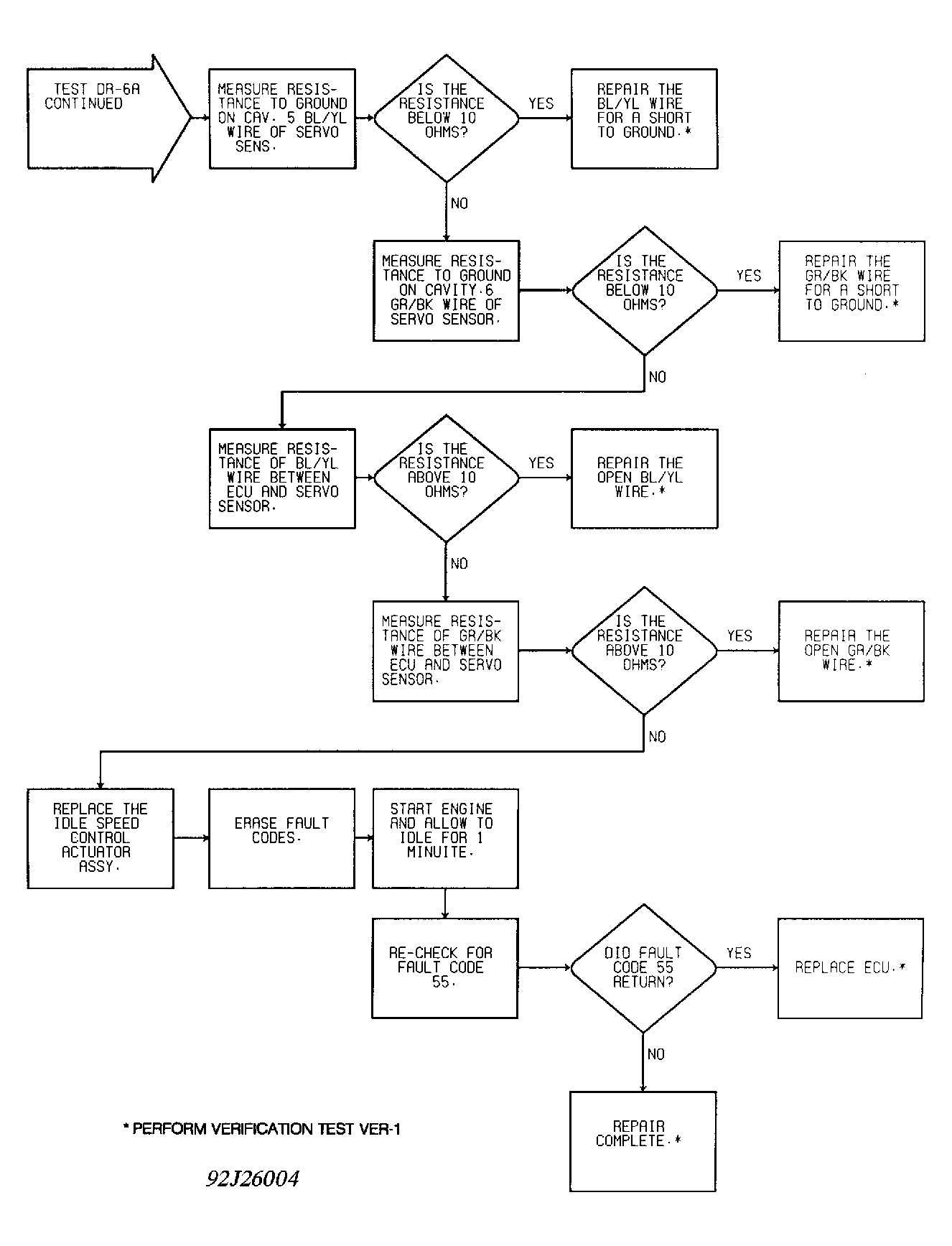

Fig 5: Test DR-6A Flow Chart (3 Of 3) Testing Idle Speed Motor Circuit
