Power Window Relay
Remove the power window relay from the relay box to test. See
Fig 1
.

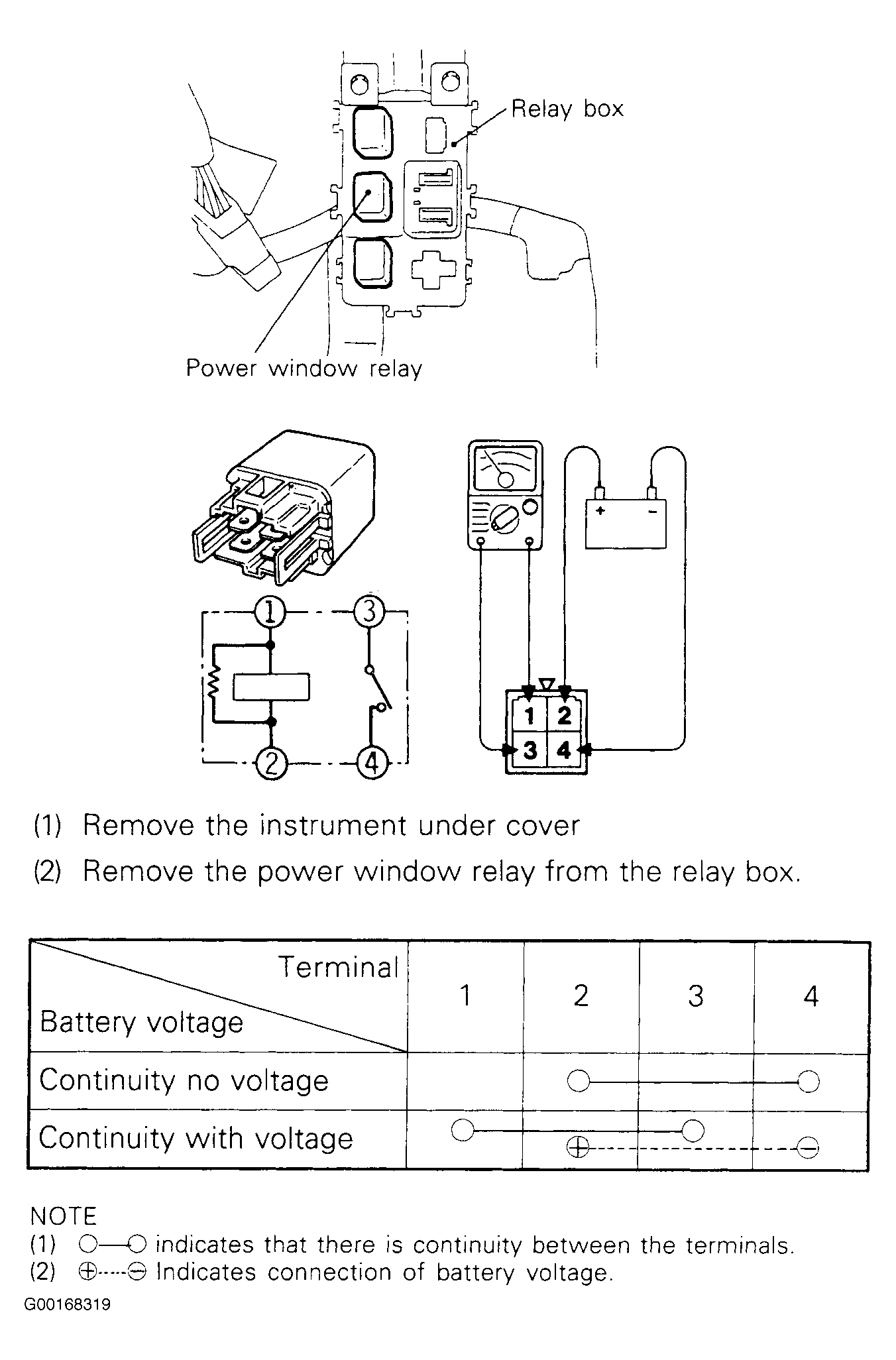

Fig 1: Inspecting Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
