Power Window Switch

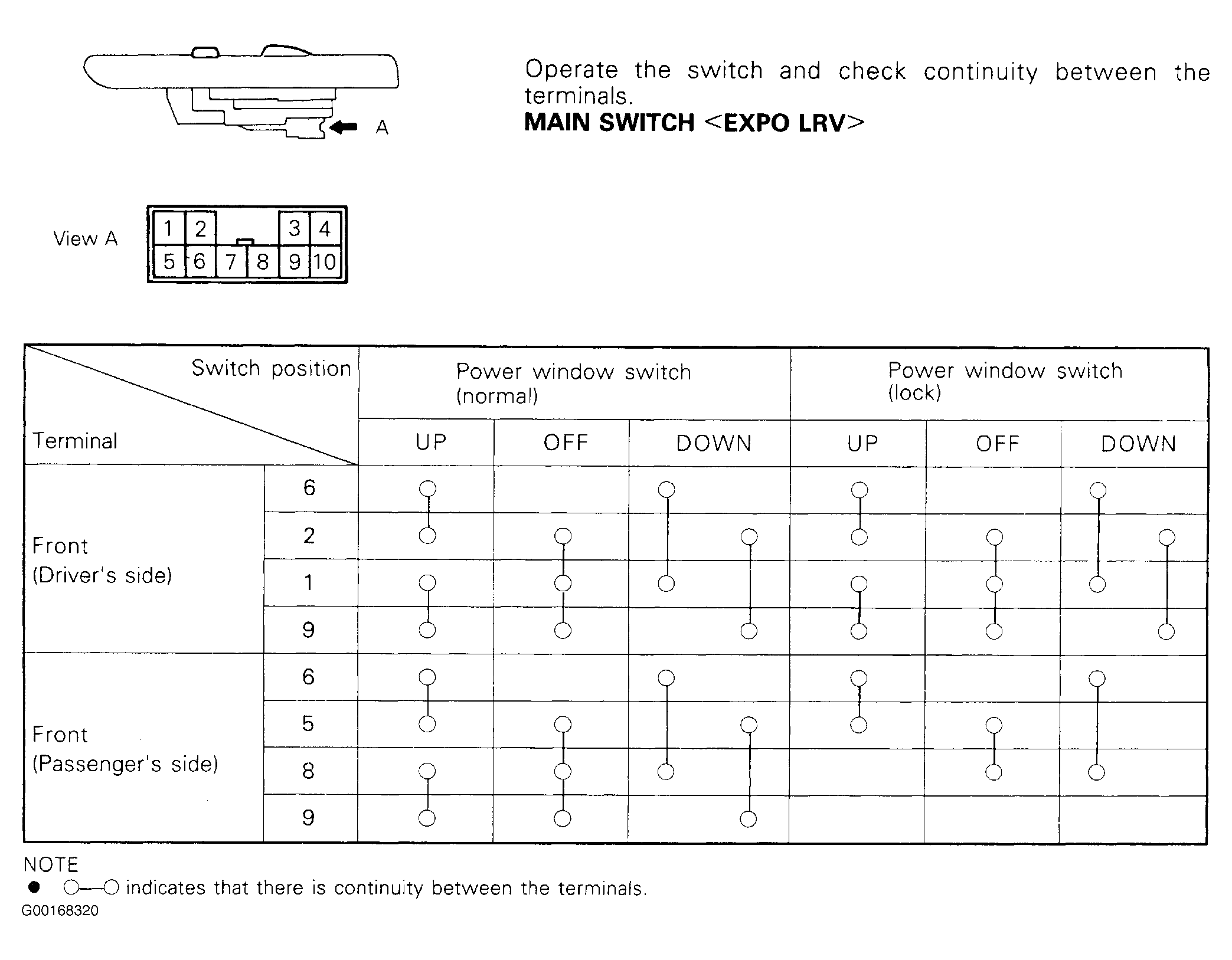

Fig 1: Testing Power Window Switch (Expo LRV)
G00168320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

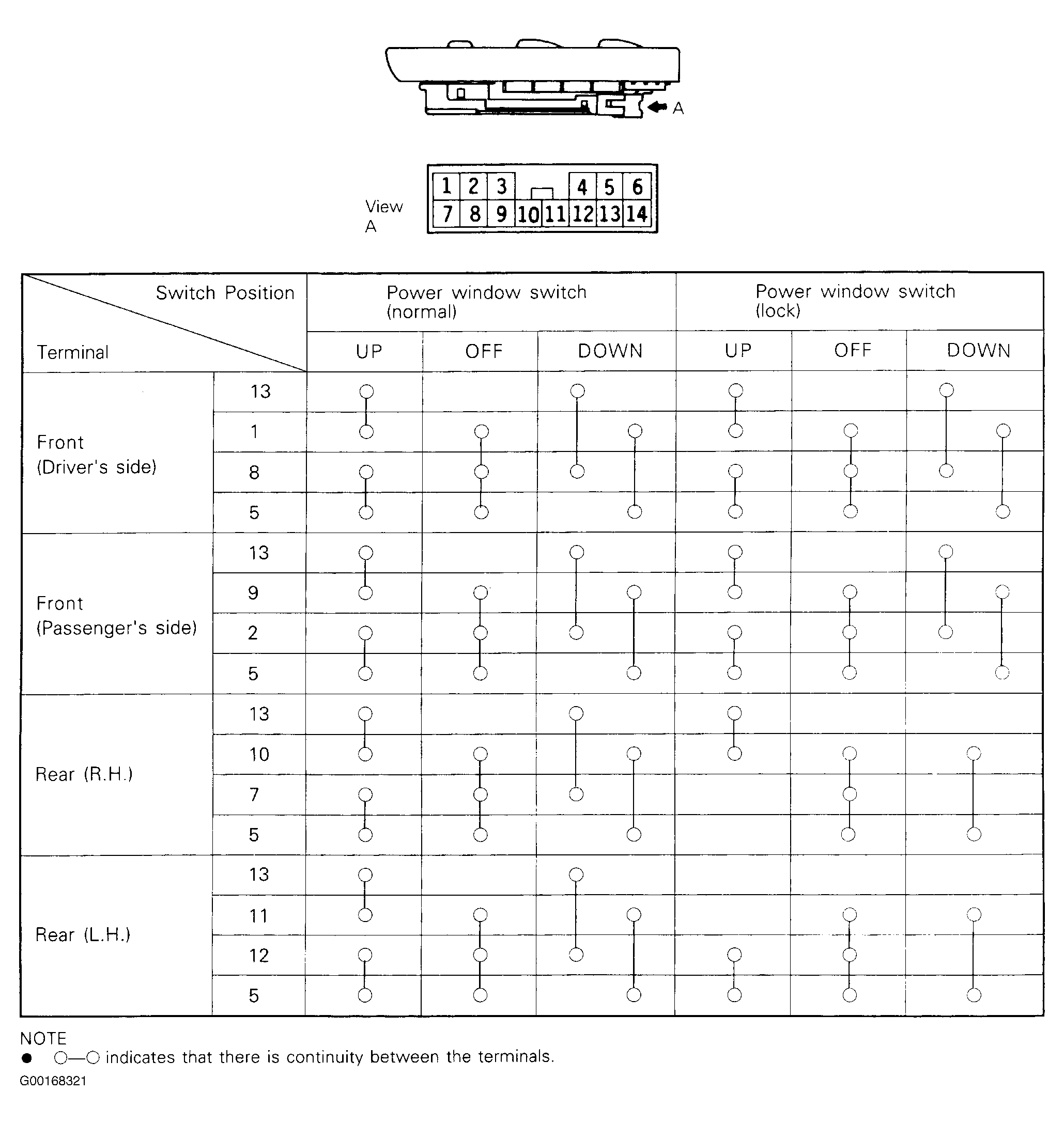

Fig 2: Testing Main Switch (Expo)
G00168321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
