Dr-14A: No Fault Code Switch Tests

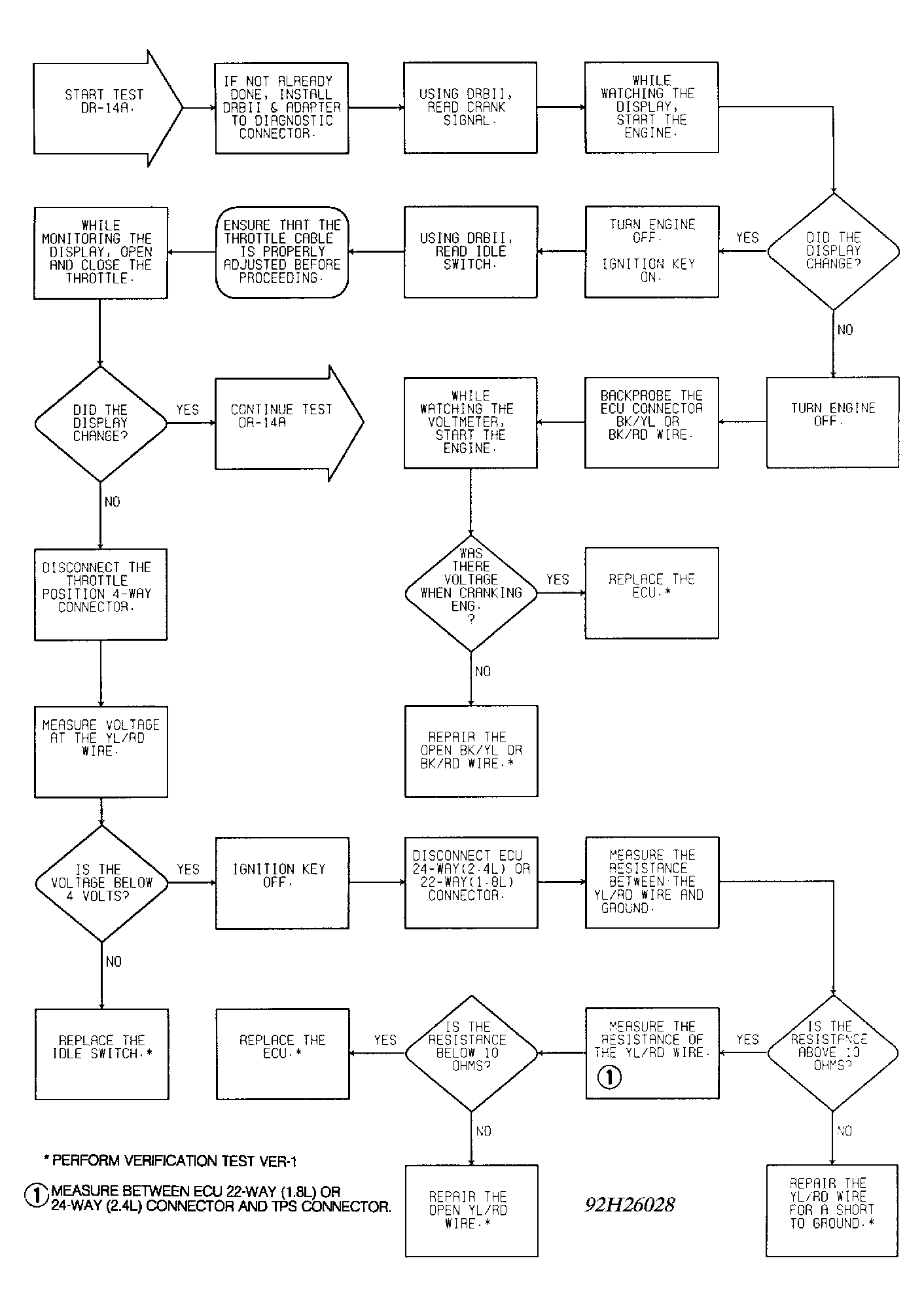

Fig 1: Test DR-14A Flow Chart (1 Of 4) No Fault Code Switch Tests
G92H26028

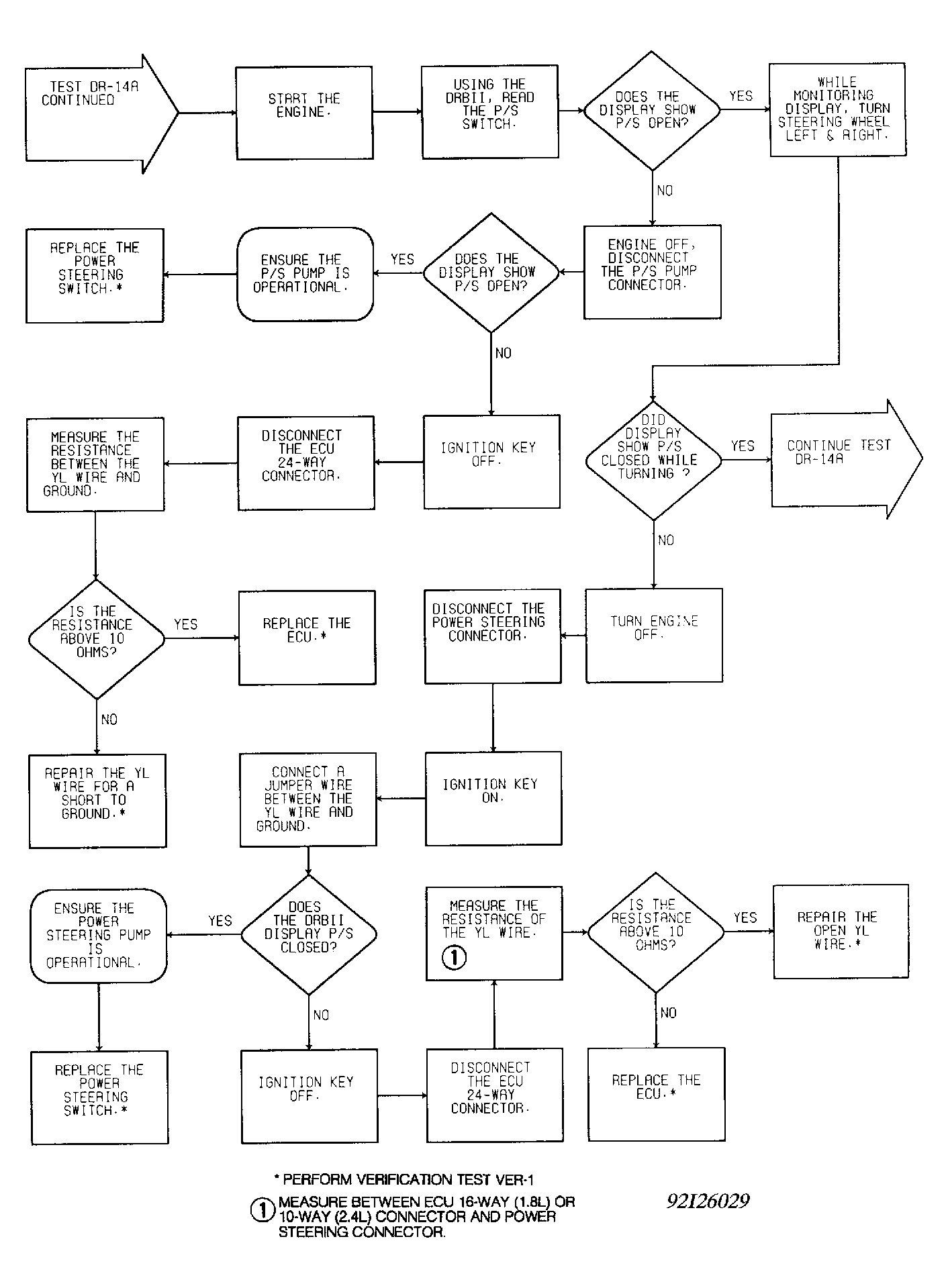

Fig 2: Test DR-14A Flow Chart (2 Of 4) No Fault Code Switch Tests
G92I26029

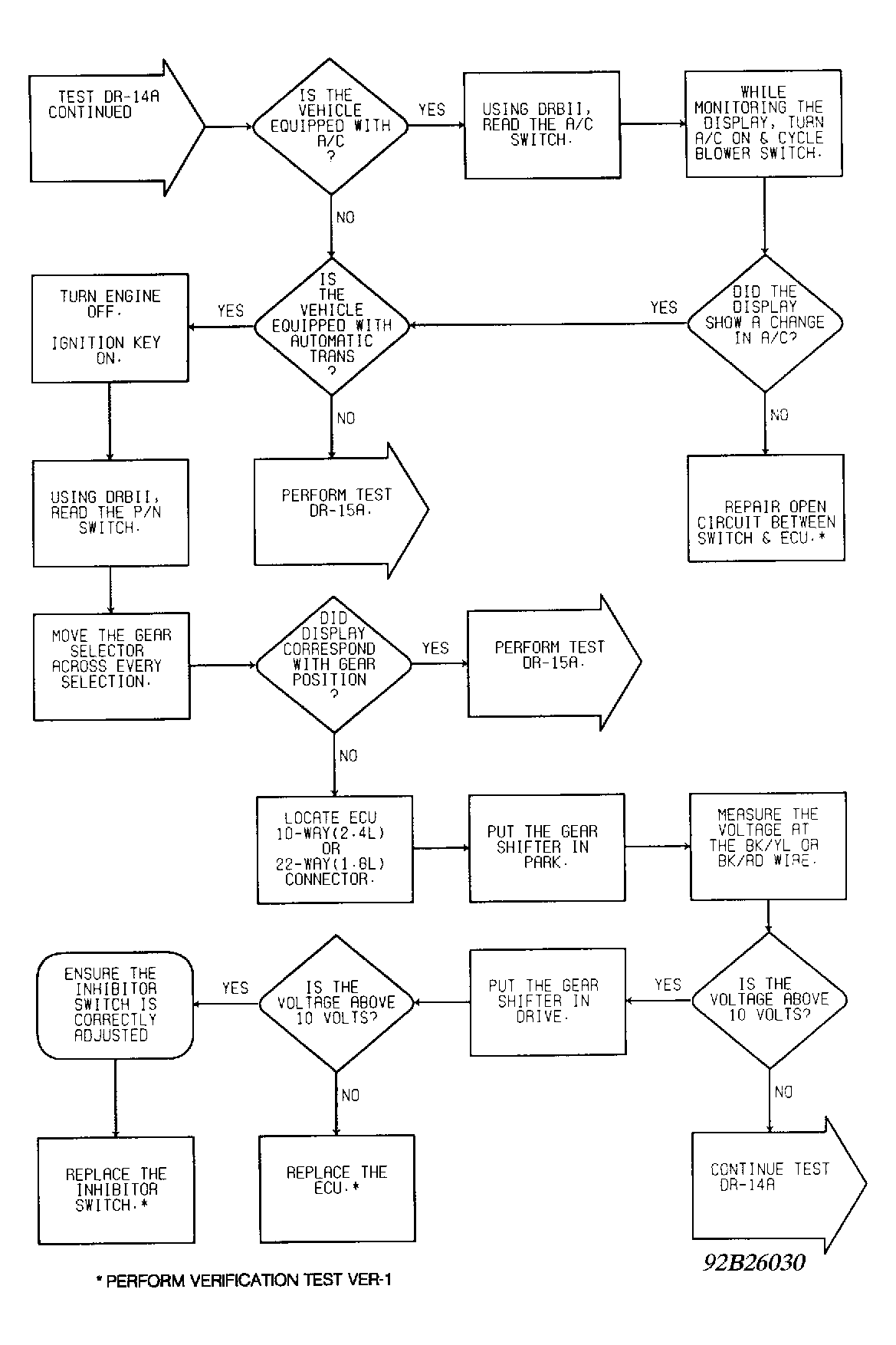

Fig 3: Test DR-14A Flow Chart (3 Of 4) No Fault Code Switch Tests
G92B26030

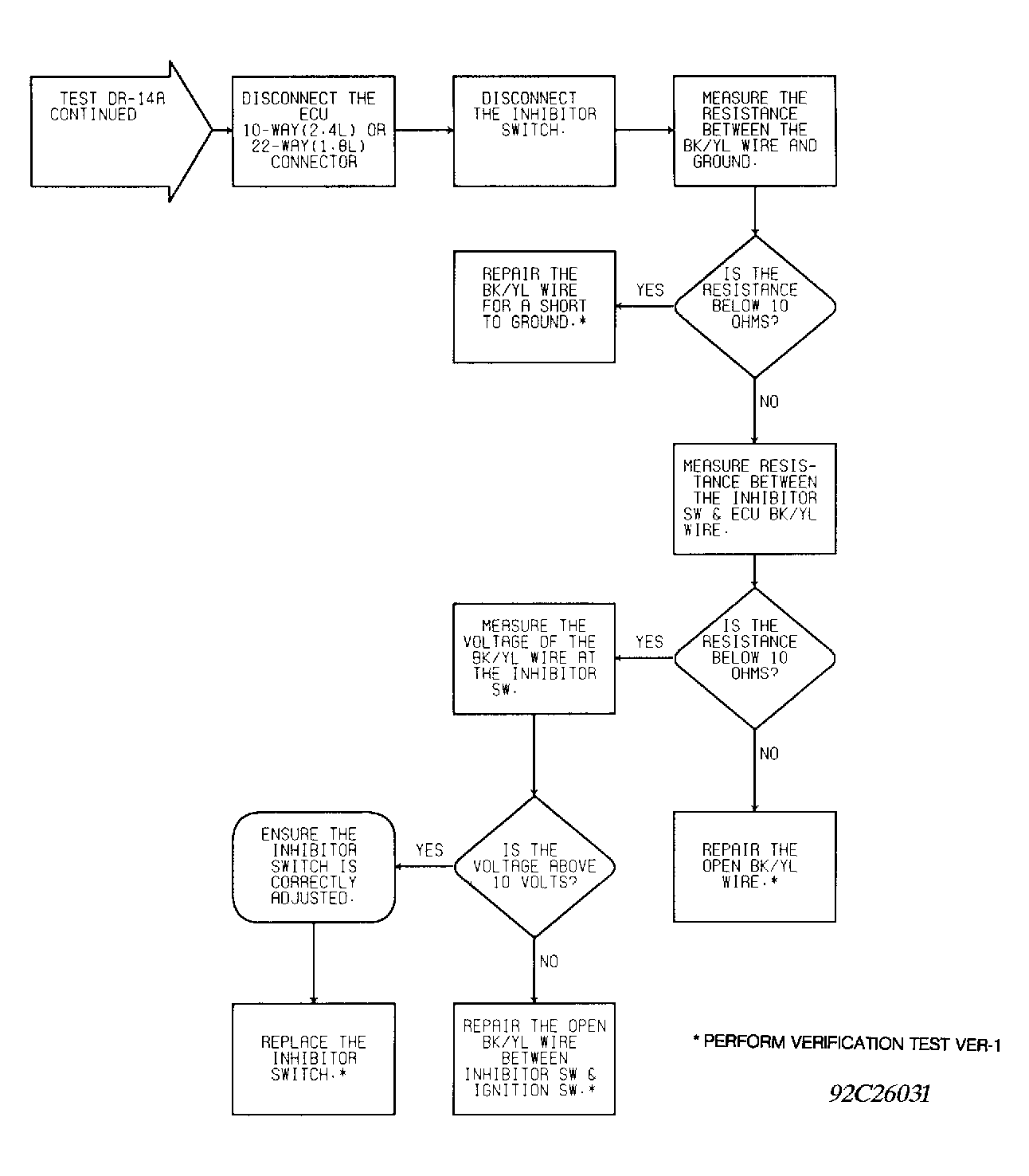

Fig 4: Test DR-14A Flow Chart (4 Of 4) No Fault Code Switch Tests
G92C26031
