Remote Controlled Mirror Assembly

For remote controlled mirror assembly testing, see Fig 1 .

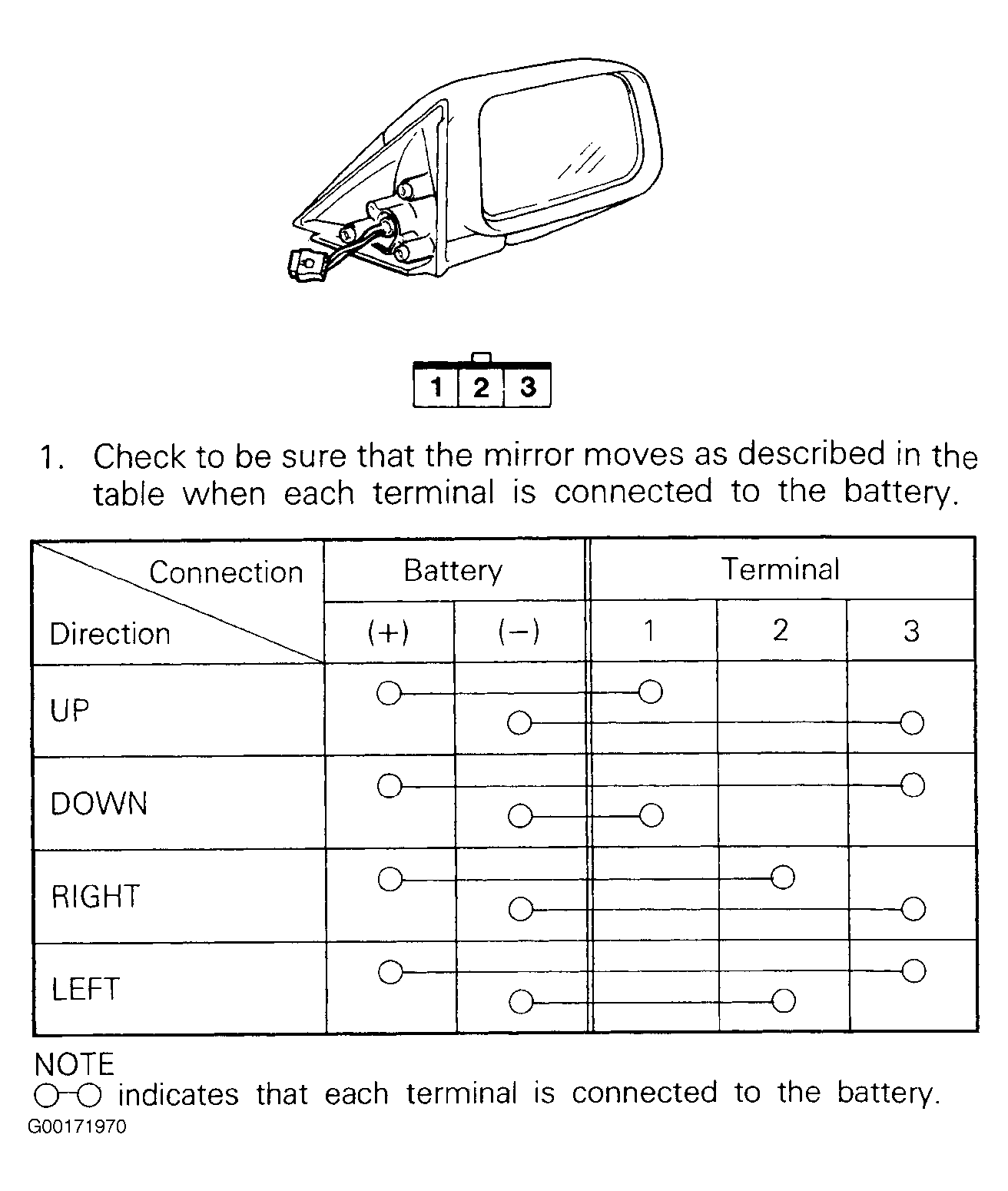

Fig 1: Testing Remote Controlled Mirror Assembly
G00171970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
