Remote Controlled Mirror Switch
For remote controlled mirror switch tests, see
Fig 1
.

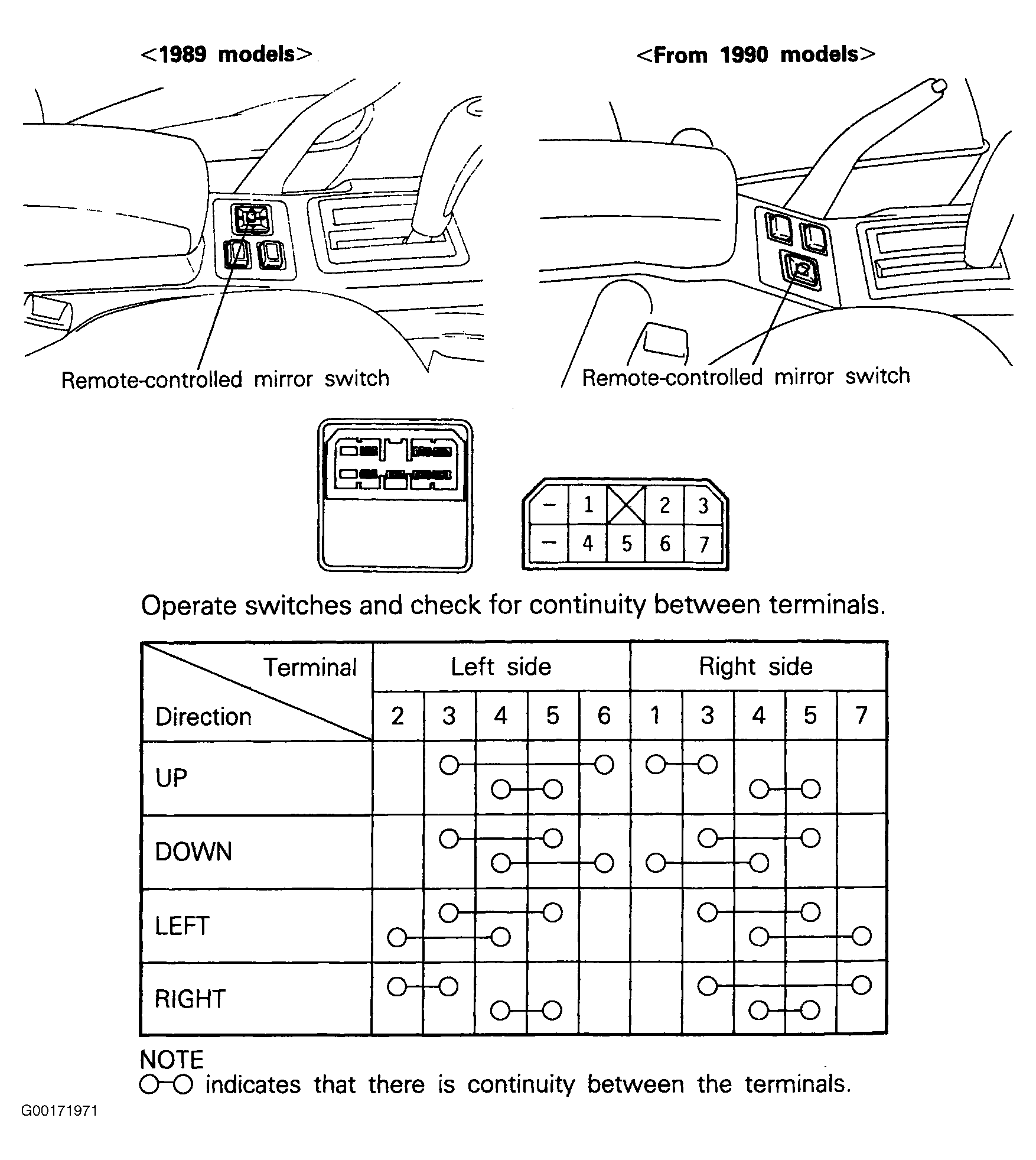

Fig 1: Testing Remote Controlled Mirror Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
