Power Window Main Switch

For test procedures, see Fig 1 .

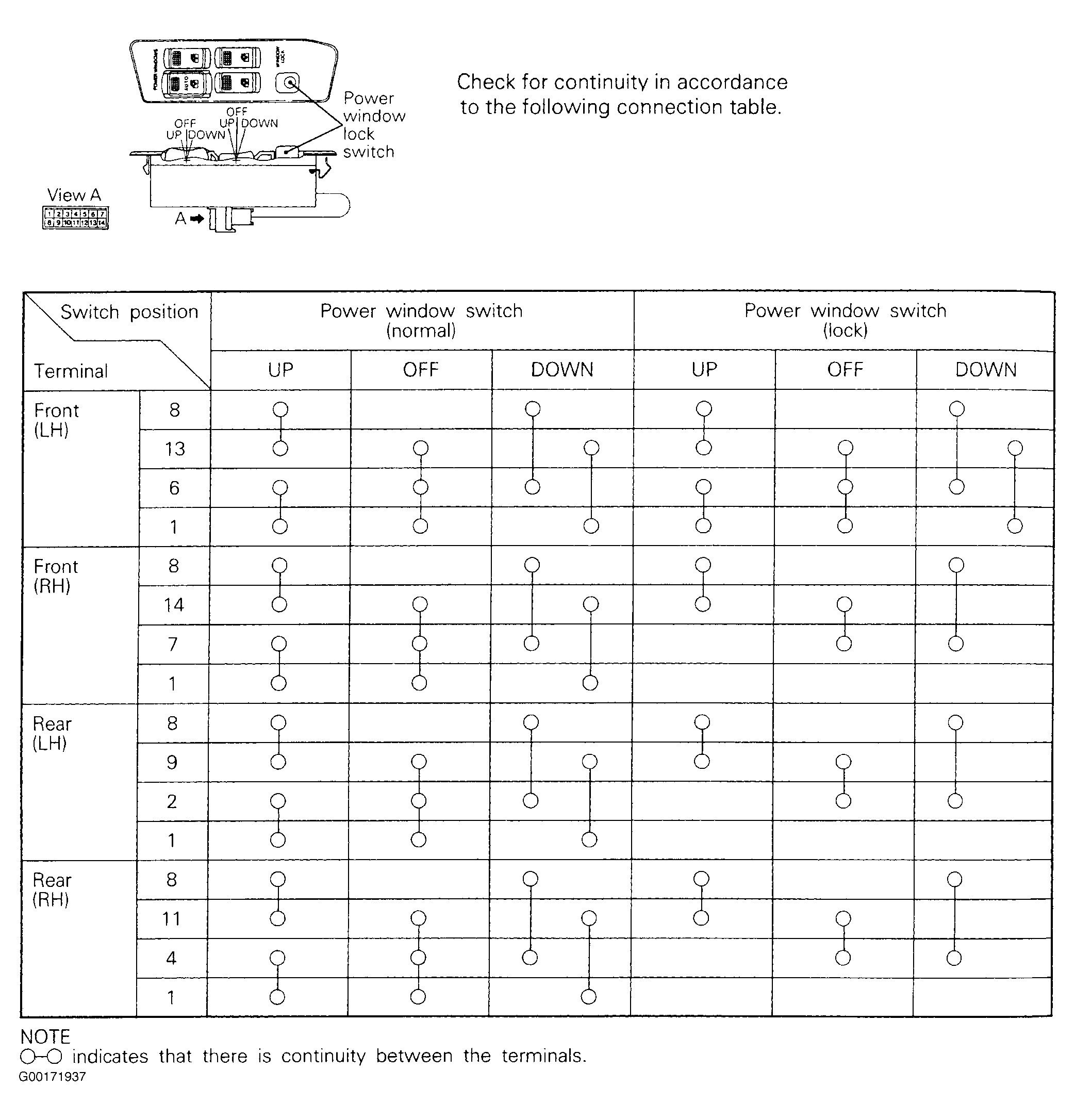

Fig 1: Testing Power Window Main Switch
G00171937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
