Power Window Sub Switch
For test procedures, see
Fig 1
.

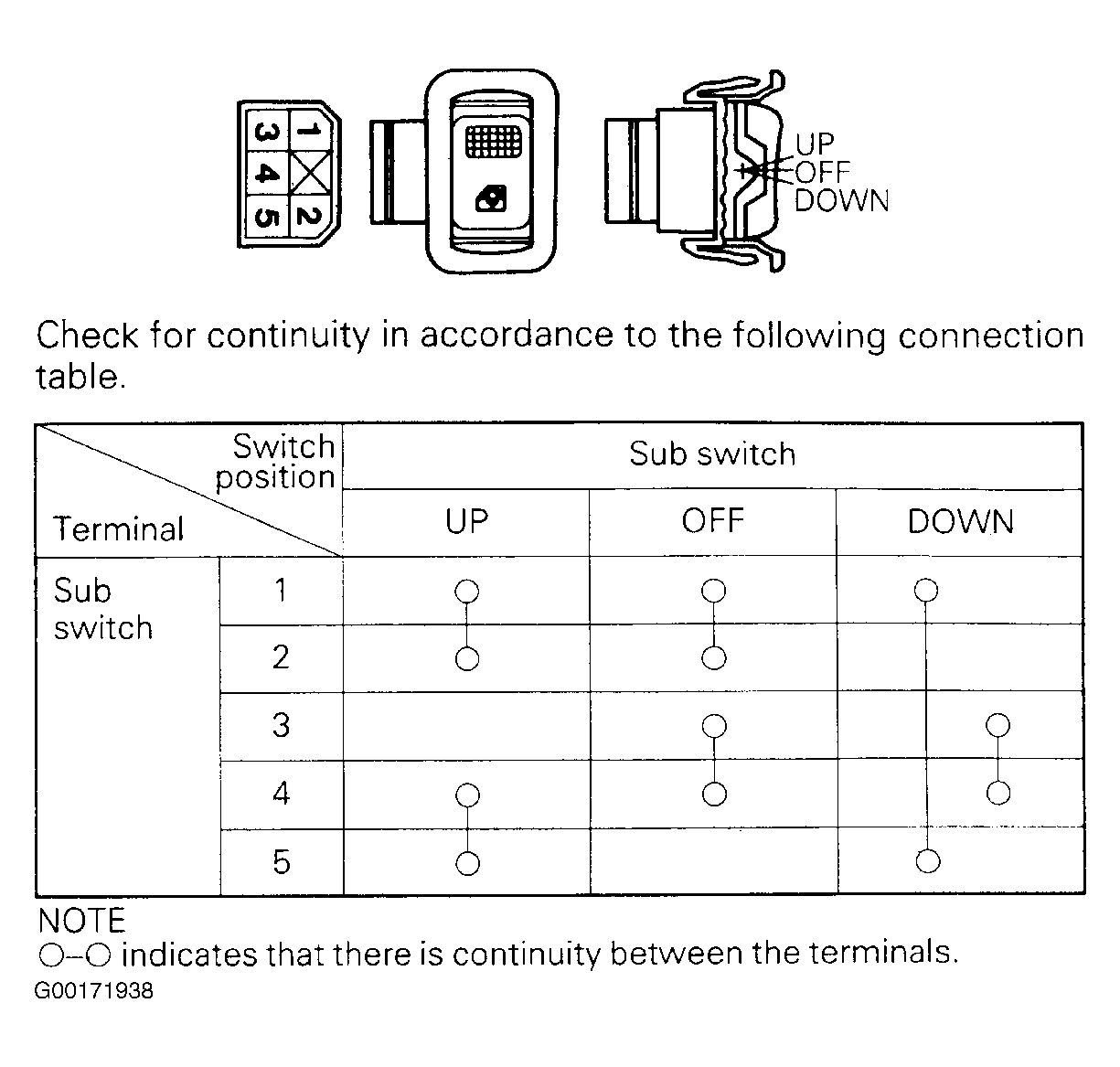

Fig 1: Power Window Sub Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
