Test No. 2: Ignition Switch Input Circuit

A condition for operation of this system is the sending of HIGH-level signals to the electronic control unit when the ignition switch is switched to the ACC position or the ON position. See Fig 1 .

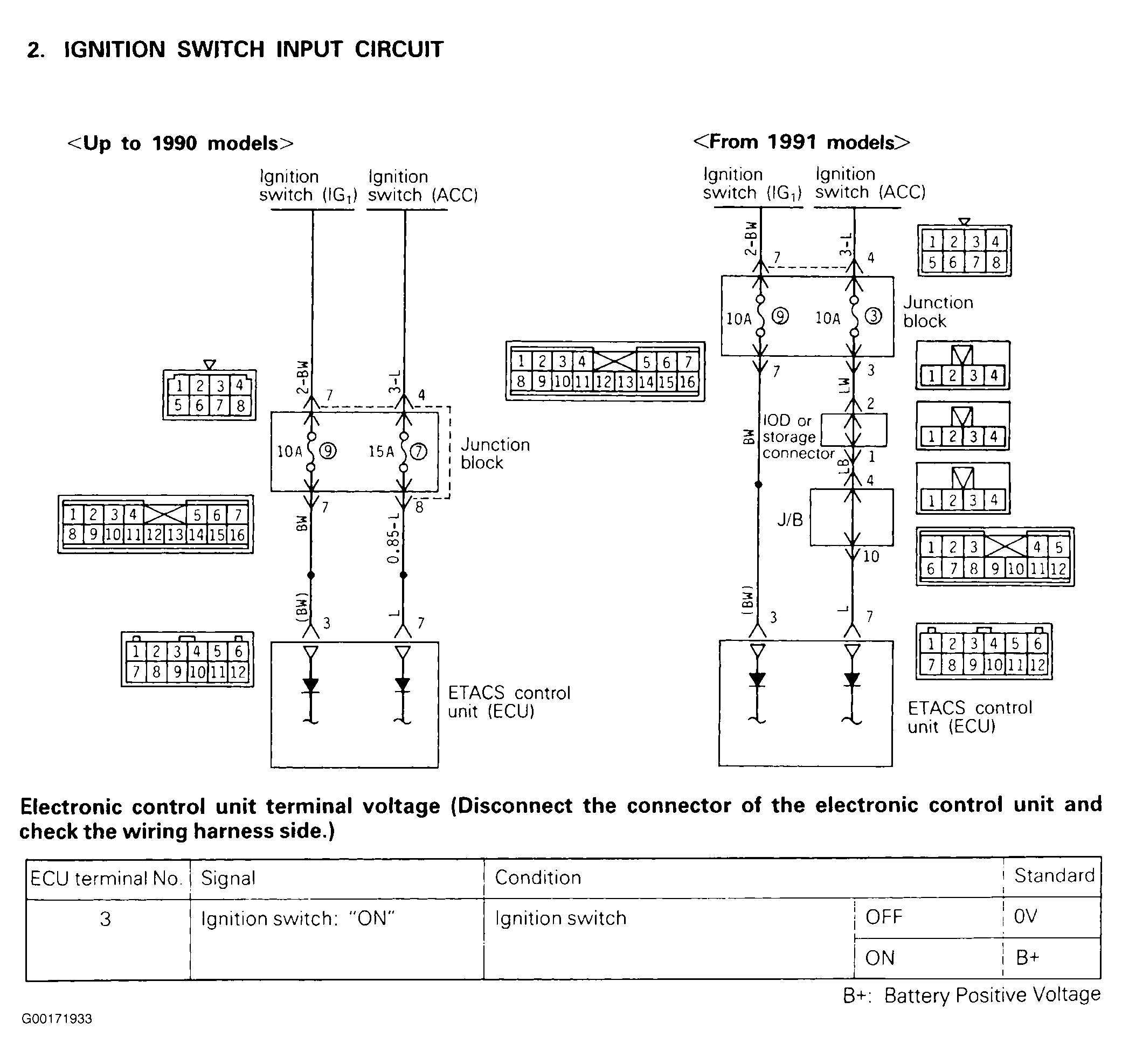

Fig 1: Test No. 2: Ignition Switch Input Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
