Dr-11: Code 24, Vehicle Speed Sensor Circuit

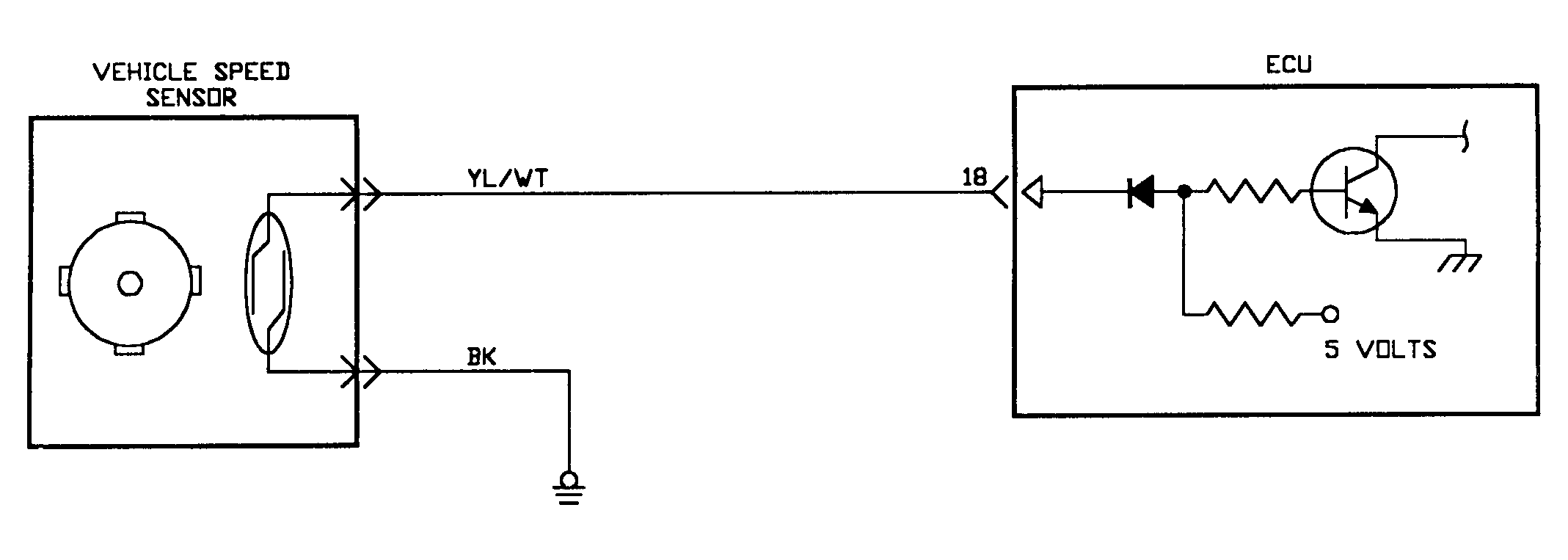

Fig 1: Test DR-11 Code 24 Schematic - 2.4L Vehicle Speed Sensor Circuit
G90B19993

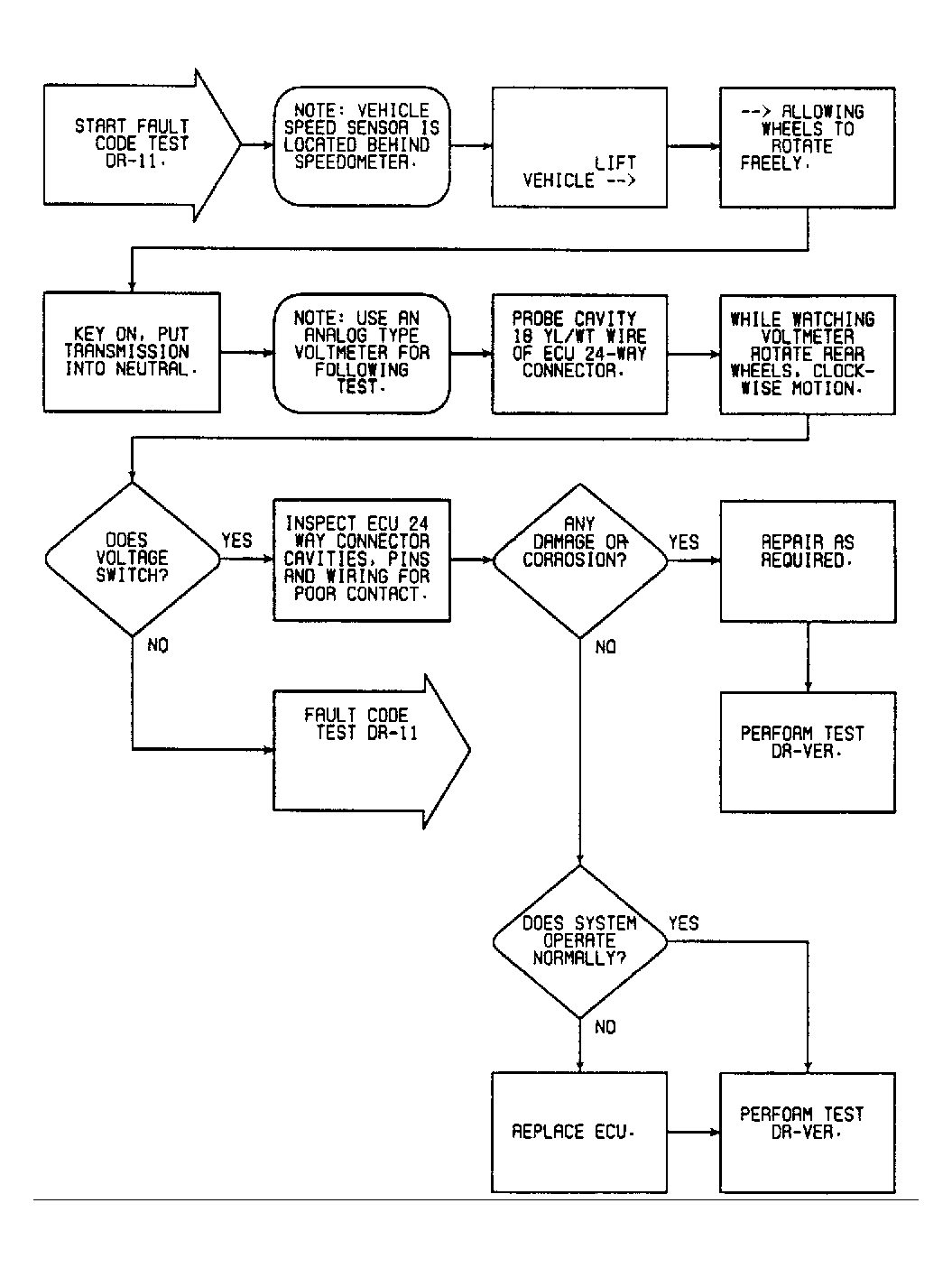

Fig 2: Test DR-11 Code 24 Flow Chart - 2.4L (1 of 2) Vehicle Speed Sensor Circuit
G90A20040

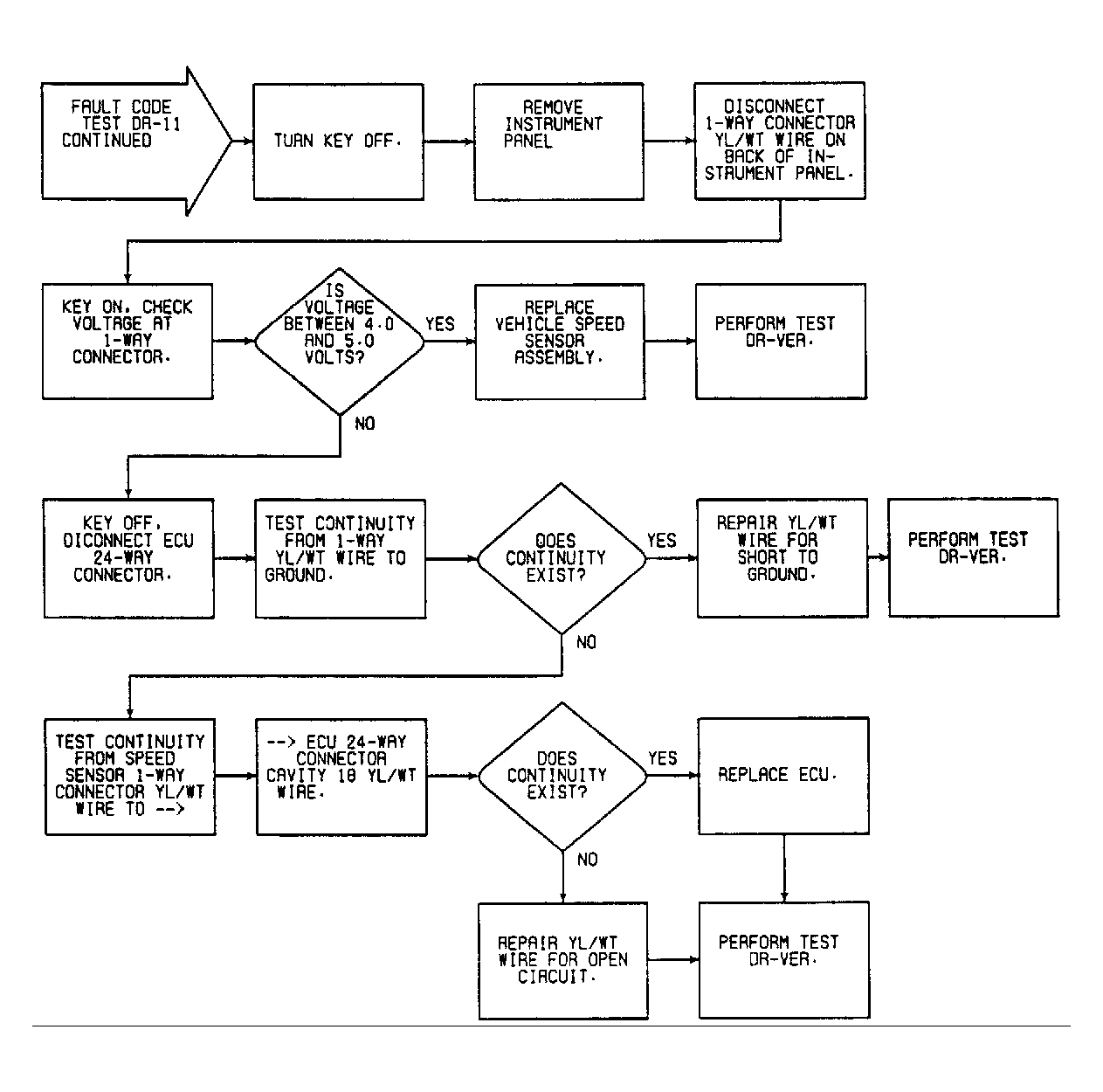

Fig 3: Test DR-11 Code 24 Flow Chart - 2.4L (2 of 2) Vehicle Speed Sensor Circuit
G90B20041
