Dr-12: Code 25, Barometric Pressure Sensor Circuit

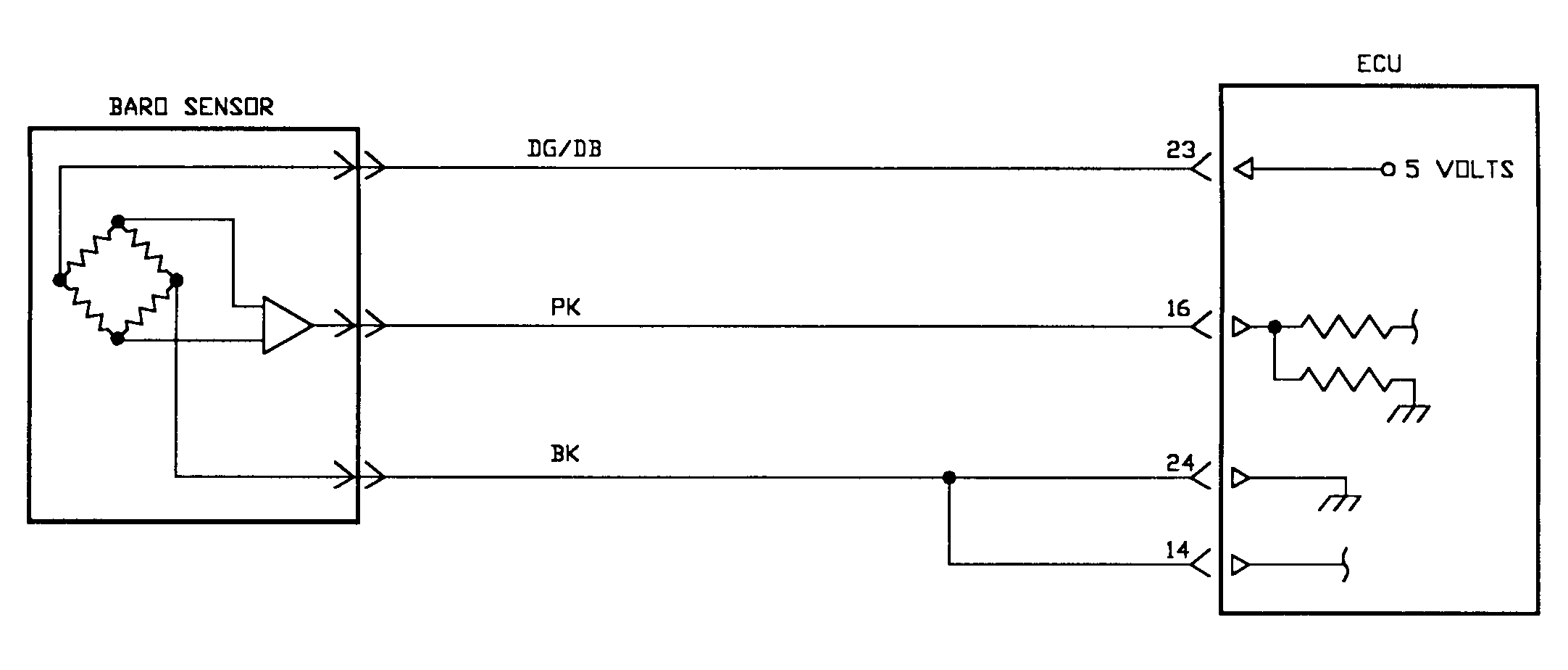

Fig 1: Test DR-12 Code 25 Schematic - 2.4L Barometric Pressure Sensor Circuit

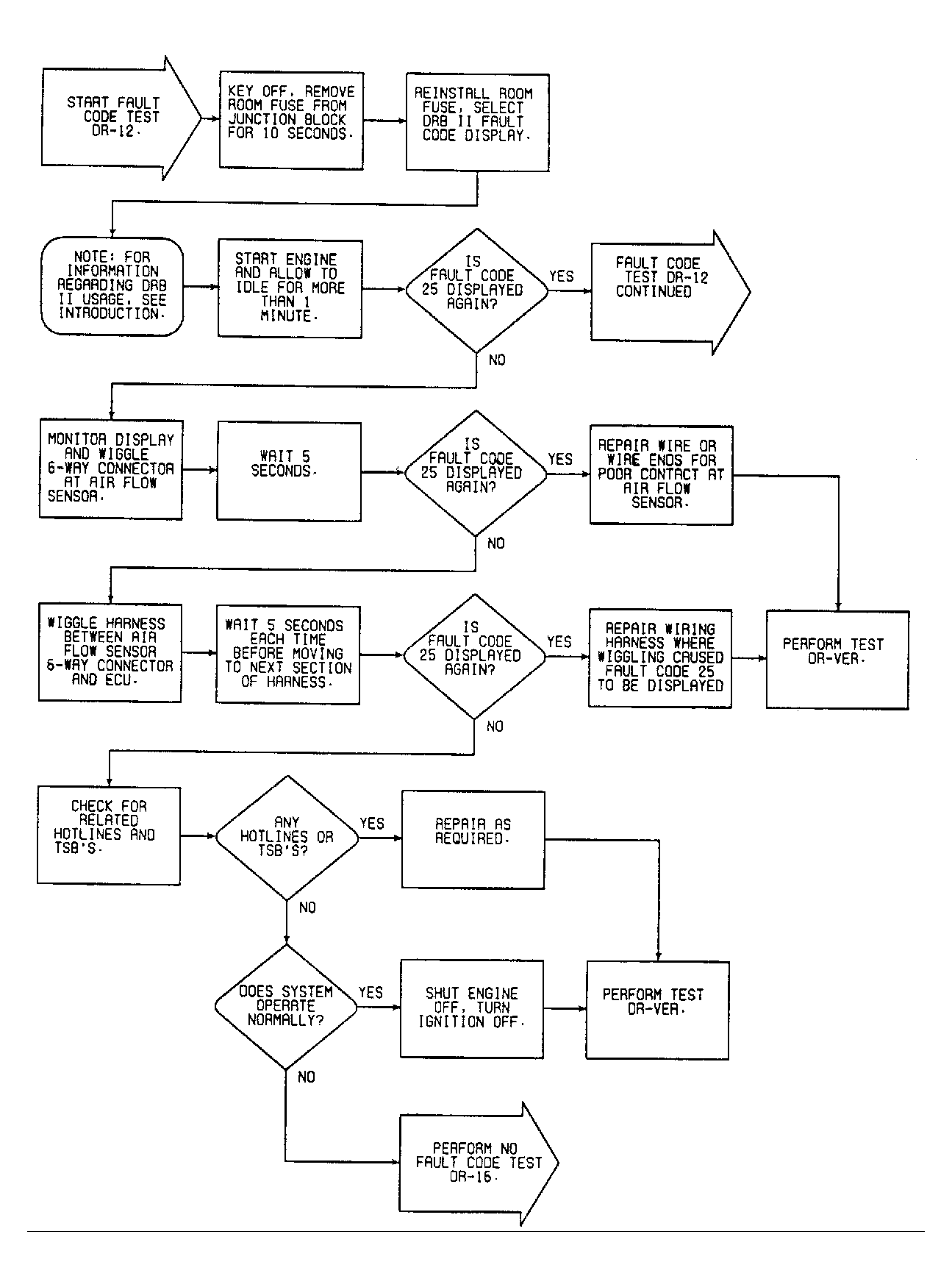

Fig 2: Test DR-12 Code 25 Flow Chart - 2.4L (1 of 2) Barometric Pressure Sensor Circuit

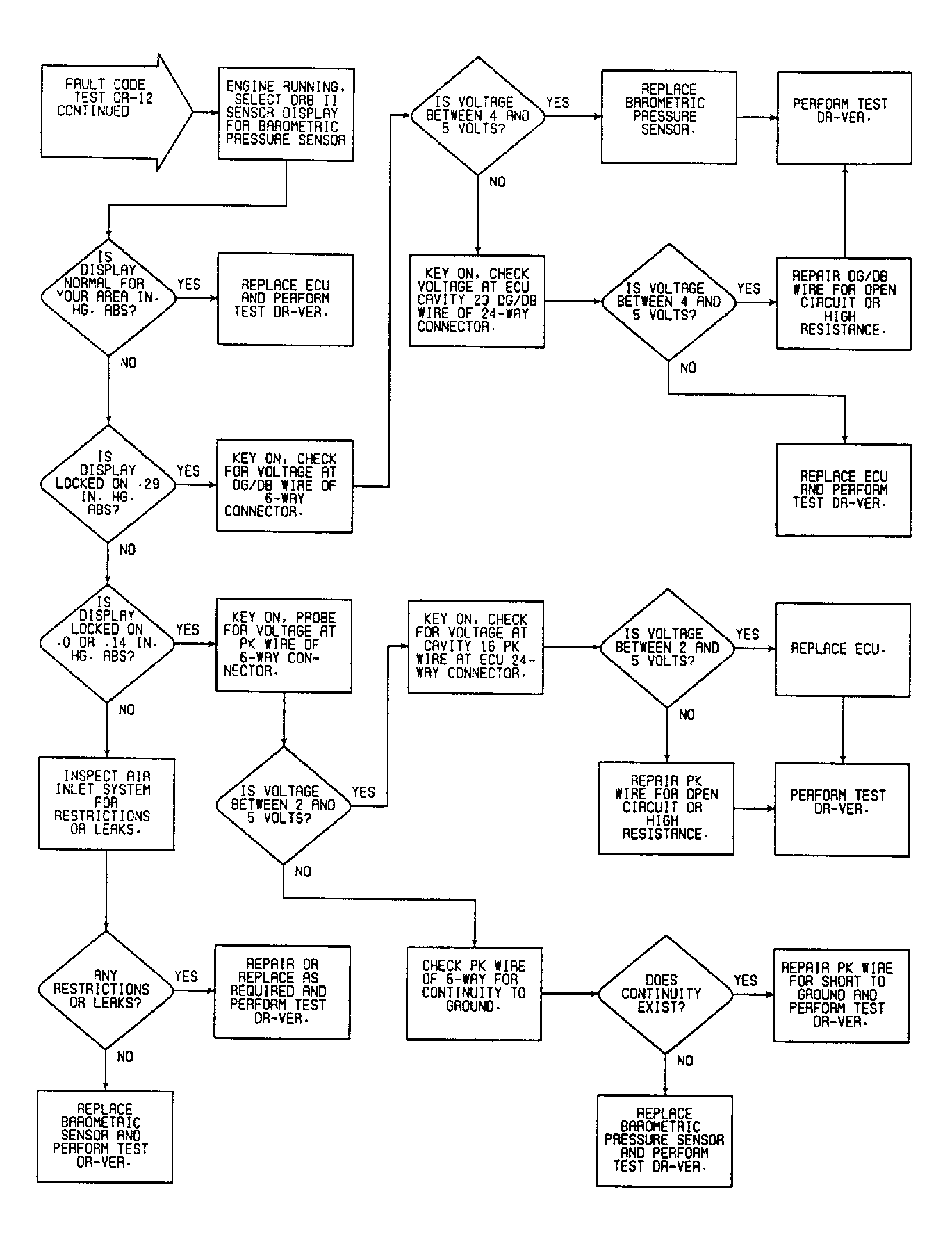

Fig 3: Test DR-12 Code 25 Flow Chart - 2.4L (2 of 2) Barometric Pressure Sensor Circuit
