Dr-3: Code 11, Oxygen Sensor Circuit

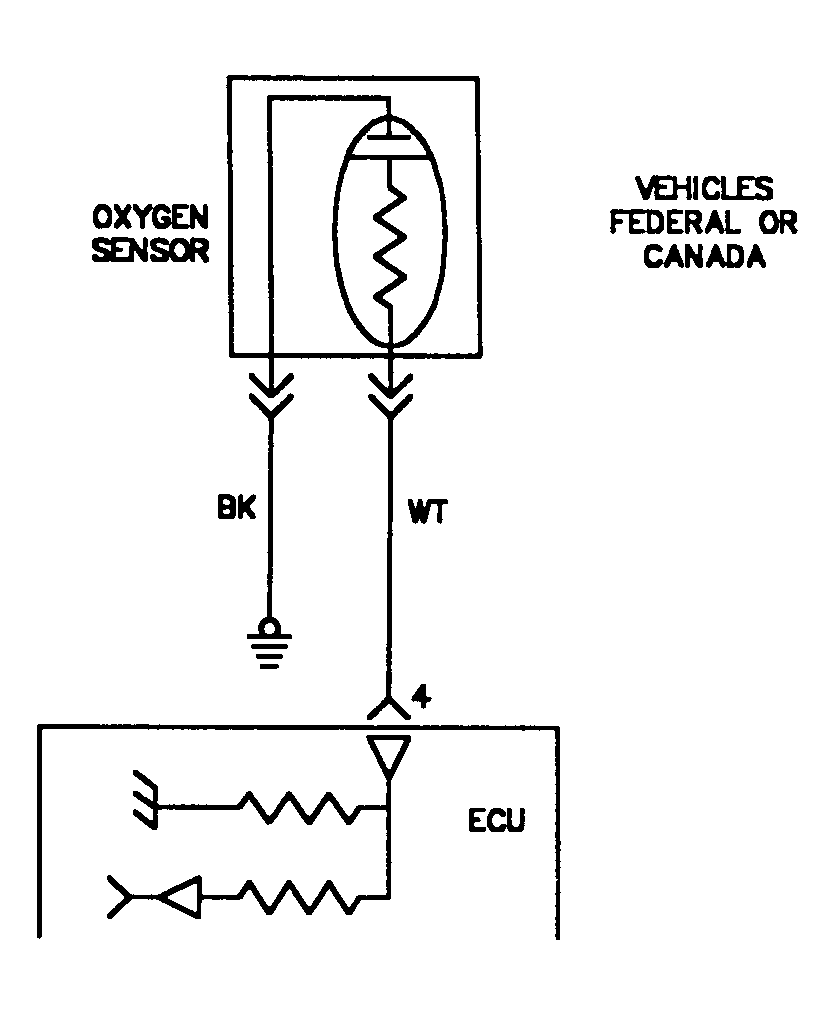

Fig 1: Test DR-3 Code 11 Schematic - 2.4L Oxygen Sensor Circuit
G91J17268

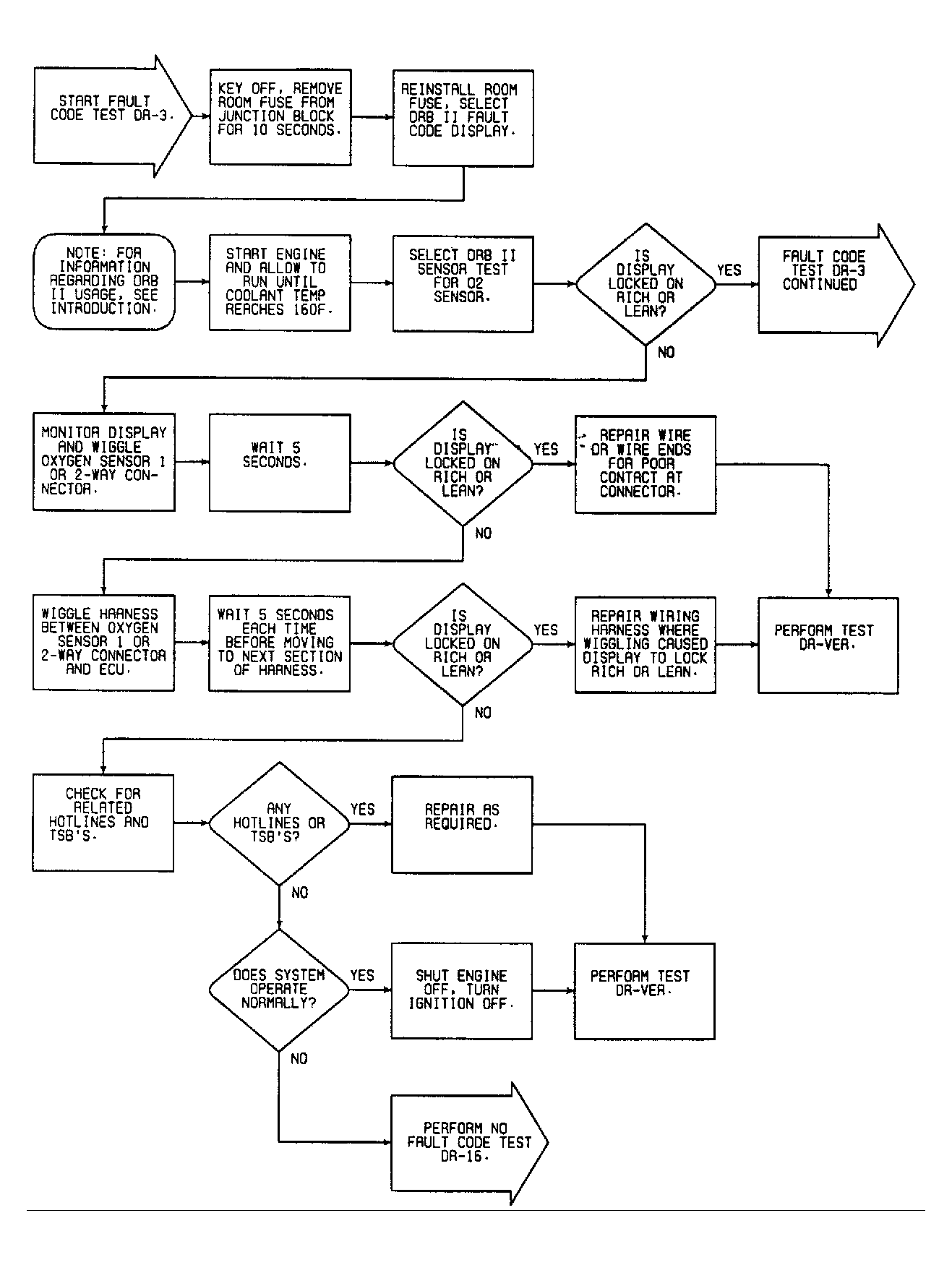

Fig 2: Test DR-3 Code 11 Flow Chart - 2.4L (1 of 2) Oxygen Sensor Circuit
G90I20022

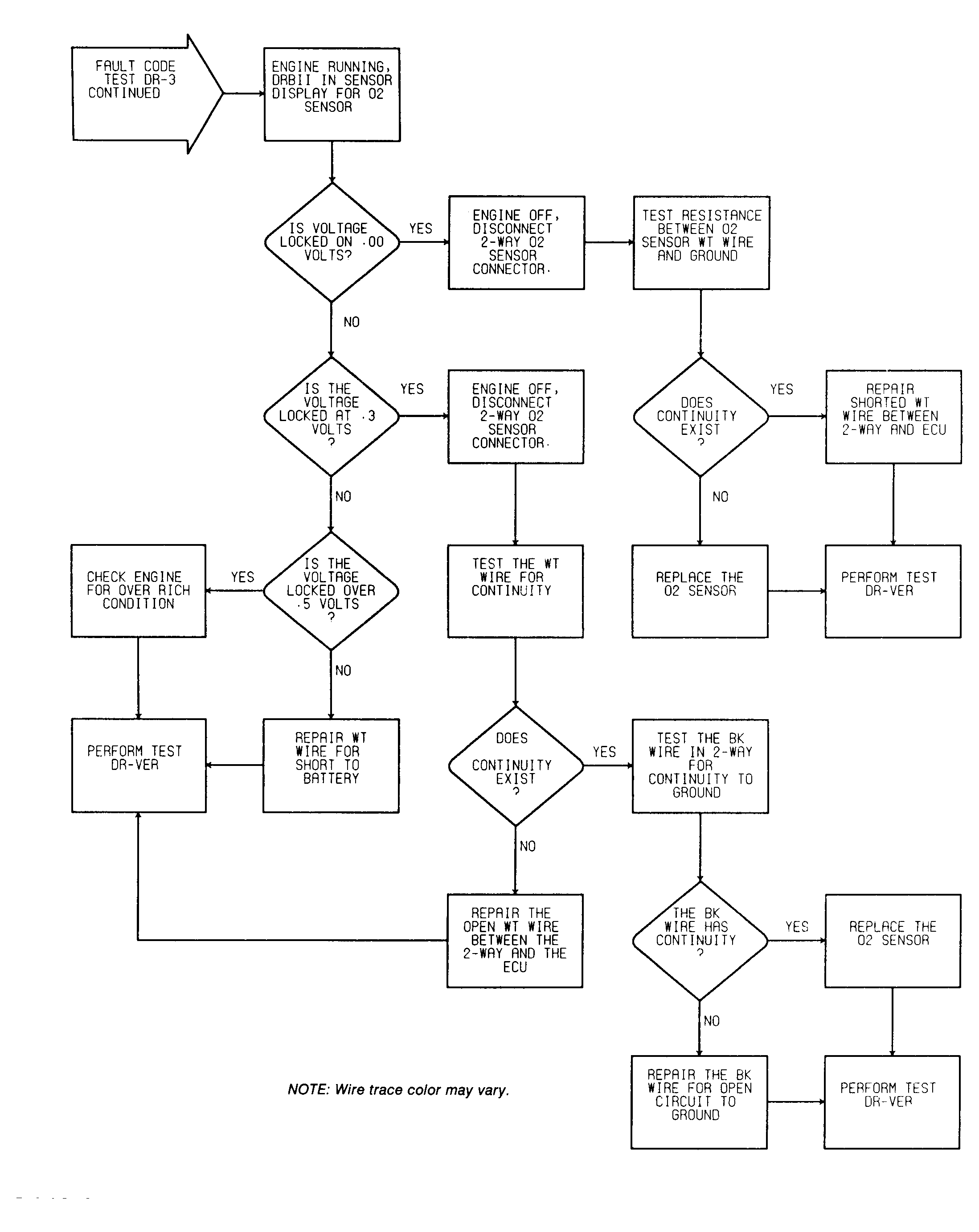

Fig 3: Test DR-3 Code 11 Flow Chart - 2.4L (2 of 2) Oxygen Sensor Circuit
G91A16469
