Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Blocks

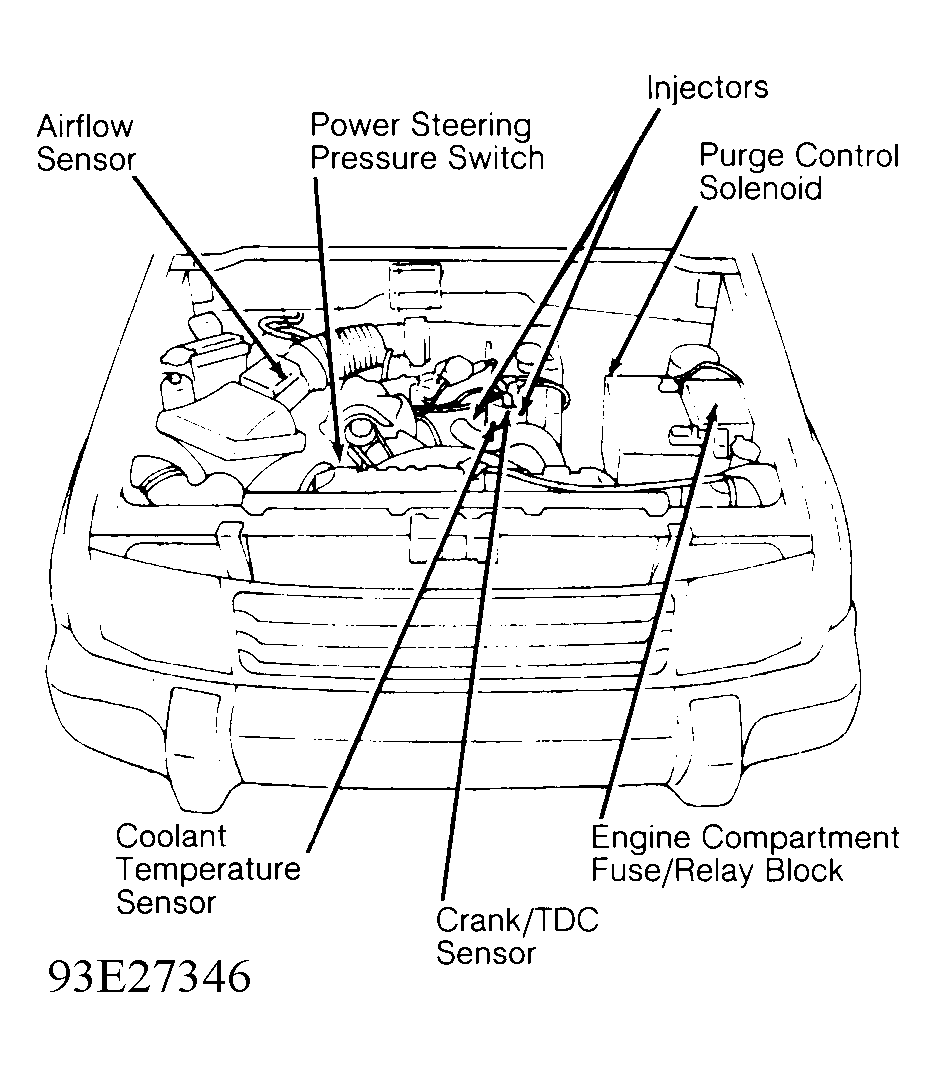

Engine Compartment On left inner fender panel, behind battery. See Figure .
Engine Compartment Relay Block On left inner fender panel, behind battery. See Figure .

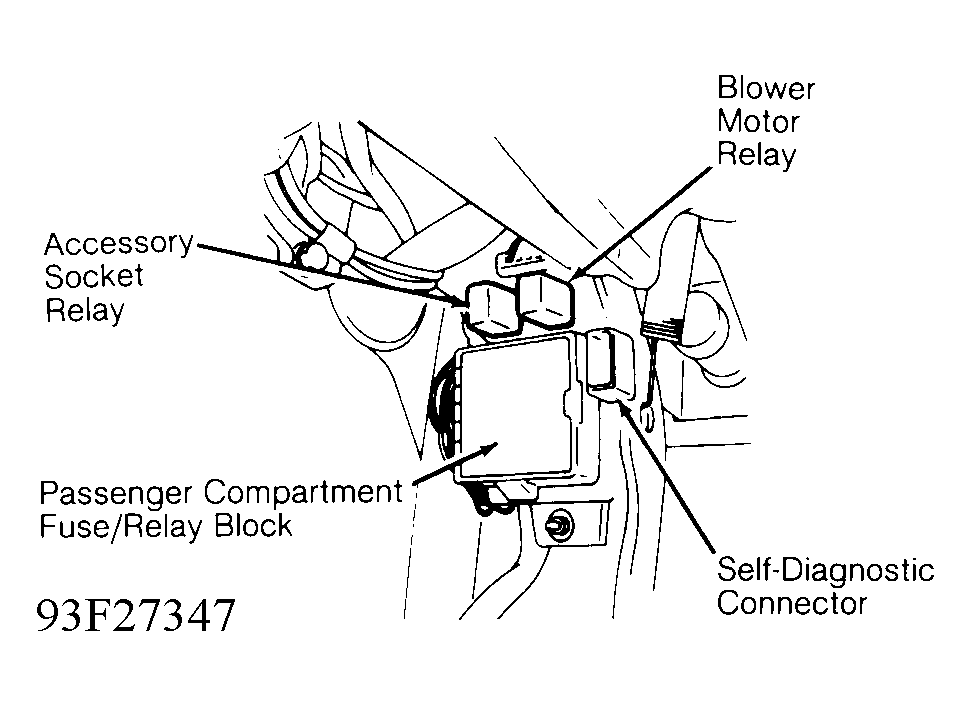

Passenger Compartment Behind left side of dash. See Figure .
Fusible Links In engine compartment fuse/relay block. See Figure .
