Dr-14: Code 42, Fuel Pump Control Circuit

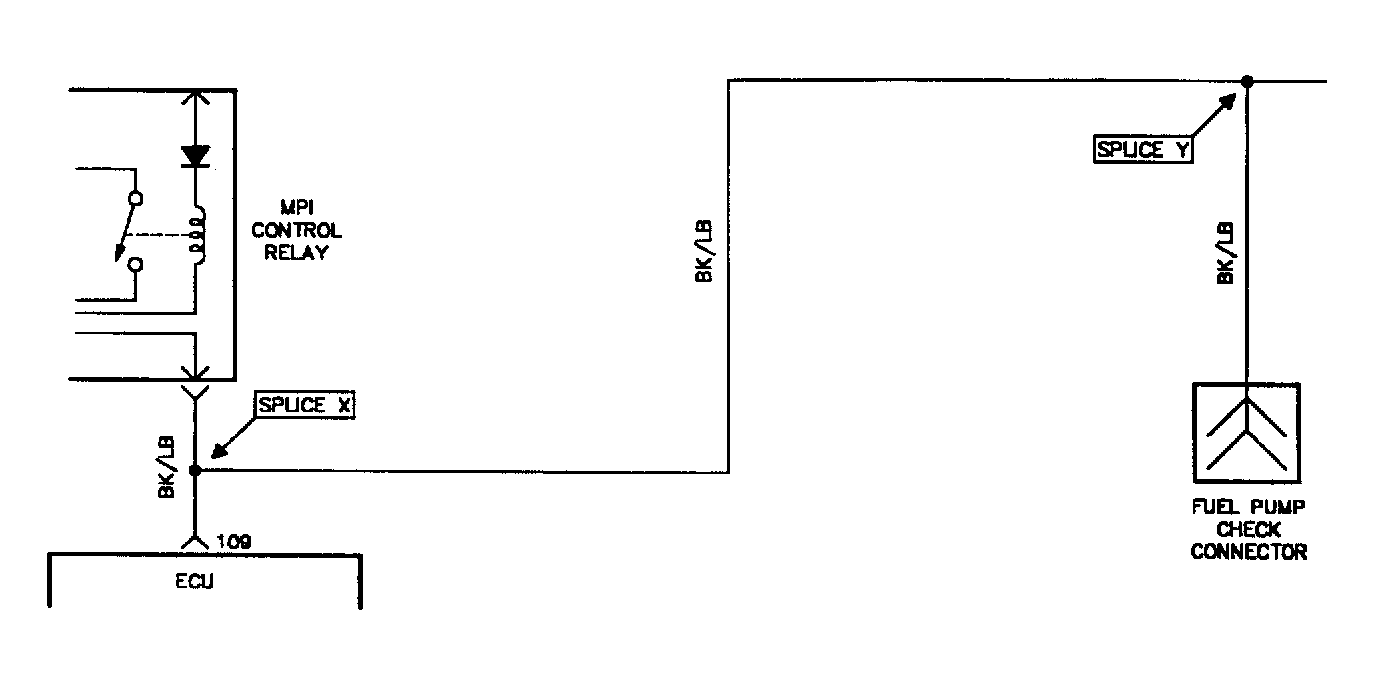

Fig 1: Test DR-14 Code 42 Schematic - 2.4L Fuel Pump Control Circuit
G90F19997

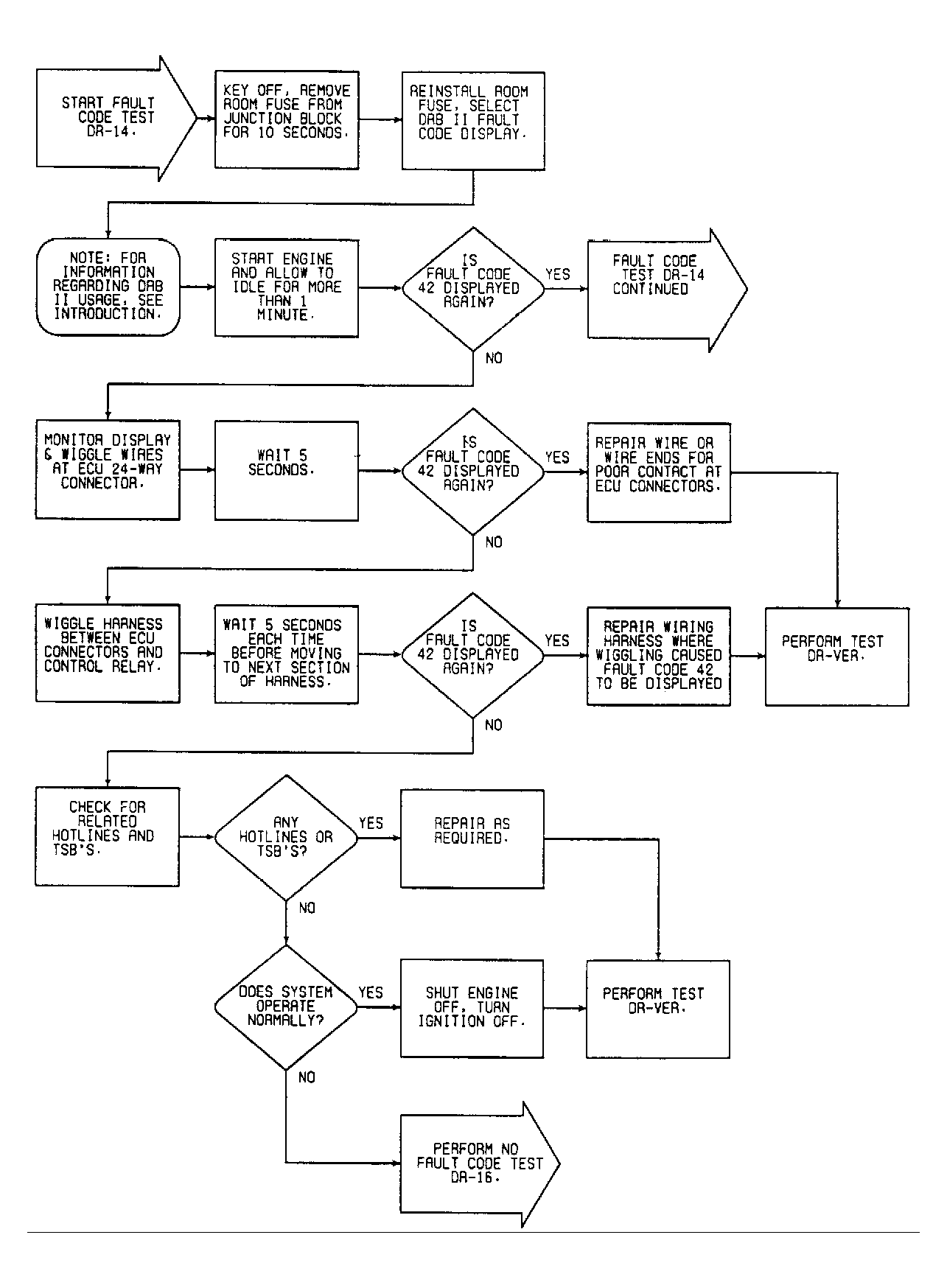

Fig 2: Test DR-14 Code 42 Flow Chart - 2.4L (1 of 2) Fuel Pump Control Circuit
G90J20049

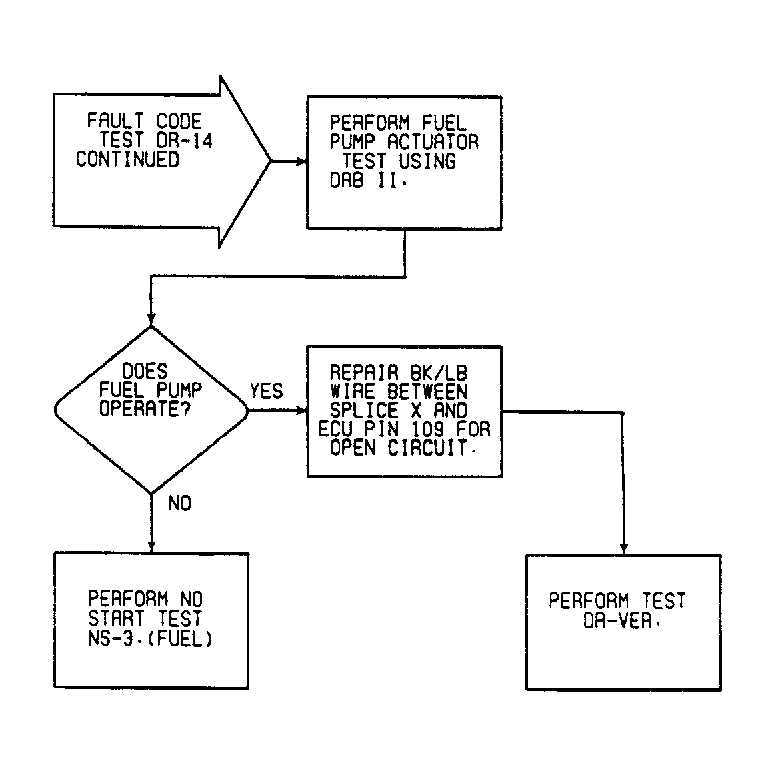

Fig 3: Test DR-14 Code 42 Flow Chart - 2.4L (2 of 2) Fuel Pump Control Circuit
G90D20050
