Dr-6: Code 14, Throttle Position Sensor Circuit

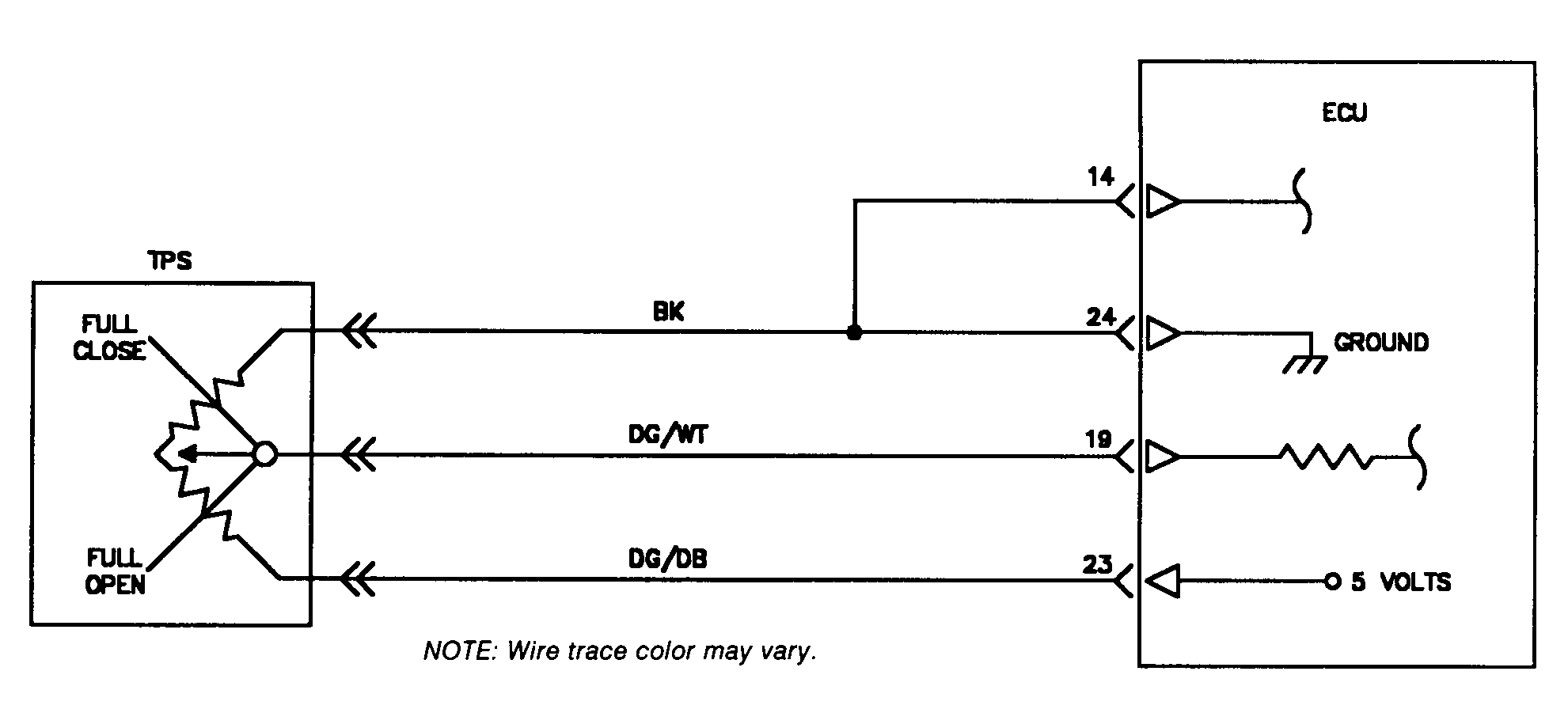

Fig 1: Test DR-6 Code 14 Schematic - 2.4L Throttle Position Sensor Circuit

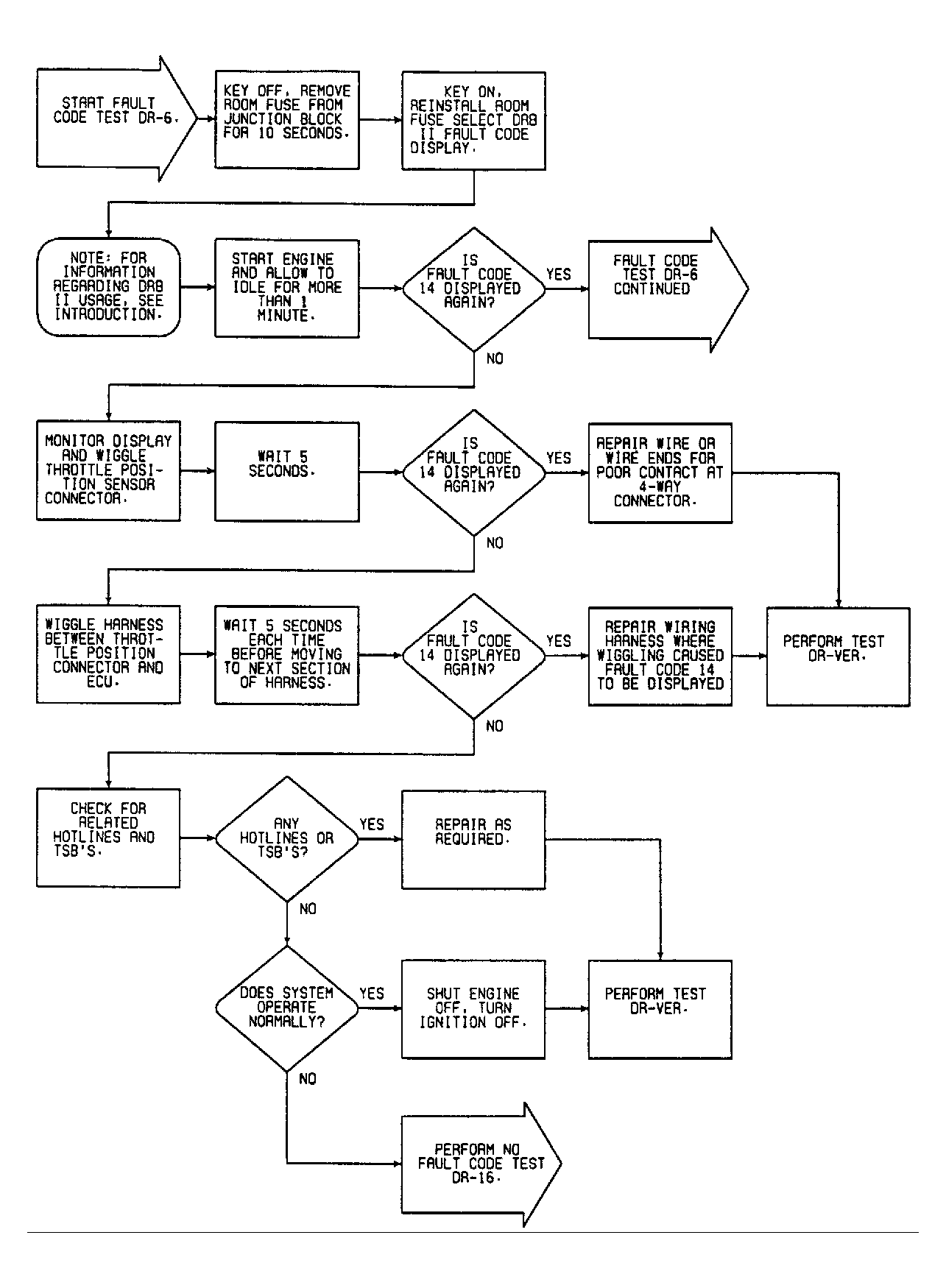

Fig 2: Test DR-6 Code 14 Flow Chart - 2.4L (1 of 3) Throttle Position Sensor Circuit

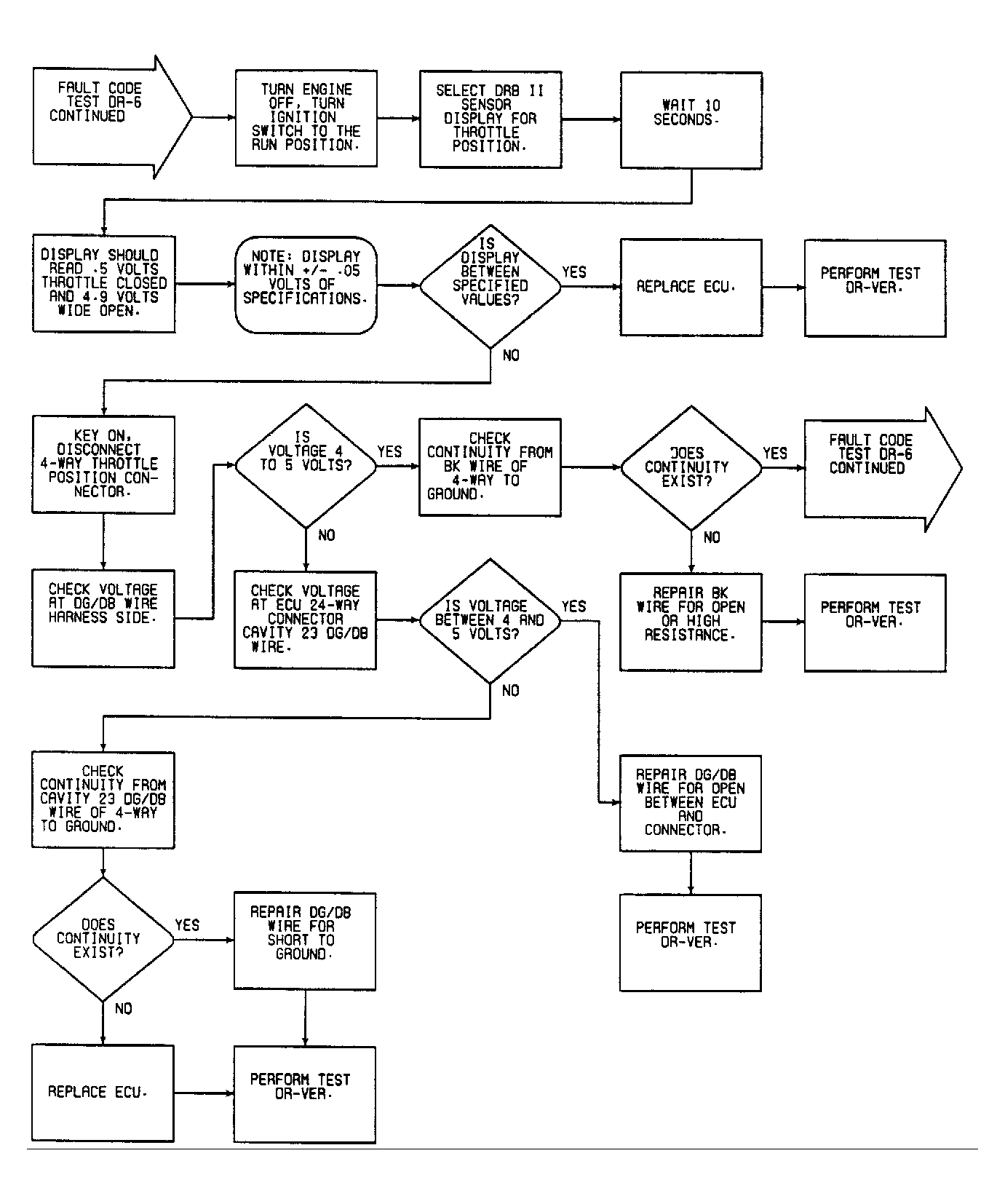

Fig 3: Test DR-6 Code 14 Flow Chart - 2.4L (2 of 3) Throttle Position Sensor Circuit

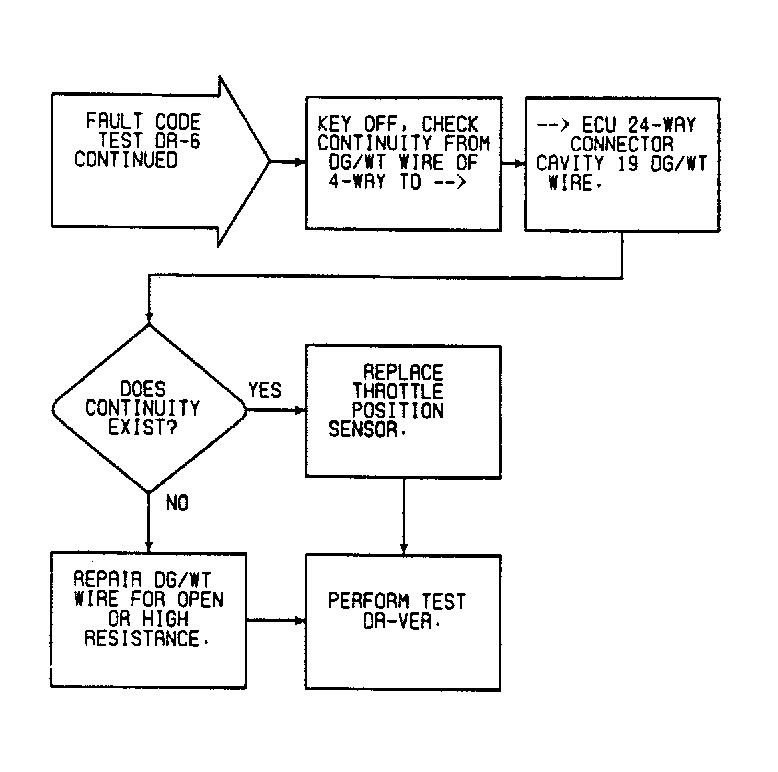

Fig 4: Test DR-6 Code 14 Flow Chart - 2.4L (3 of 3) Throttle Position Sensor Circuit
