NS-1: Testing Ignition Circuit

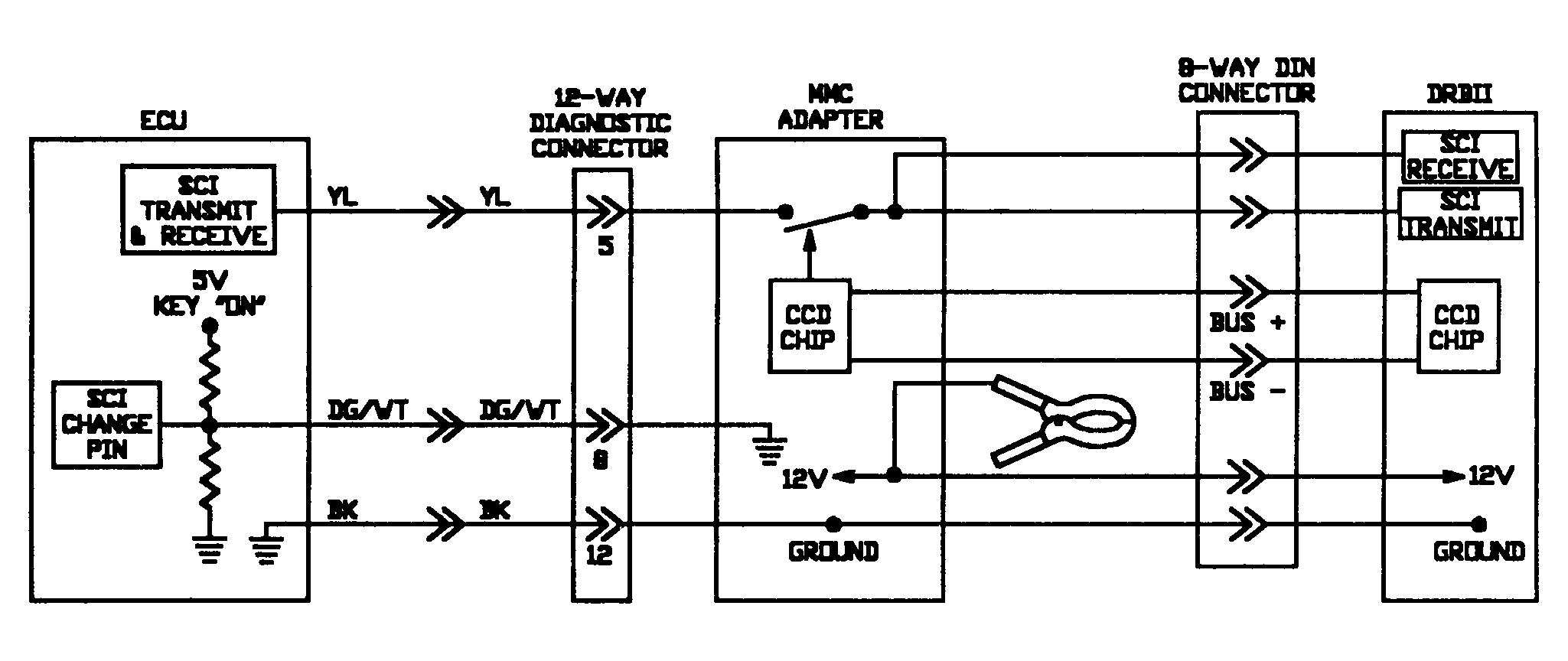

Fig 1: Test NS-1 Test Schematic - 2.4L (1 of 5) Testing Ignition Circuit

Fig 2: Test NS-1 Test Schematic - 2.4L (2 of 5) Testing Ignition Circuit

Fig 3: Test NS-1 Test Schematic - 2.4L (3 of 5) Testing Ignition Circuit

Fig 4: Test NS-1 Test Schematic - 2.4L (4 of 5) Testing Ignition Circuit

Fig 5: Test NS-1 Test Schematic - 2.4L (5 of 5) Testing Ignition Circuit

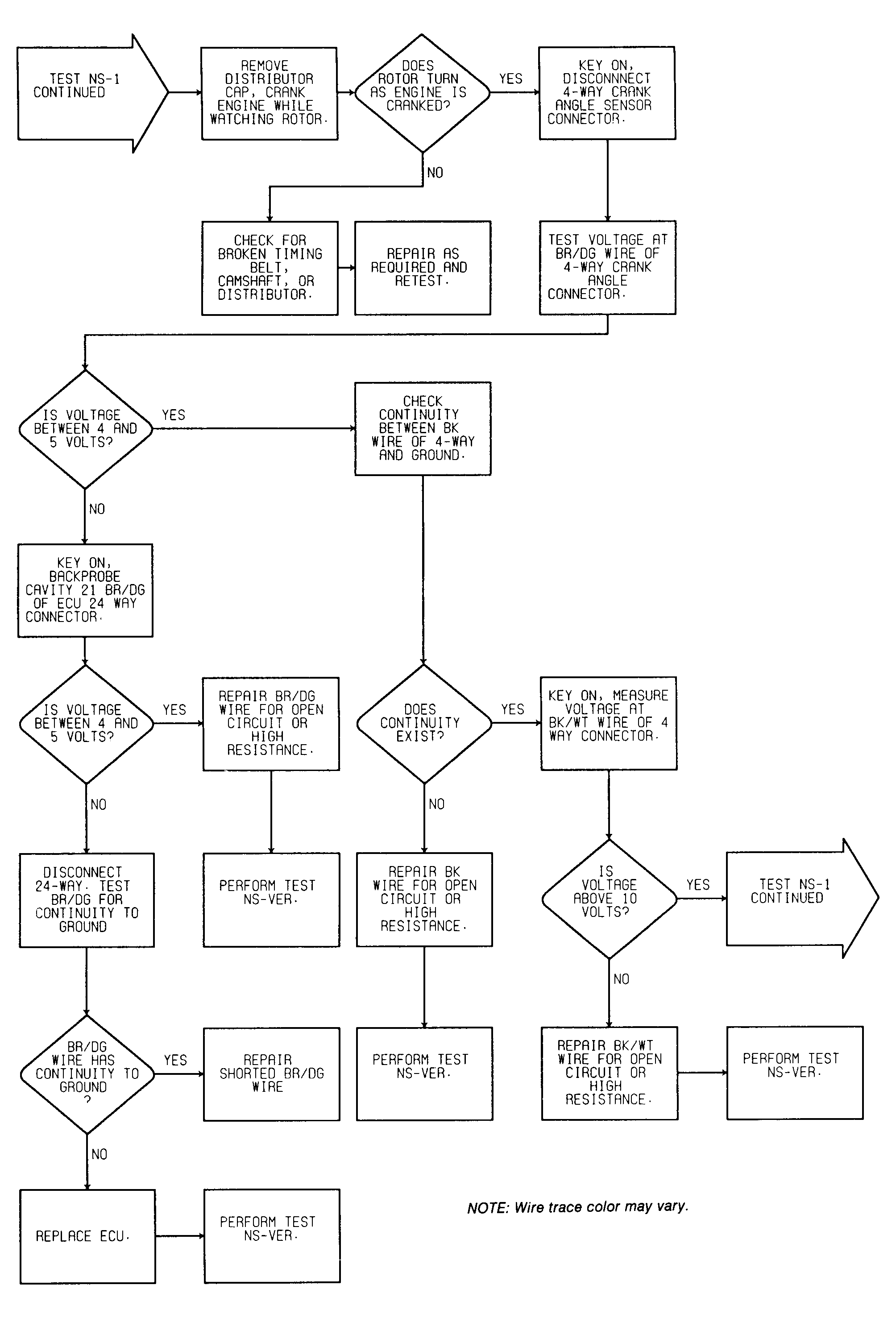

Fig 6: Test NS-1 Test Flow Chart - 2.4L (1 of 6) Testing Ignition Circuit

Fig 7: Test NS-1 Test Flow Chart - 2.4L (2 of 6) Testing Ignition Circuit

Fig 8: Test NS-1 Test Flow Chart - 2.4L (3 of 6) Testing Ignition Circuit

Fig 9: Test NS-1 Test Flow Chart - 2.4L (4 of 6) Testing Ignition Circuit

Fig 10: Test NS-1 Test Flow Chart - 2.4L (5 of 6) Testing Ignition Circuit

Fig 11: Test NS-1 Test Flow Chart - 2.4L (6 of 6) Testing Ignition Circuit
