NS-4: Checking Control Relay Circuit

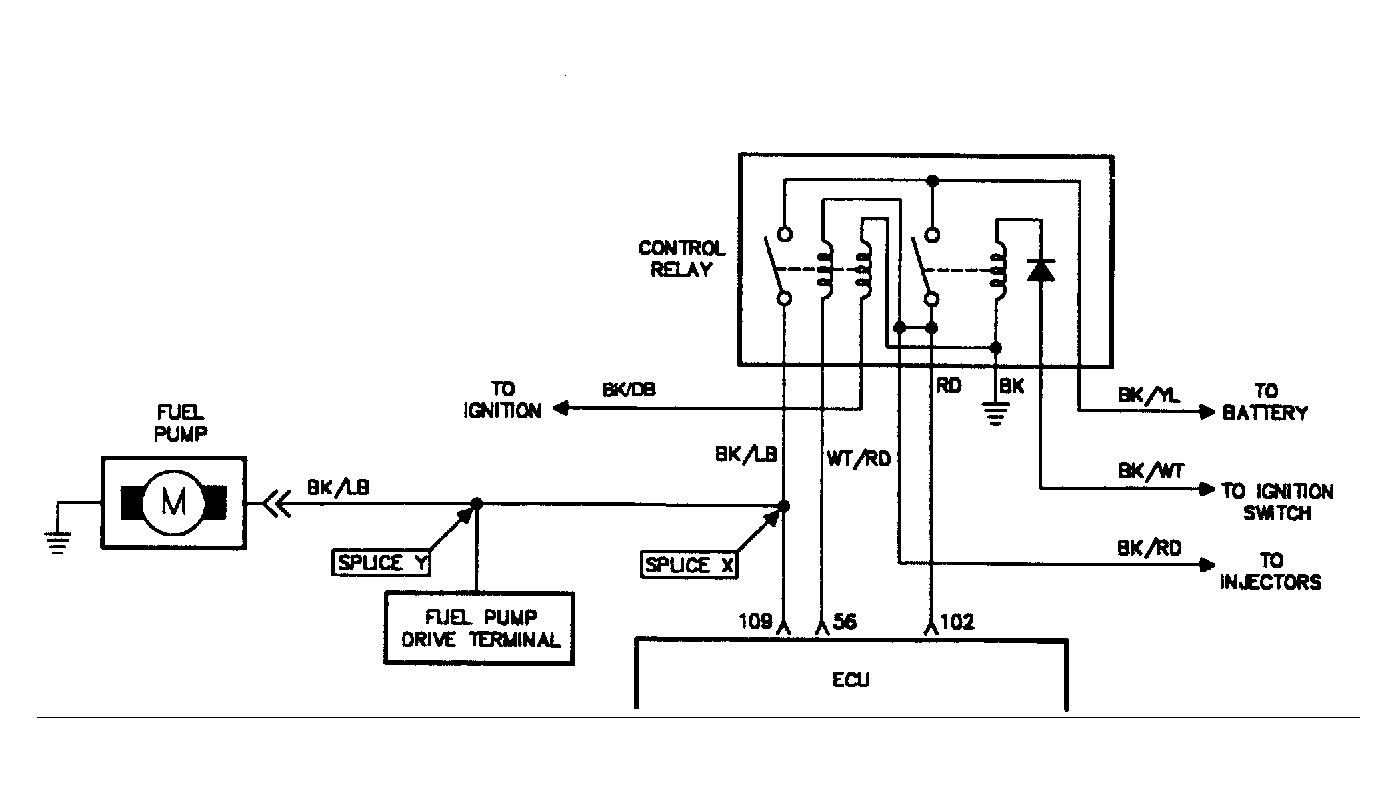

Fig 1: Test NS-4 Test Schematic - 2.4L Checking Control Relay Circuit
G90H19981

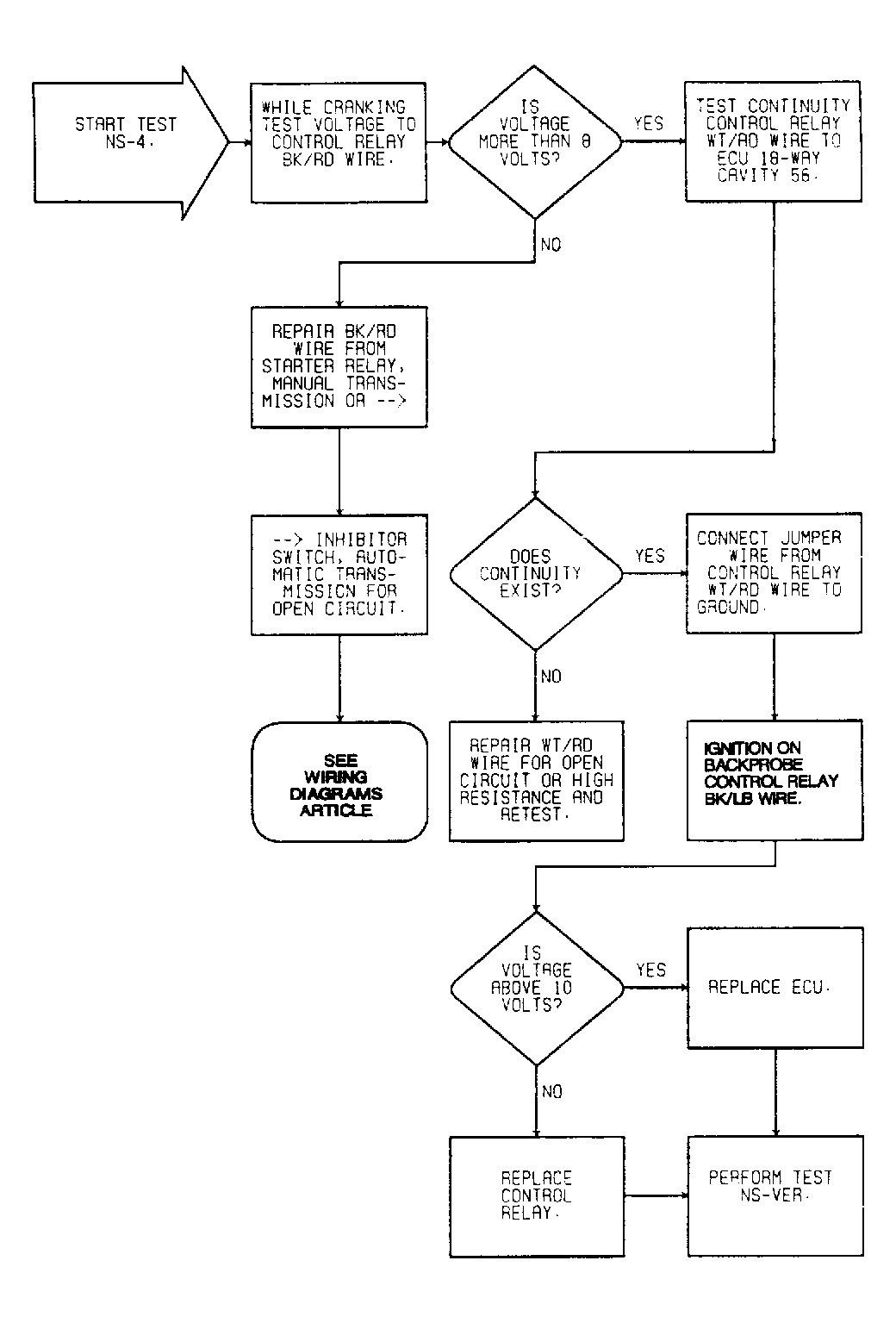

Fig 2: Test NS-4 Test Flow Chart - 2.4L Checking Control Relay Circuit
G90A20016
