NS-2: Checking For Fuel

Fig 1: NS-2 Test Schematic - 3.0L Fuel Check

G90H20070

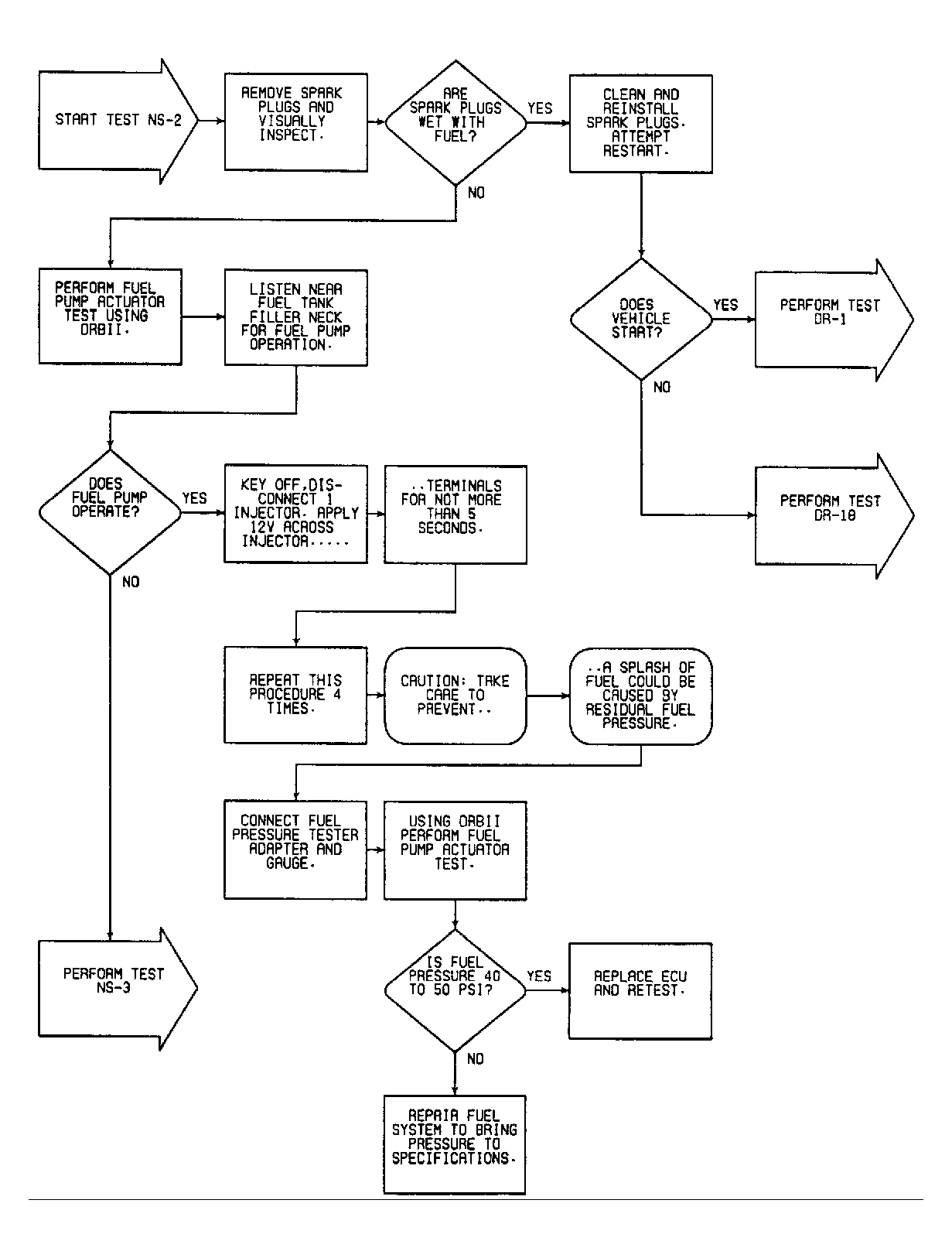

Fig 2: NS-2 Test Flow Chart - 3.0L Fuel Check

G90I20097
