Vehicle Speed Sensor Input Circuit

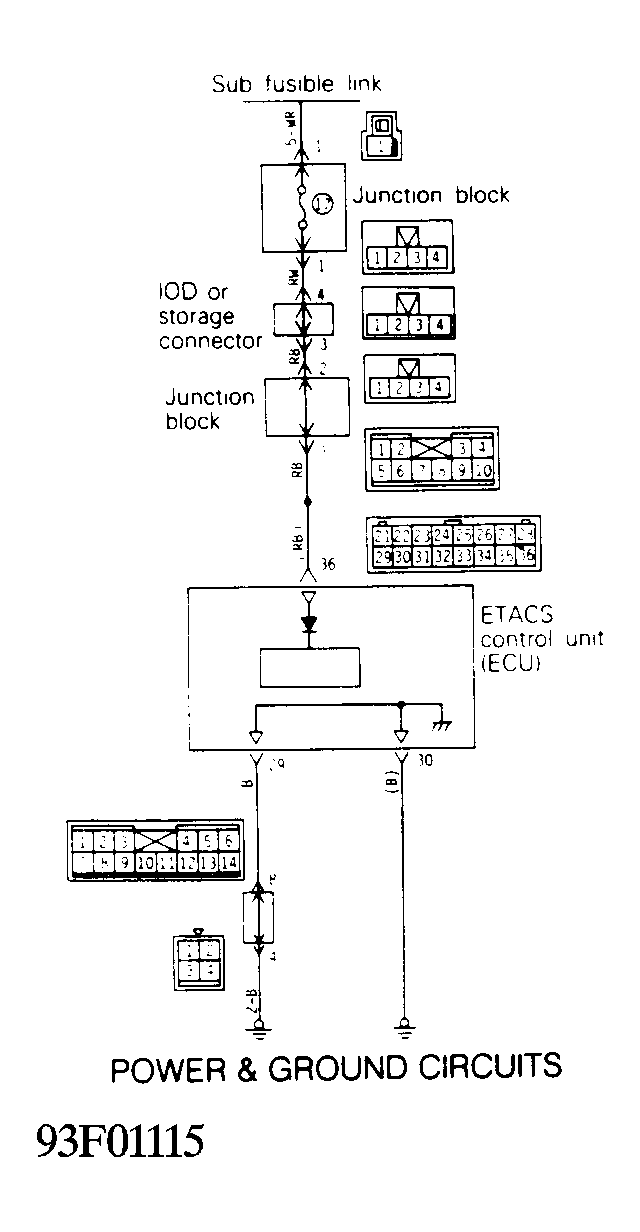

Disconnect ETACS control unit. Jack up front of vehicle. Rotate tires in forward direction while measuring continuity between control unit harness connector terminal No. 4 and ground. See Figure -Figure . Continuity should vary between continuity and NO continuity as tires rotate.

NOTE: Sensor sends 4 pulse signals, 0-8 volts for each rotation of transmission's output gear, to control unit terminal No. 4.
