Washer Switch Input Circuit

  1. With ignition switch and wiper/washer switch in OFF position, check voltage between control unit harness connector terminal No. 35 and ground. See Fig 6 and Fig 7 . No voltage should exist.
  2. With ignition switch in ACC position and wiper/washer switch in ON position, check voltage between control unit harness connector terminal No. 35 and ground. Battery voltage should exist. If voltage is not as indicated, check circuit and/or wiper/washer switch. To check wiper/washer switch, See appropriate STEERING COLUMN SWITCHES article in the ACCESSORIES/SAFETY EQUIPMENT Section.
Fig 1: Power & Ground Circuits (Galant With ETACS)
G93F01115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

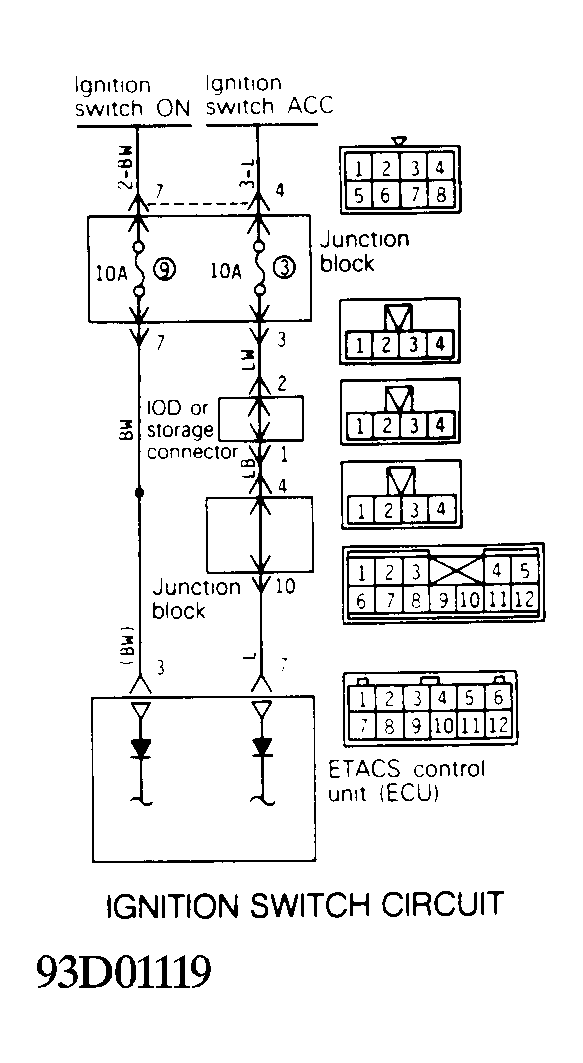

Fig 2: Ignition Switch Circuit (Galant With ETACS)
G93D01119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

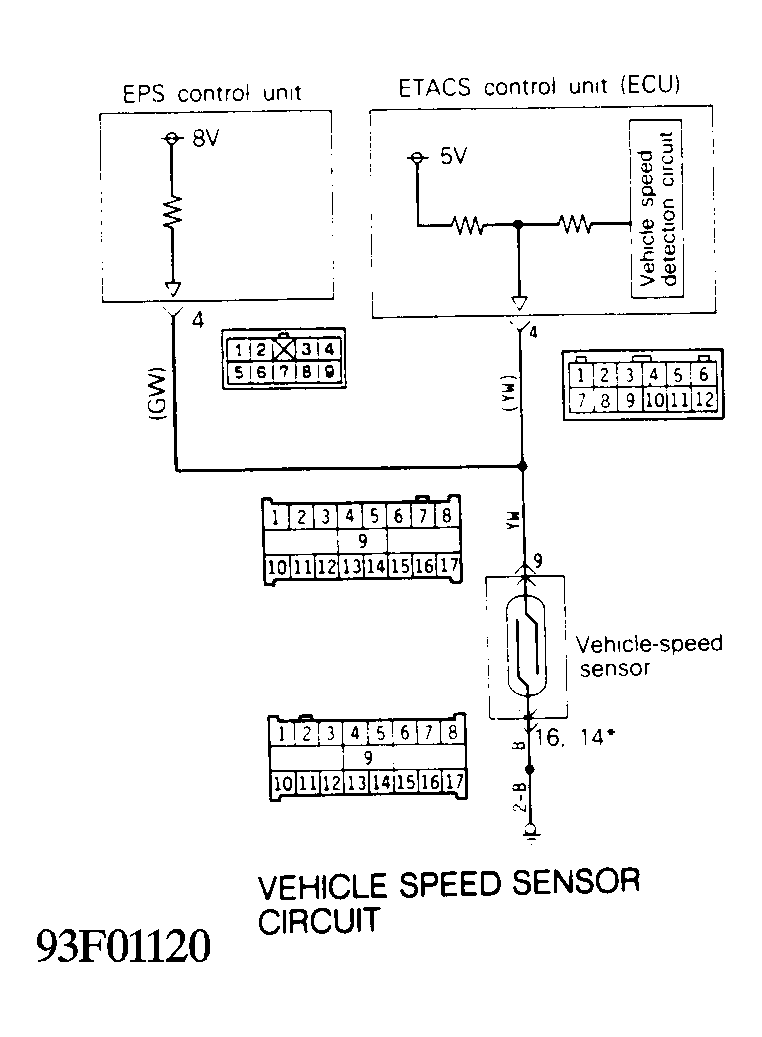

Fig 3: Vehicle Speed Sensor Circuit (Galant With ETACS)
G93F01120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
Fig 4: Wiper Switch Circuit (Galant With ETACS)
G93J01122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

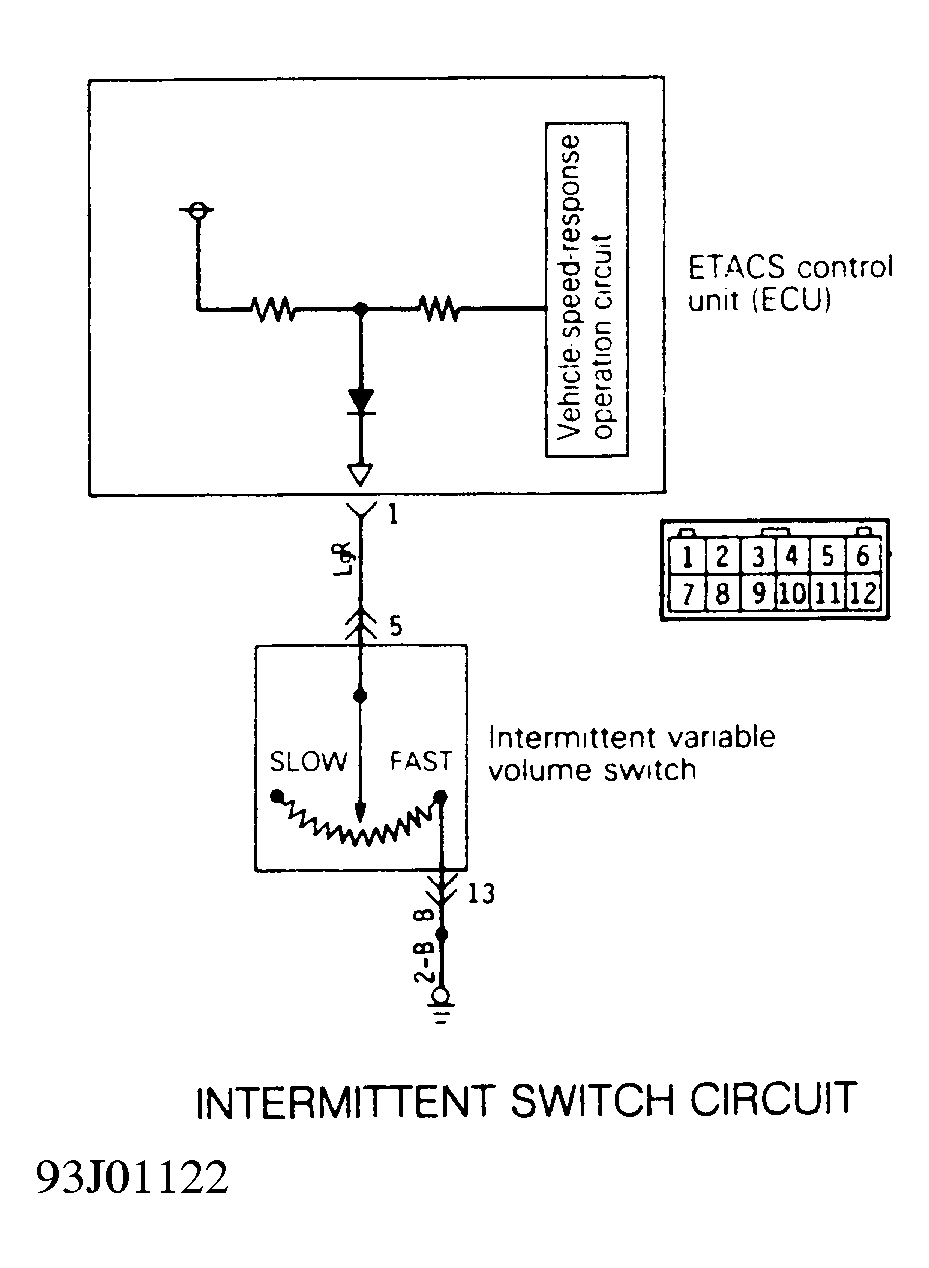

Fig 5: Intermittent Switch Circuit (Galant With ETACS)
G93H01121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

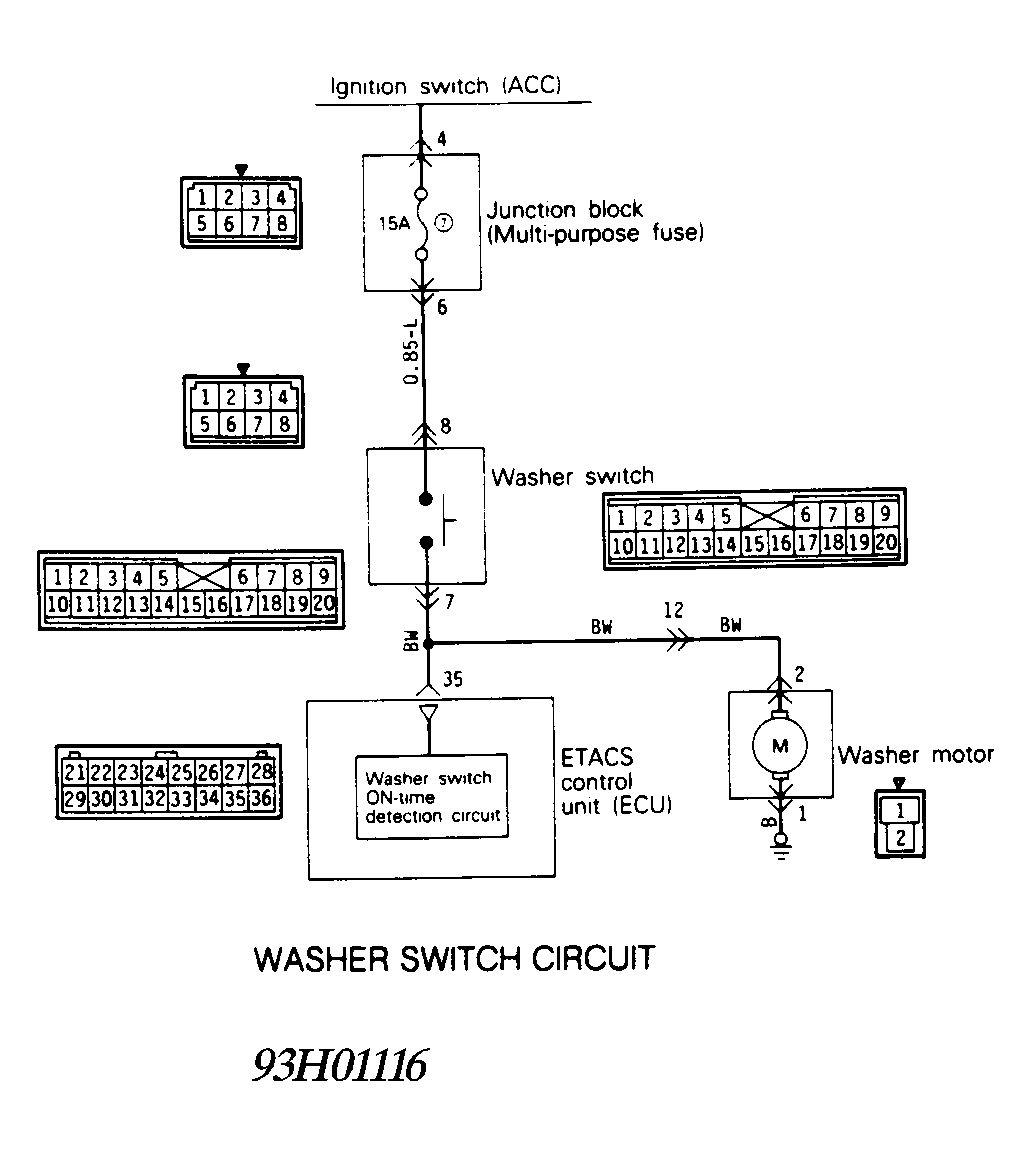

Fig 6: Washer Switch Circuit (Galant With ETACS)
G93H01116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

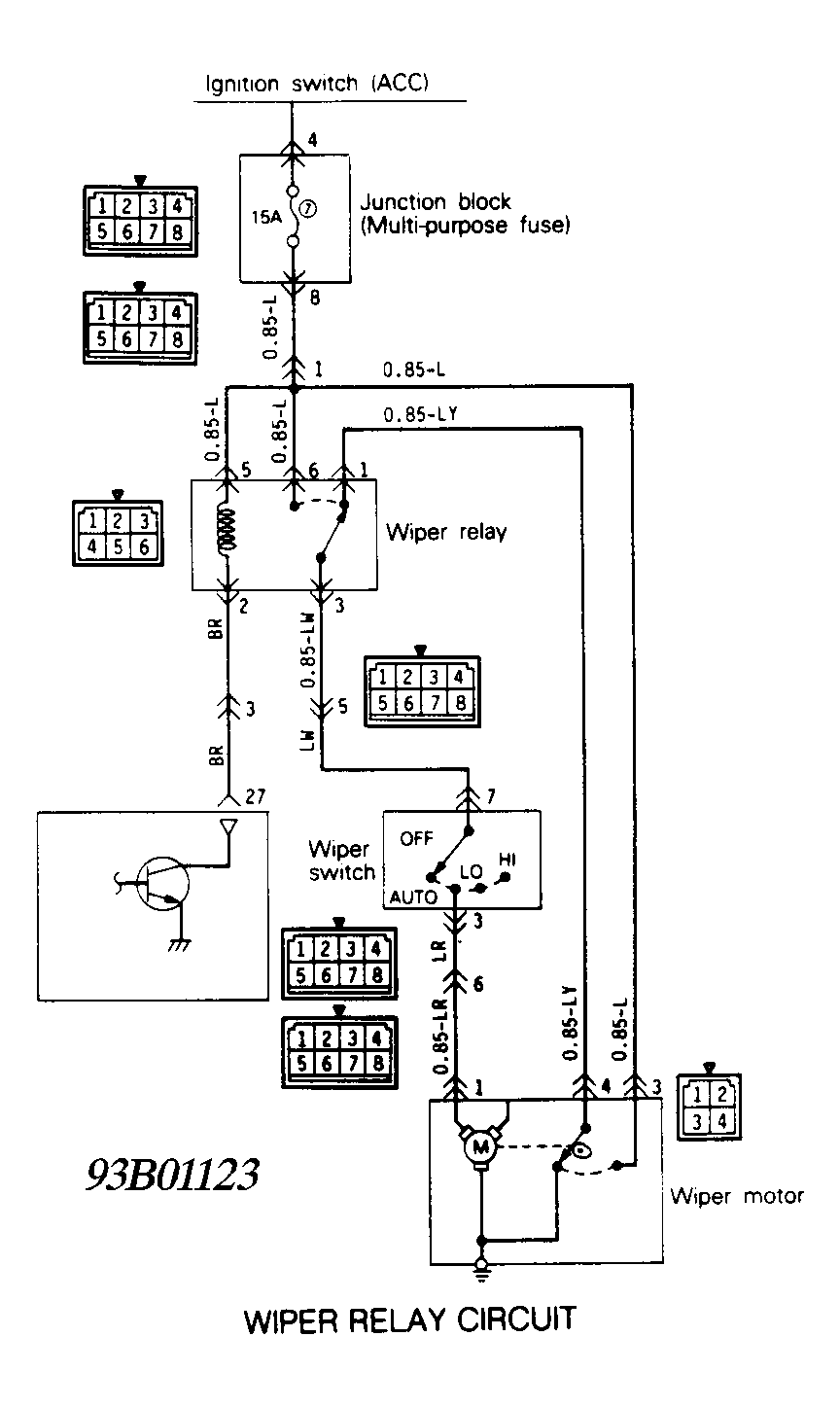

Fig 7: Wiper Relay Circuit (Galant With ETACS)
G93B01123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
