TCL Mode Switch

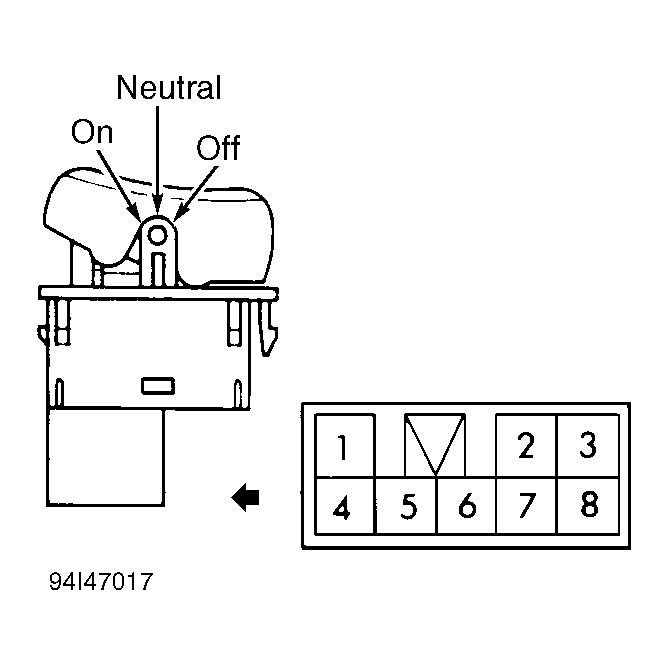

Remove switch from center console. Disconnect harness connector. Using ohmmeter, check continuity between terminals No. 2 and 4. See Figure . Continuity should exist only in OFF position. Check continuity between terminals No. 4 and 8. Continuity should exist only in ON position. Replace switch as needed.
