Traction Control System Using Voltmeter

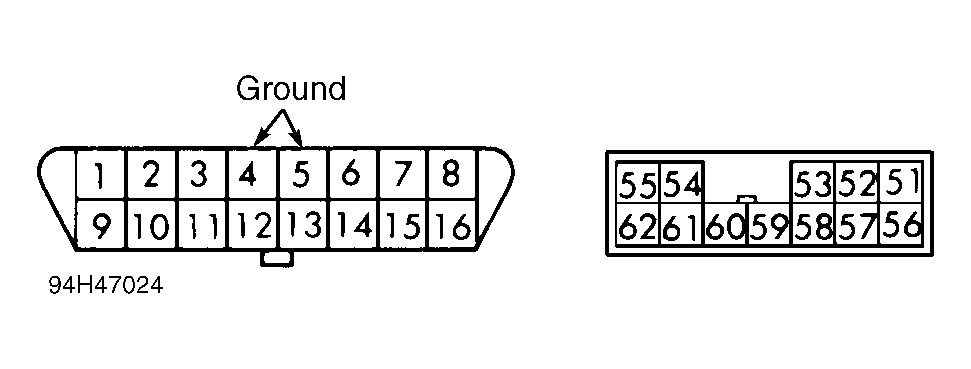

- Start and idle vehicle engine. Connect analog voltmeter negative lead to Data Link Connector (DLC) ground terminal and positive lead to terminal No. 55.See Fig 1
.
- If trouble codes are stored in TCL module memory, voltmeter needle will begin to pulse. Long pulses represent tens; short pulses represent ones. For example, 4 long pulses and 3 short pulses indicate Code 43. If 2 or more codes are stored, lowest number will be displayed first.
- After recording trouble code(s), perform necessary testing. See DIAGNOSTIC TESTING. If no codes are stored, voltmeter needle will pulse constantly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
