Front Wiper Switch Test

Front wiper switch is part of combination switch on steering column. For steering column switch testing, see Fig 1 .

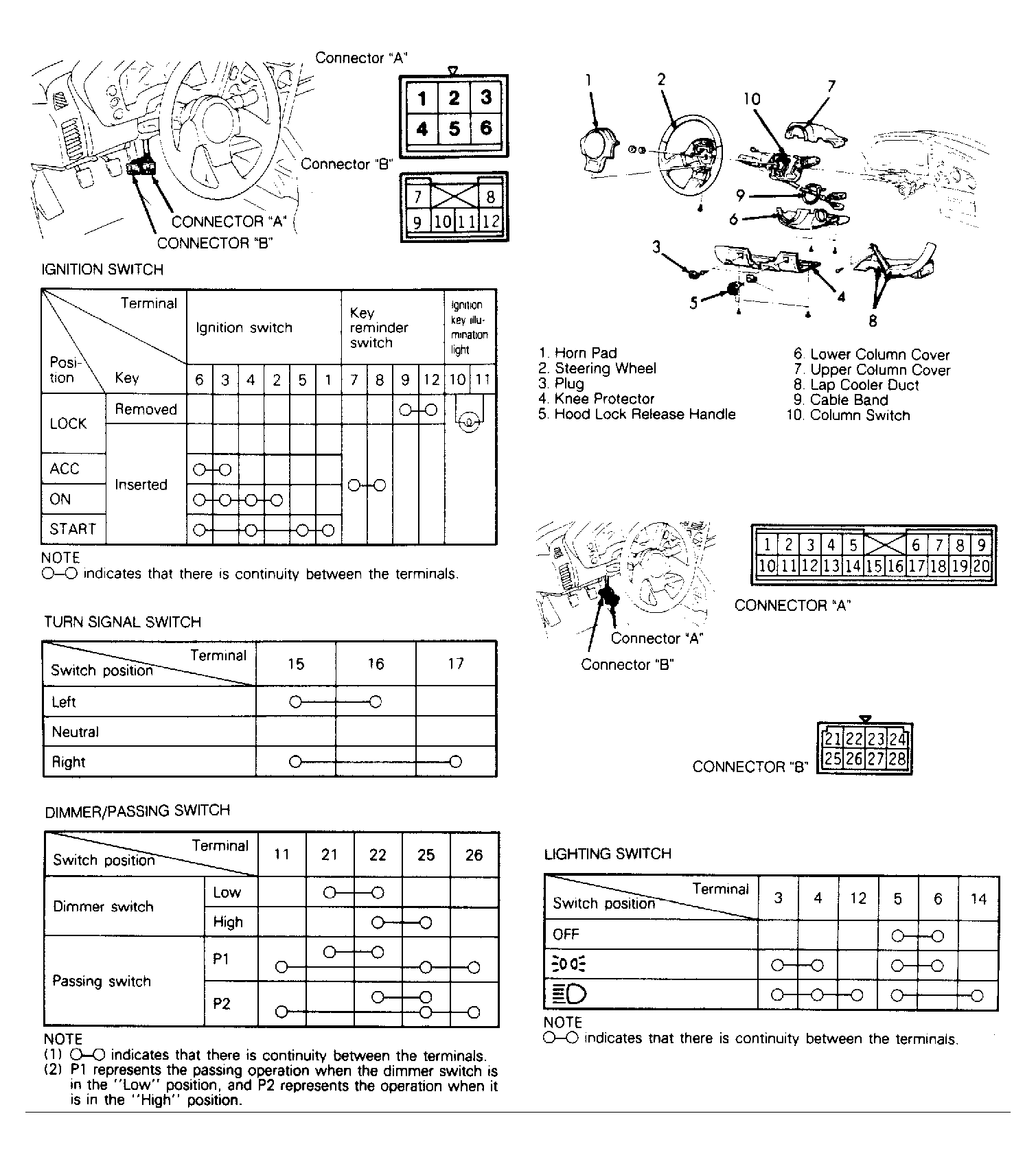

Fig 1: Testing, Removing & Installing Steering Column Switches

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
