Steering Column Overhaul: Disassembly

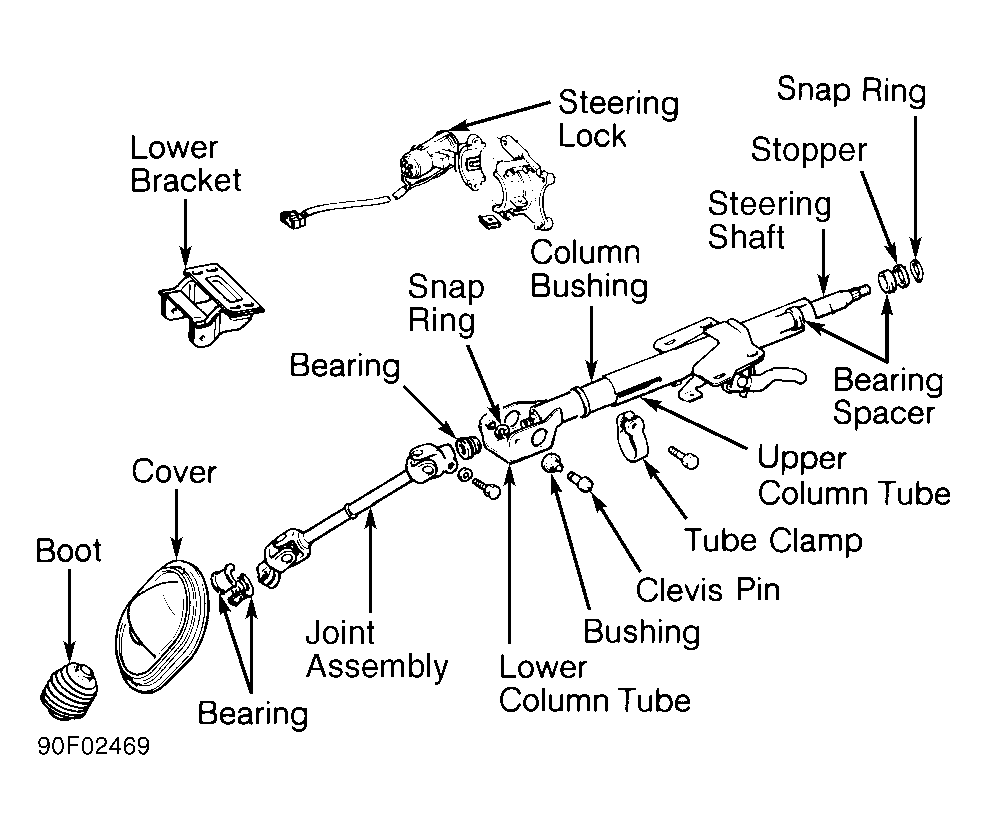

- Remove steering column. See STEERING COLUMN R & I under REMOVAL & INSTALLATION. Remove joint assembly. Remove boot, cover and bearing. Remove snap ring, stopper and spacer. See Fig 1.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
- Remove tube clamp bolt, upper column tube, bushing, tube clamp and lower column tube. Using ignition key, unlock steering wheel shaft. Remove steering shaft from column by lightly tapping steering shaft with soft mallet.
- If removing steering lock, cut retaining screws with hacksaw. Remove steering lock and bracket.
