Terminal Identification

NOTE: The following terminals are shown as viewed from component side.

TERMINAL ID DIRECTORY

Connector	See Figure
Airflow Sensor	Fig 1
CKP/CMP Sensor	Fig 2
Coolant Temperature Sensor	Fig 3
ECM	Fig 4
EGR Temperature Sensor	Fig 5
Fuel Injector	Fig 6
Fuel Pump	Fig 7
Idle Air Control Valve Position Sensor	Fig 8
Idle Speed Control Motor & Position Sensor	Fig 9
Ignition Coil	Fig 10
Induction Control Valve Position Sensor	Fig 11
Knock Sensor	Fig 12
MAP Sensor	Fig 13
MPI Relay	Fig 14
Oxygen (O2) Sensor	Fig 15 and Fig 16
Throttle Position Sensor	Fig 17
Traction Control Vacuum Solenoid	Fig 18
Traction Control Vent Solenoid	Fig 19
Transaxle Control Module	Fig 20

Fig 1: Airflow Sensor Terminal ID

G93D45107

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: CKP/CMP Sensor Terminal ID

G93E45124

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Coolant Temperature Sensor Terminal ID

G93G45126

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: ECM Terminal ID

G93F45109

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: EGR Temperature Sensor Terminal ID

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Fuel Injector Terminal ID

G93B45113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

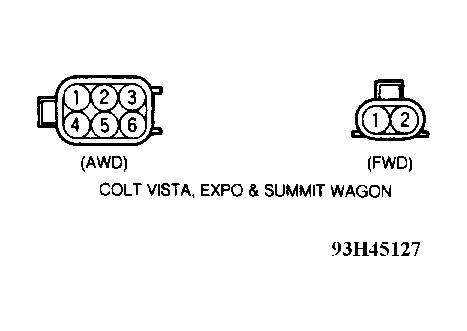

Fig 7: Fuel Pump Terminal ID

G93H45127

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Idle Speed Control Motor & Position Sensor Terminal ID

G93F80262

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Ignition Coil Terminal ID

G93D45115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Knock Sensor Terminal ID

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Map Sensor Terminal ID

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: MPI Relay Terminal ID

G93A80267

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Oxygen (O2) Sensor Terminal ID (2-Wire)

G93F45117

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Oxygen (O2) Sensor Terminal ID

G93A45120

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Throttle Position Sensor Terminal ID

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Traction Control Vacuum Solenoid Terminal ID

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Traction Control Vent Solenoid Terminal ID

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Transaxle Control Module Terminal ID

G93H80272

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
