System Input

System input tests should be performed if no trouble codes are stored when performing SELF-DIAGNOSTICS. System input tests cycle each cruise control switch and sensor.

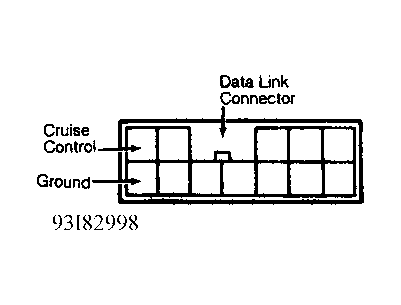

Use analog voltmeter or Scan Tester (MB991341) for system input check. Connect voltmeter or tester leads between cruise control terminal and ground terminal of data link connector. SeeFigure .
When using scan tester or voltmeter, turn ignition on and main cruise control switch to OFF position. Select a cruise control circuit on scan tester menu. Turn set switch to ON position. Turn main cruise control switch to ON position.
Within one second, turn resume switch to ON position. Select input test code from scan tester menu. Perform each input test according to INPUT CODE CHART. SeeFig 1 . Read codes. Turn main cruise control switch to OFF position.

Fig 1: Input Code Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

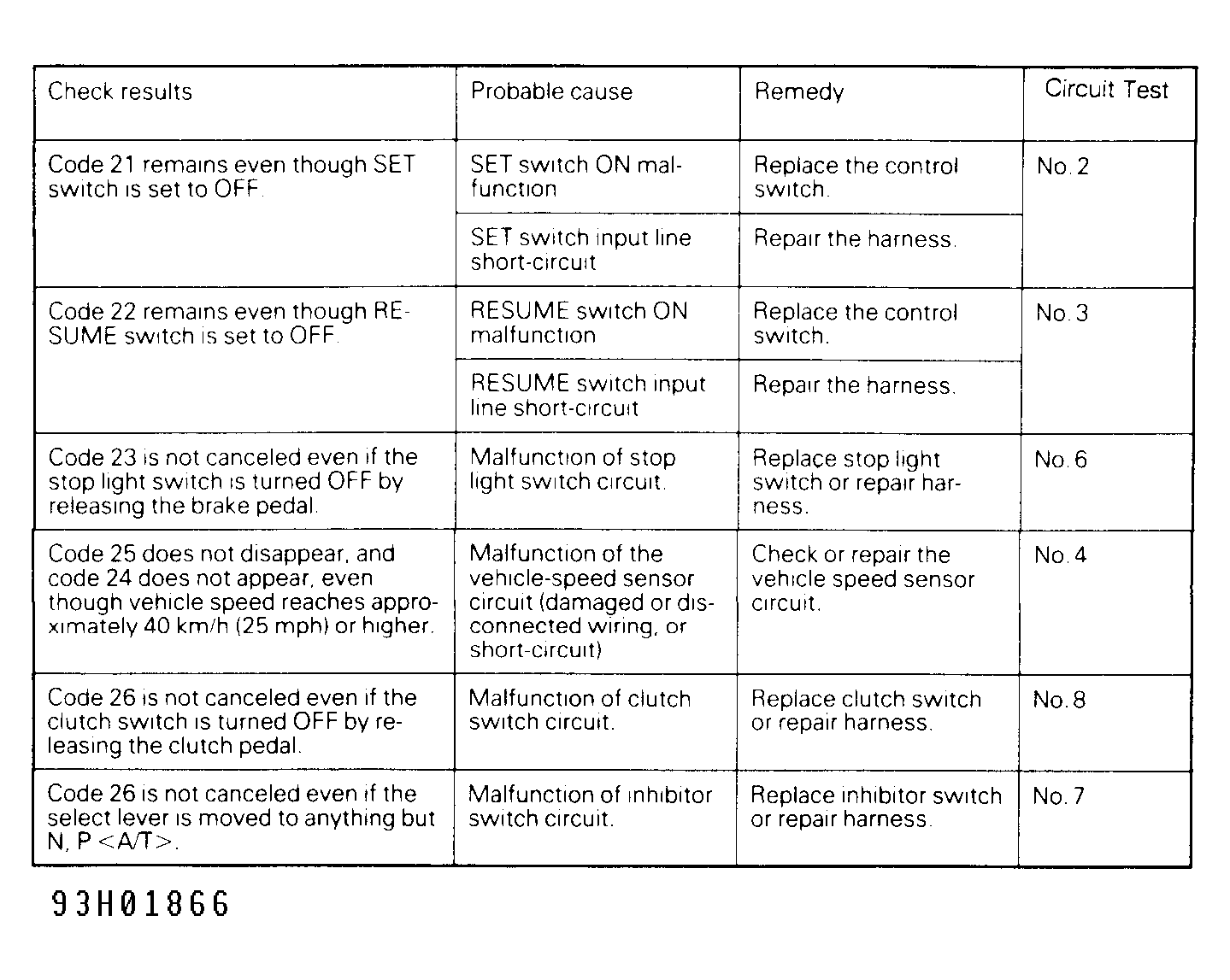

Fig 2: Check Results Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

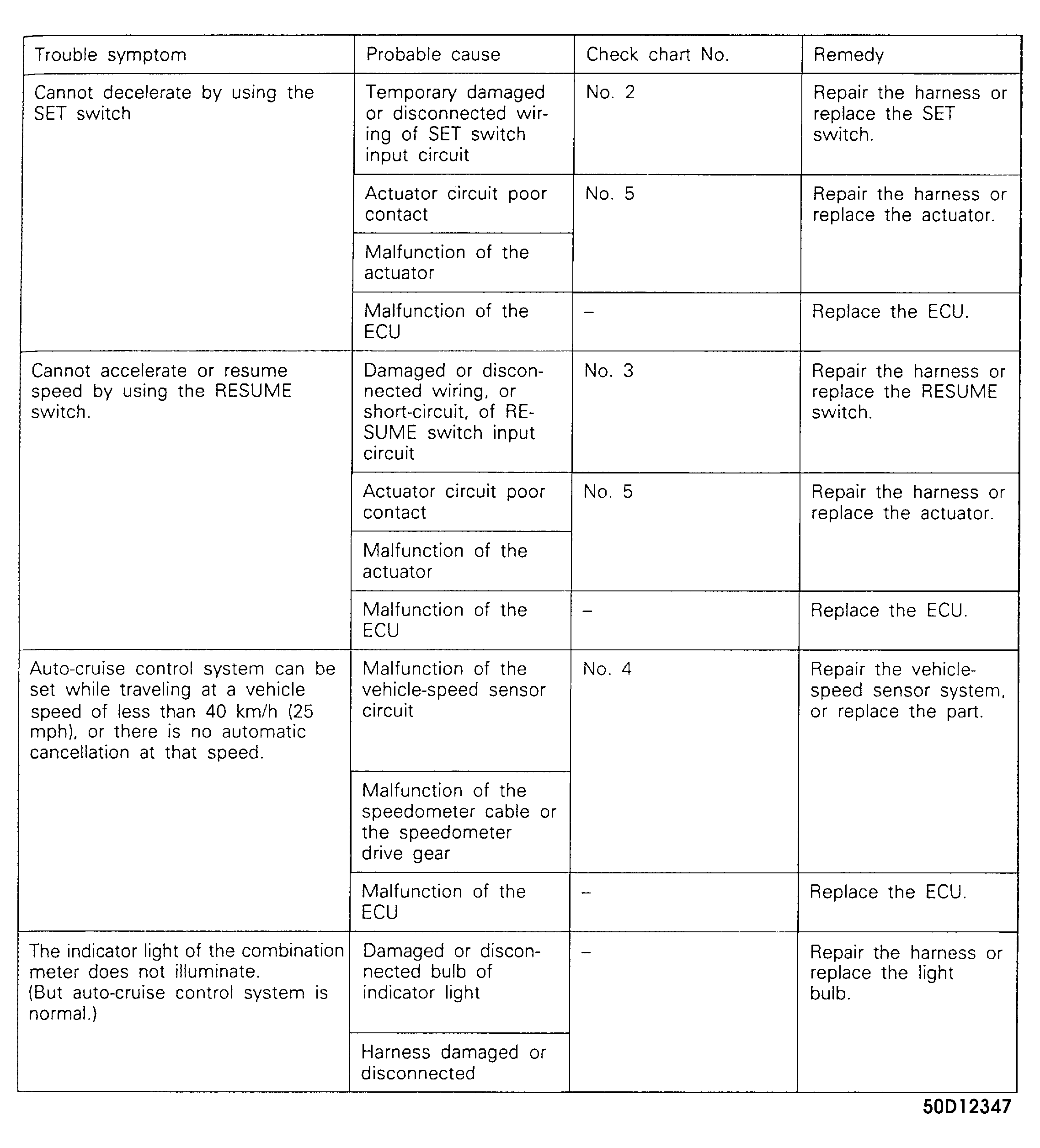

Fig 3: Symptom Chart (1 Of 3)

Courtesy of MITSUBISHI MOTOR CO.

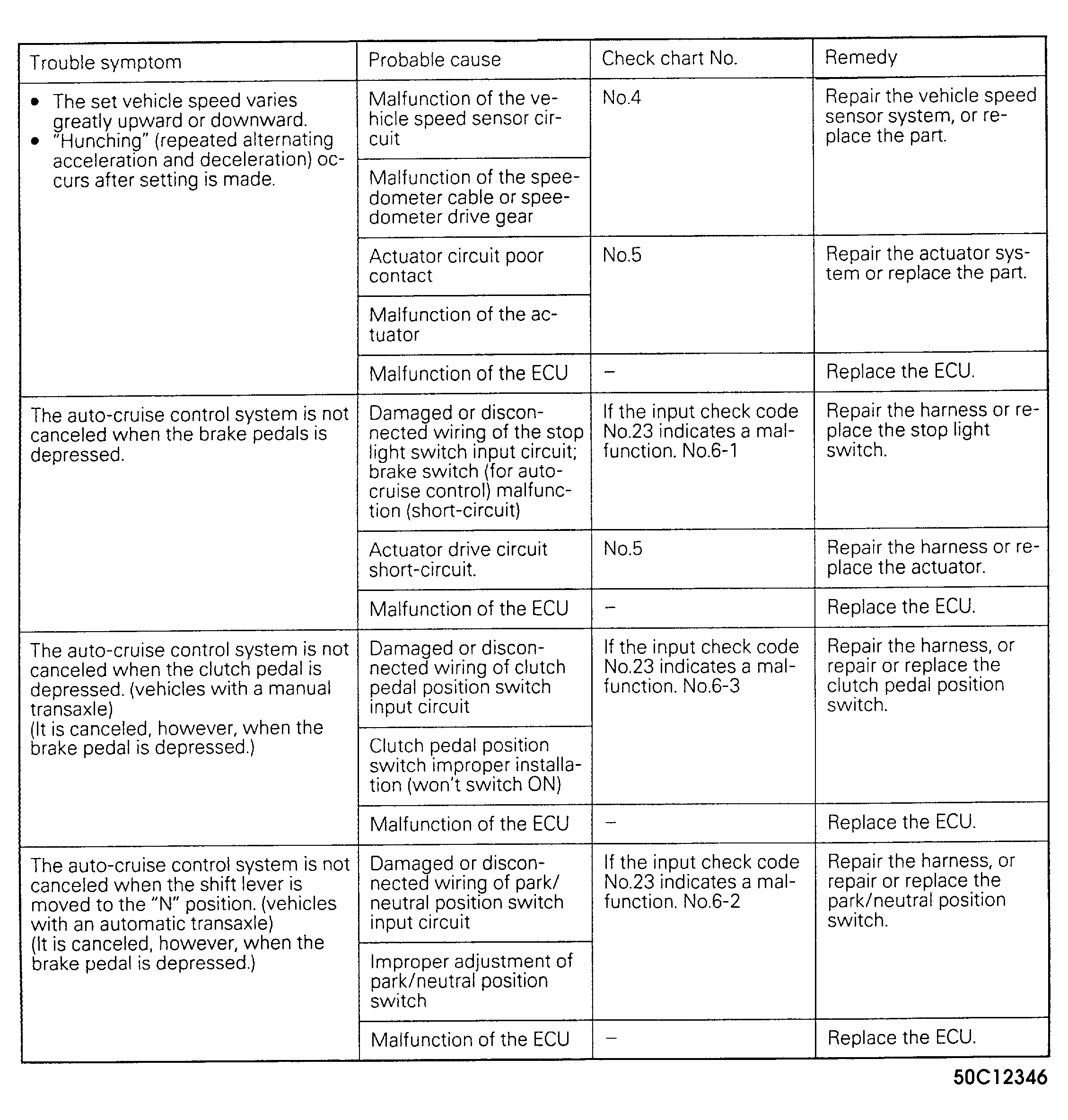

Fig 4: Symptom Chart (2 Of 3)

Courtesy of MITSUBISHI MOTOR CO.

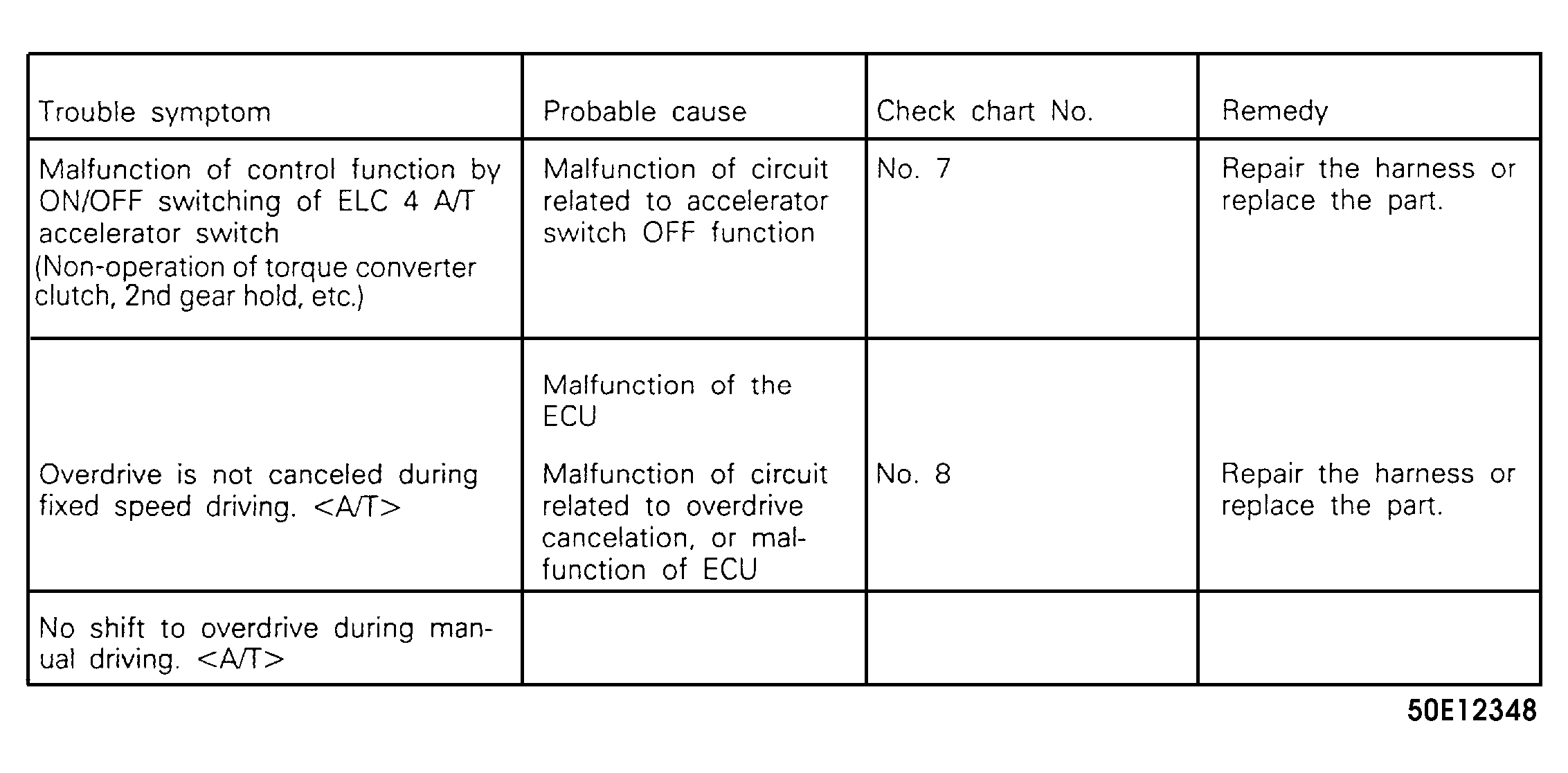

Fig 5: Symptom Chart (3 Of 3)

Courtesy of MITSUBISHI MOTOR CO.
