Power Window Switch Test

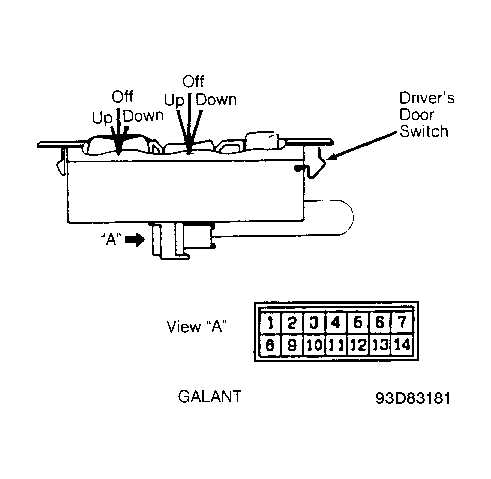

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY CHART. See Fig 1 and Fig 2 . Replace appropriate switch as necessary if switch continuity is not as specified.
MASTER WINDOW SWITCH CONTINUITY CHART
| Switch Position (1) | Check Continuity Between | |||
|---|---|---|---|---|
| Normal Position | ||||
| Left Front OFF | Pins 1, 6 & 13 | |||
| Left Rear OFF | Pins 1, 2 & 9 | |||
| Left Front UP | Pins 1 & 6; Pins 8 & 13 | |||
| Left Rear UP | Pins 1 & 2; 8 & 9 | |||
| Left Front DOWN | Pins 1 & 13; Pins 6 & 8 | |||
| Left Rear DOWN | Pins 1 & 9; Pins 2 & 8 | |||
| Right Front OFF | Pins 1, 7 & 14 | |||
| Right Rear OFF | Pins 1, 4 & 11 | |||
| Right Front UP | Pins 1 & 7; Pins 8 & 14 | |||
| Right Rear UP | Pins 1 & 4; Pins 8 & 11 | |||
| Right Front DOWN | Pins 1 & 14; Pins 7 & 8 | |||
| Right Rear DOWN | Pins 1 & 11; Pins 4 & 8 | |||
| Lock Position | ||||
| Left Front OFF | Pins 1, 6 & 13 | |||
| Left Rear OFF | Pins 2 & 9 | |||
| Left Front UP | Pins 1 & 6; Pins 8 & 13 | |||
| Left Rear UP | Pins 8 & 9 | |||
| Left Front DOWN | Pins 1 & 13; Pins 6 & 8 | |||
| Left Rear DOWN | Pins 2 & 8 | |||
| Right Front OFF | Pins 7 & 14 | |||
| Right Rear OFF | Pins 4 & 11 | |||
| Right Front UP | Pins 8 & 14 | |||
| Right Rear UP | Pins 8 & 11 | |||
| Right Front DOWN | Pins 7 & 8 | |||
| Right Rear DOWN | Pins 4 & 8 | |||
|
||||
PASSENGER SIDE WINDOW SWITCH CONTINUITY CHART
| Switch Position | Check Continuity Between |
|---|---|
| OFF | Pins 1 & 2; Pins 3 & 4 |
| UP | Pins 1 & 2; Pins 4 & 5 |
| DOWN | Pins 1 & 5; Pins 3 & 4 |
