Rear Differential Control Unit

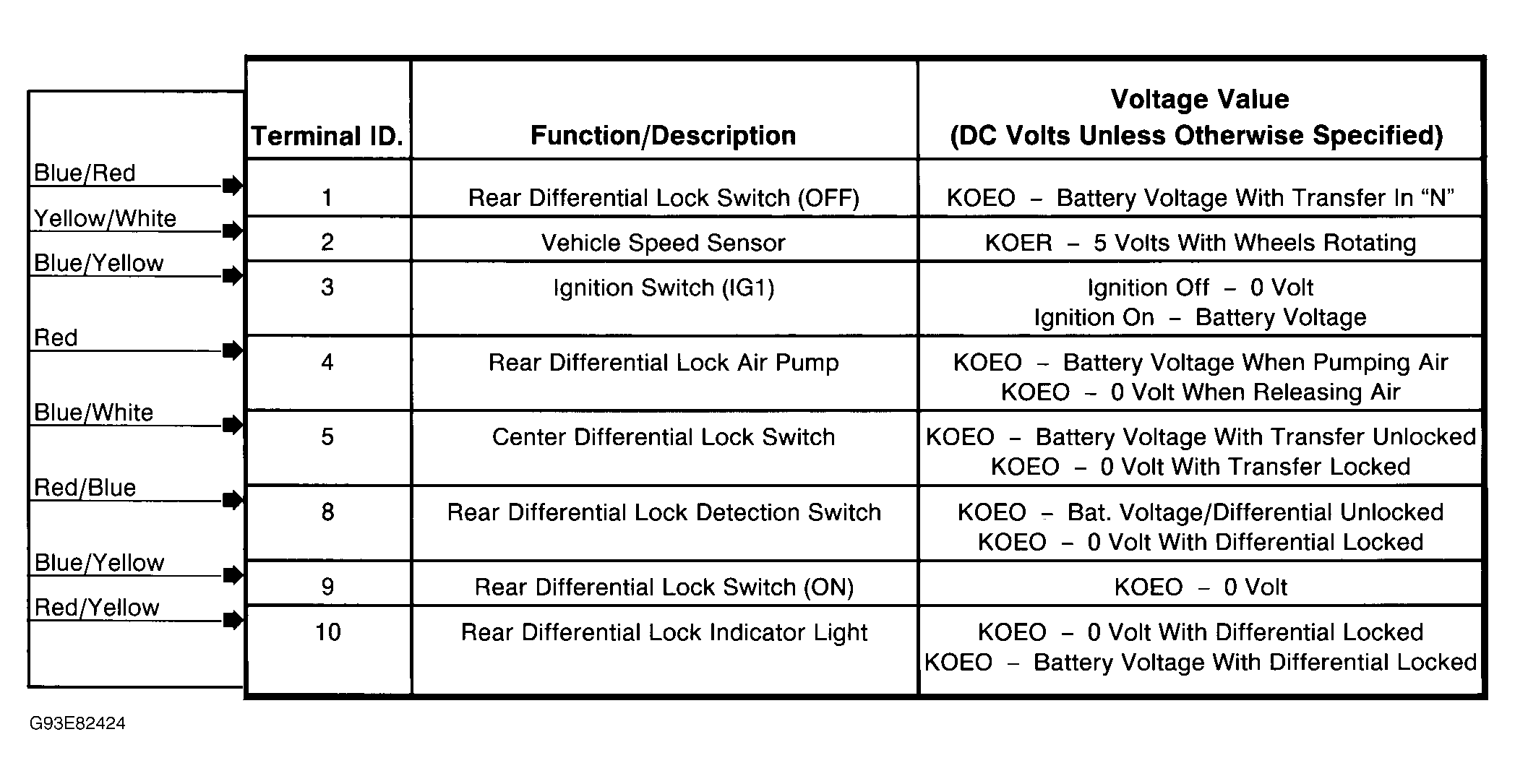

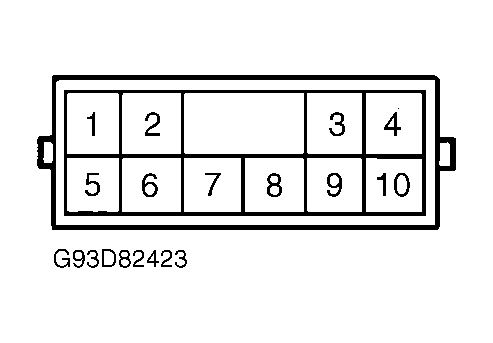

Remove rear seat and remove rear differential control unit. Do not disconnect control unit harness connector. Backprobe harness connector. Measure voltage between each individual terminal and ground terminal No. 6 (Black wire). See Fig 1 and Fig 2 . If after all tests have been completed system is not operating properly, substitute rear differential control unit with known good unit and retest.
