Power Window Switch Test

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY CHART. See Fig 1 -5. Replace appropriate switch as necessary if switch continuity is not as specified.

MASTER WINDOW SWITCH CONTINUITY CHART

Switch Position ⁽¹⁾

Check Continuity Between

Normal Position

Left Front OFF

Pins 2, 8 & 13

Left Rear OFF

Pins 4, 11 & 13

Left Front UP

Pins 2 & 9; Pins 8 & 13

Left Rear UP

Pins 4 & 9; 11 & 13

Left Front DOWN

Pins 2 & 13; Pins 8 & 9

Left Rear DOWN

Pins 4 & 13; Pins 9 & 11

Right Front OFF

Pins 1, 7 & 13

Right Rear OFF

Pins 5, 12 & 13

Right Front UP

Pins 1 & 9; Pins 7 & 13

Right Rear UP

Pins 5 & 9; Pins 12 & 13

Right Front DOWN

Pins 1 & 13; Pins 7 & 9

Right Rear DOWN

Pins 5 & 13; Pins 9 & 12

Lock Position

Left Front OFF

Pins 2, 8 & 13

Left Rear OFF

Pins 4 & 11

Left Front UP

Pins 2 & 9; Pins 8 & 13

Left Rear UP

Pins 4 & 9

Left Front DOWN

Pins 2 & 13; Pins 8 & 9

Left Rear DOWN

Pins 9 & 11

Right Front OFF

Pins 1 & 7

Right Rear OFF

Pins 5 & 12

Right Front UP

Pins 1 & 9

Right Rear UP

Pins 5 & 9

Right Front DOWN

Pins 7 & 9

Right Rear DOWN

Pins 9 & 12

⁽¹⁾	Left side of vehicle refers to driver's side.

RIGHT FRONT SIDE WINDOW SWITCH CONTINUITY CHART

Switch Position	Check Continuity Between
OFF	Pins 1 & 7; Pins 2 & 5
UP	Pins 2 & 5; Pins 6 & 7
DOWN	Pins 1 & 7; Pins 5 & 6

REAR DOOR SIDE WINDOW SWITCH CONTINUITY CHART

Switch Position	Check Continuity Between
OFF	Pins 1 & 2; Pins 3 & 5
UP	Pins 1 & 2; Pins 3 & 4
DOWN	Pins 2 & 4; Pins 3 & 5

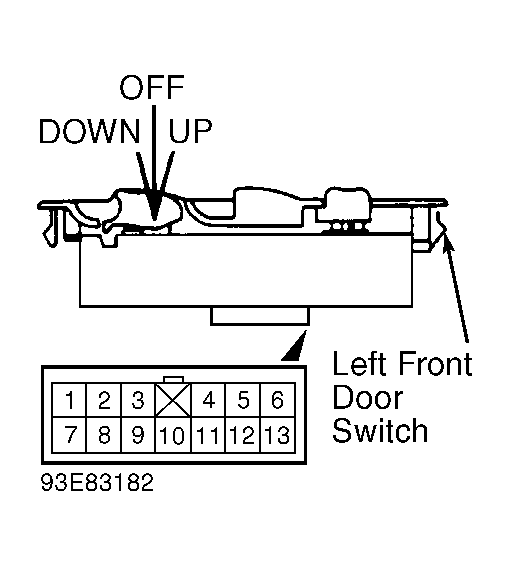

Fig 1: Driver's Power Window Switch Connector Terminal ID

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

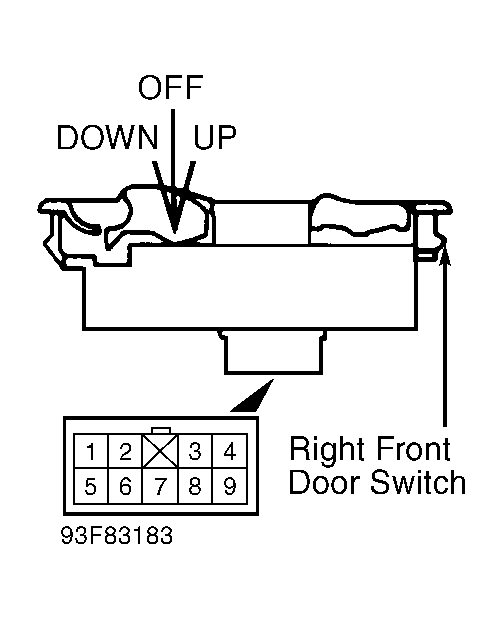

Fig 2: Right Front Power Window Switch Connector Terminal ID

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Rear Door Power Window Switch Connector Terminal ID

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
