Control Units

CONTROL UNITS LOCATION

Component Location
A/C Compressor Lock Controller Behind glove compartment.
ABS Control Unit Behind right rear quarter panel.
Active Aero Control Unit On left rear quarter panel.
Active Exhaust Control Unit Behind panel on right side of luggage compartment.
Automatic Light Shut-Off Control Unit On left rear quarter panel.

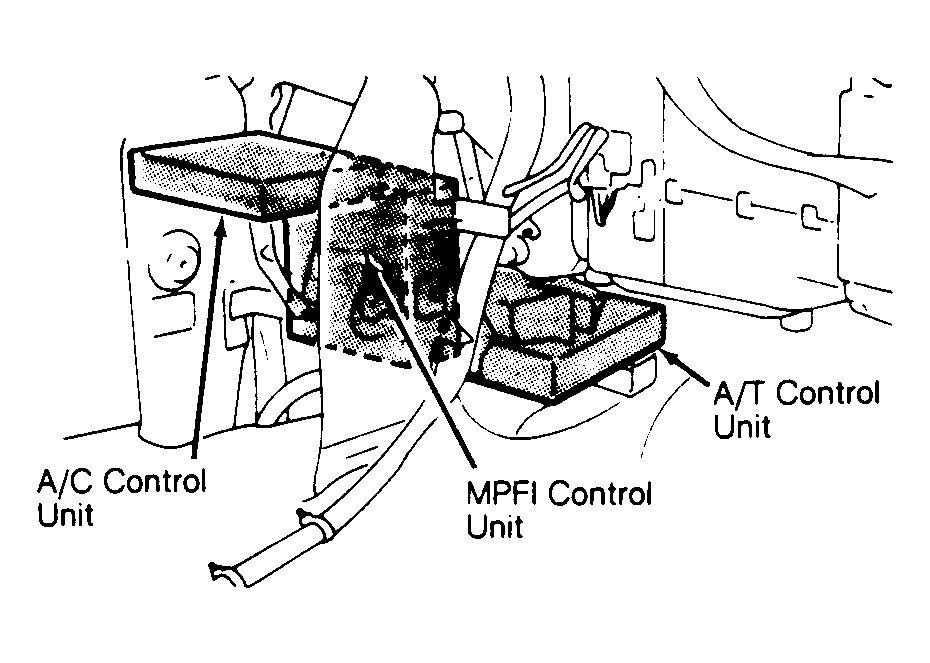

A/C Control Unit Behind center console. See Figure .
A/T Control Unit Behind center console. See Figure .
Cruise Control System Control Unit Behind right side kick panel.
ECS Control Unit On right rear of luggage compartment.
ETACS Control Unit Under left side of dash.
MPFI Control Unit Behind center console. See Figure .
SRS Control Unit Under center console, between front seats.
