Door Lock Power Relay

NOTE: Following testing applies to door lock power relay "2" for keyless entry systems (if equipped).

Check continuity of relay using following chart. See Fig 1 . Replace relay as needed.

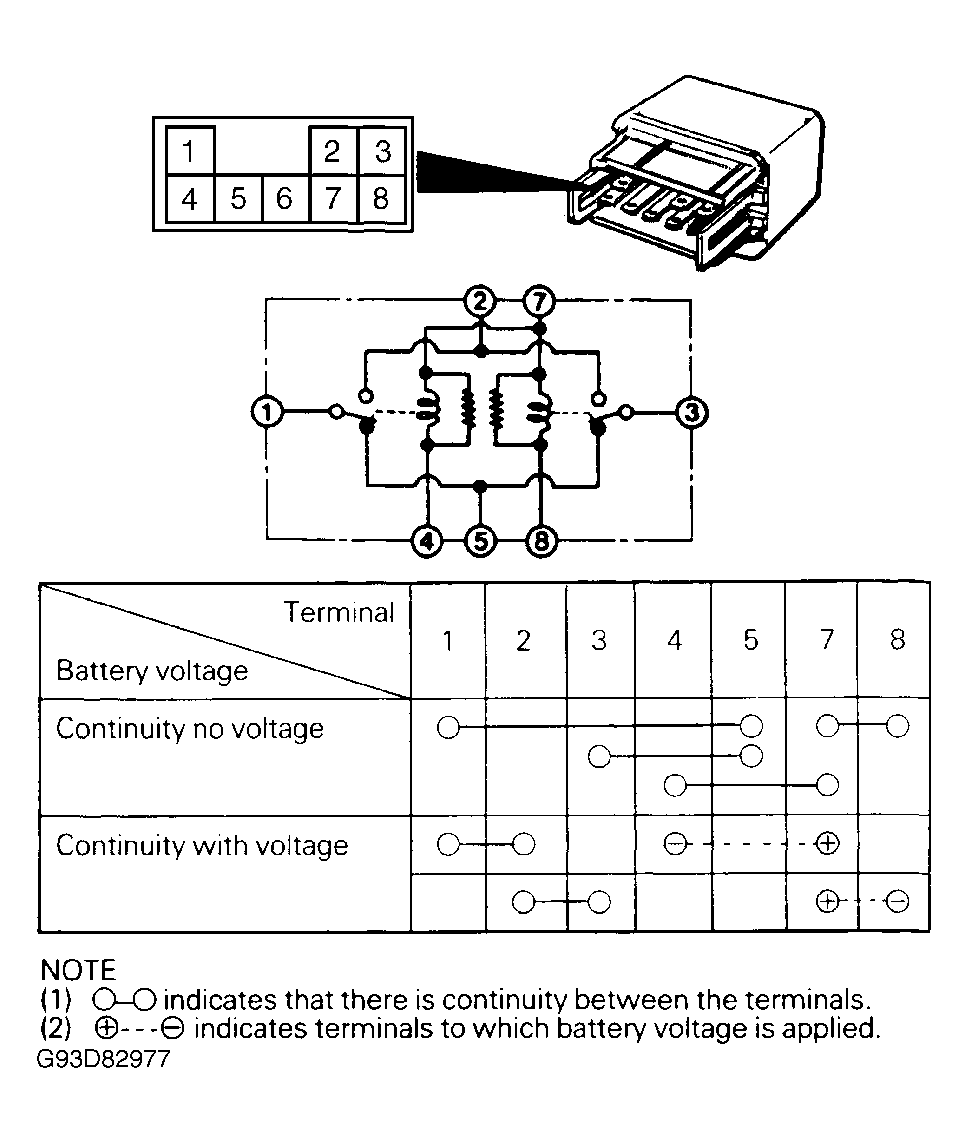

Fig 1: Testing Door Lock Power Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
