Power Door Lock Control Unit (Eclipse)

Using DVOM, backprobe power door lock control unit connector. Measure voltage between selected terminal and vehicle ground. See Fig 1 and Fig 2 . If voltage is not within specification, inspect and repair circuit as needed. See appropriate wiring diagram under WIRING DIAGRAMS.

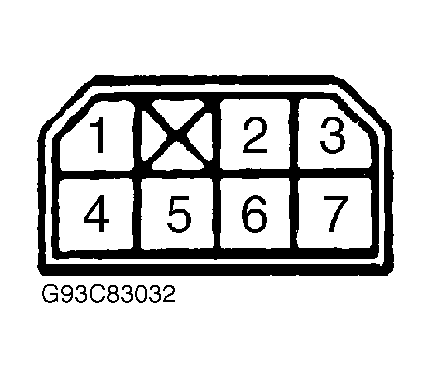

Fig 1: Identifying Door Lock Control Unit Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

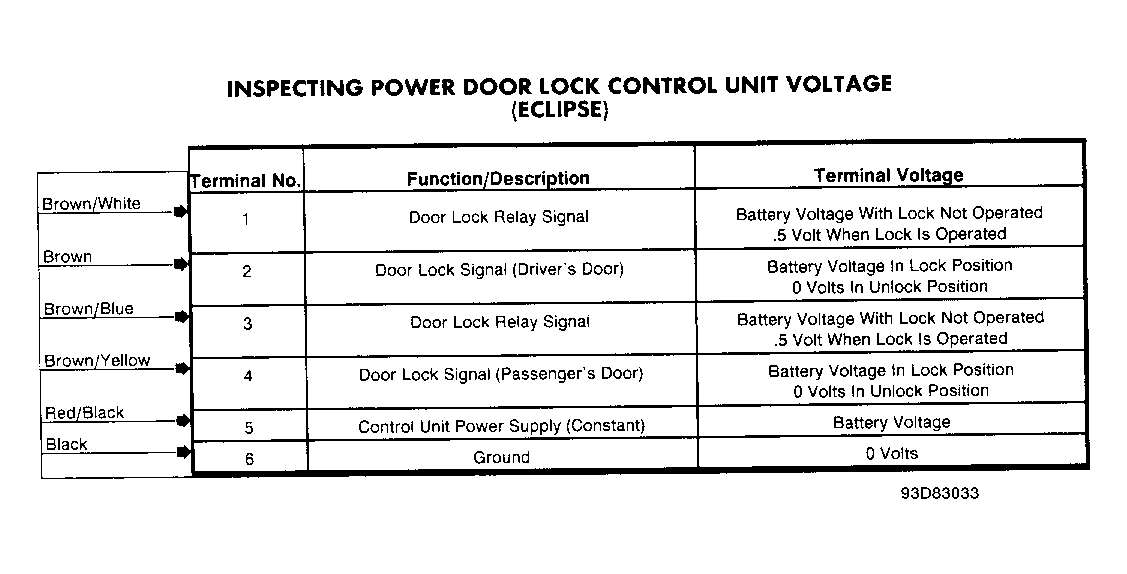

Fig 2: Power Door Lock Control Unit Voltage Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
