Power Mirror Motor

Connect 12-volt power source to mirror connector terminals. SeeFig 1 and Fig 2 . Replace mirror as necessary.

Fig 1: Identifying Power Mirror Connector Without Heater

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

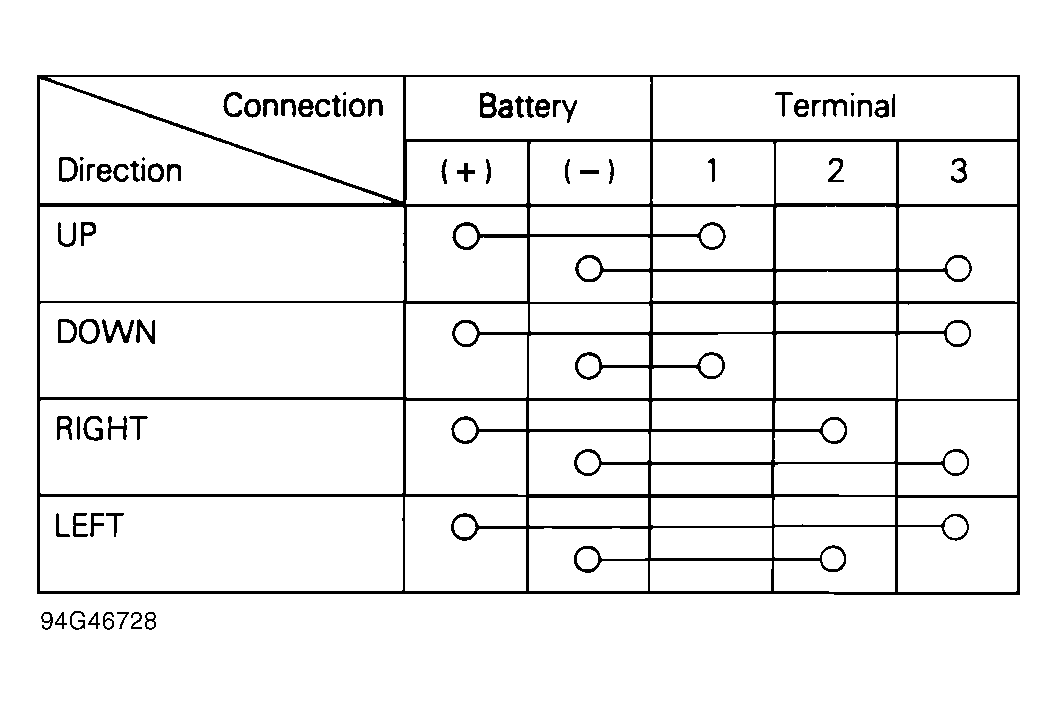

Fig 2: Power Mirror Operational Test Charts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
