Scan Tool

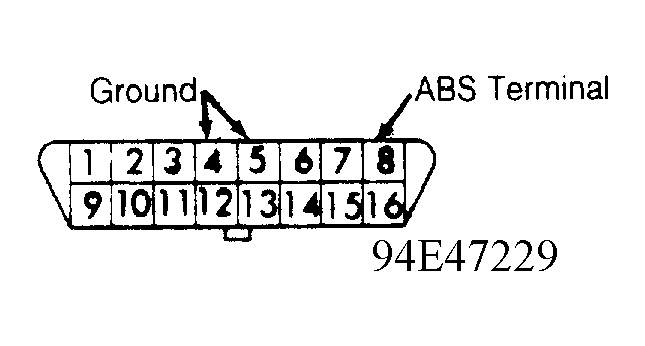

- With ignition off, connect Multi-Use Tester (MB991341) and ROM pack (MB991423) to self-diagnostic connector, located under driver side of dash, and to cigarette lighter socket. See Fig 1.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
- Turn ignition on. ABS warning light should come on as ABS goes into self-diagnostic mode. Read and record all diagnostic output (trouble) codes from ECU memory. Refer to Multi-Use Tester (MUT) instructions for specific trouble code retrieval procedure.
- After all trouble codes have been retrieved and recorded, clear codes from ECU memory. Refer to Multi-Use Tester (MUT) instructions for specific trouble code clearing instructions. See TROUBLE CODE DEFINITION and appropriate CODE under DIAGNOSIS & TESTING for servicing procedure.
- If trouble codes cannot be cleared, ECU is currently detecting a malfunction. If codes can be cleared, problem is either intermittent or only appears while driving.
