Key to Wiring Diagrams and Symbol Identification

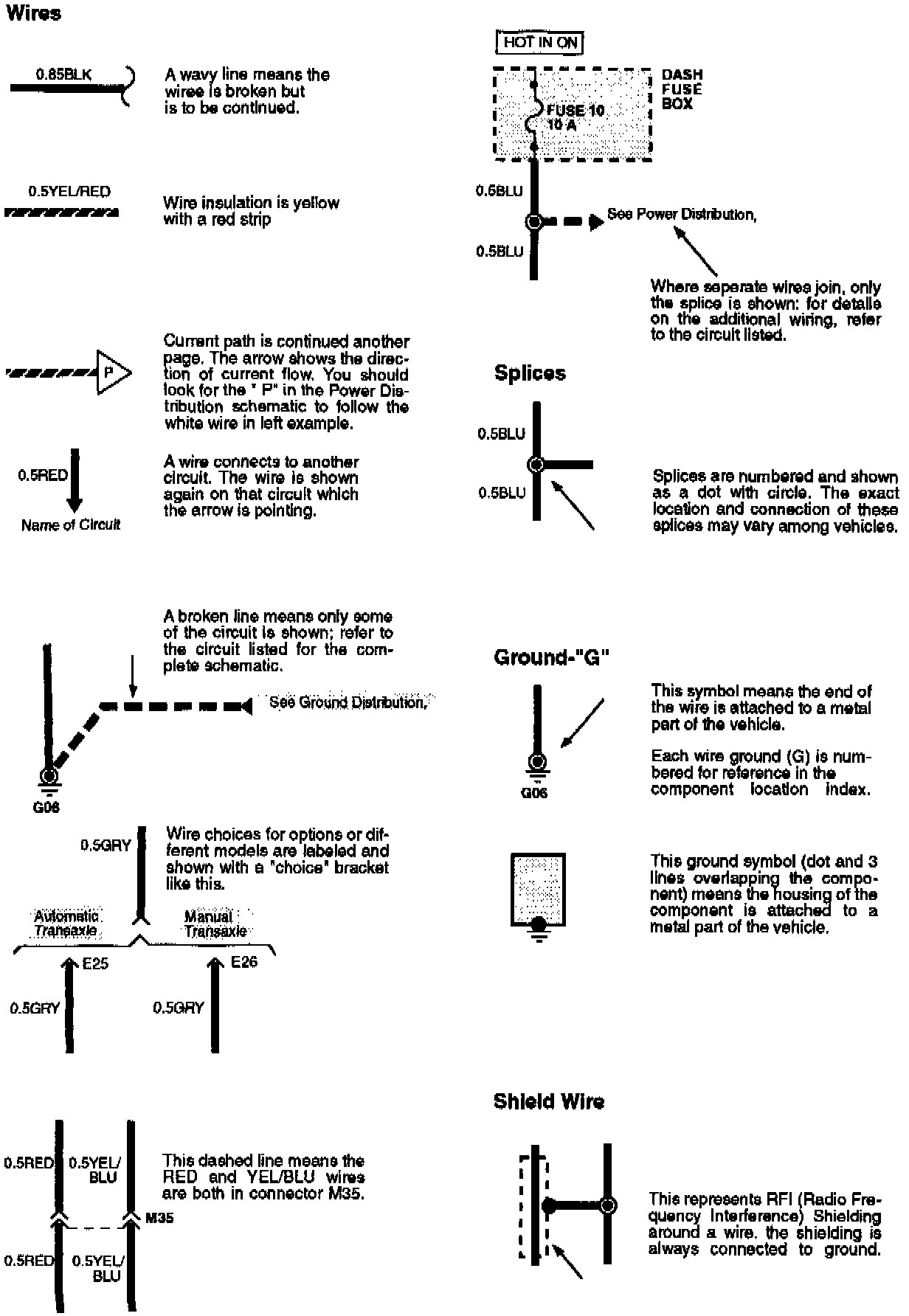

Symbols In Schematic Reference:

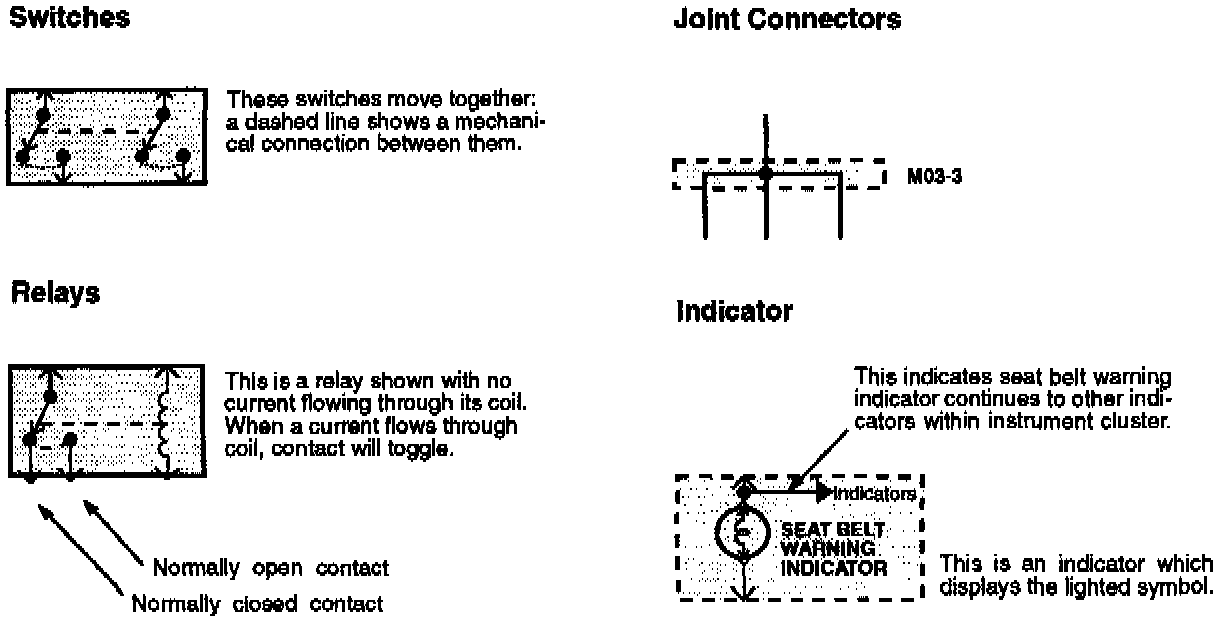

Symbols In Schematic Reference:

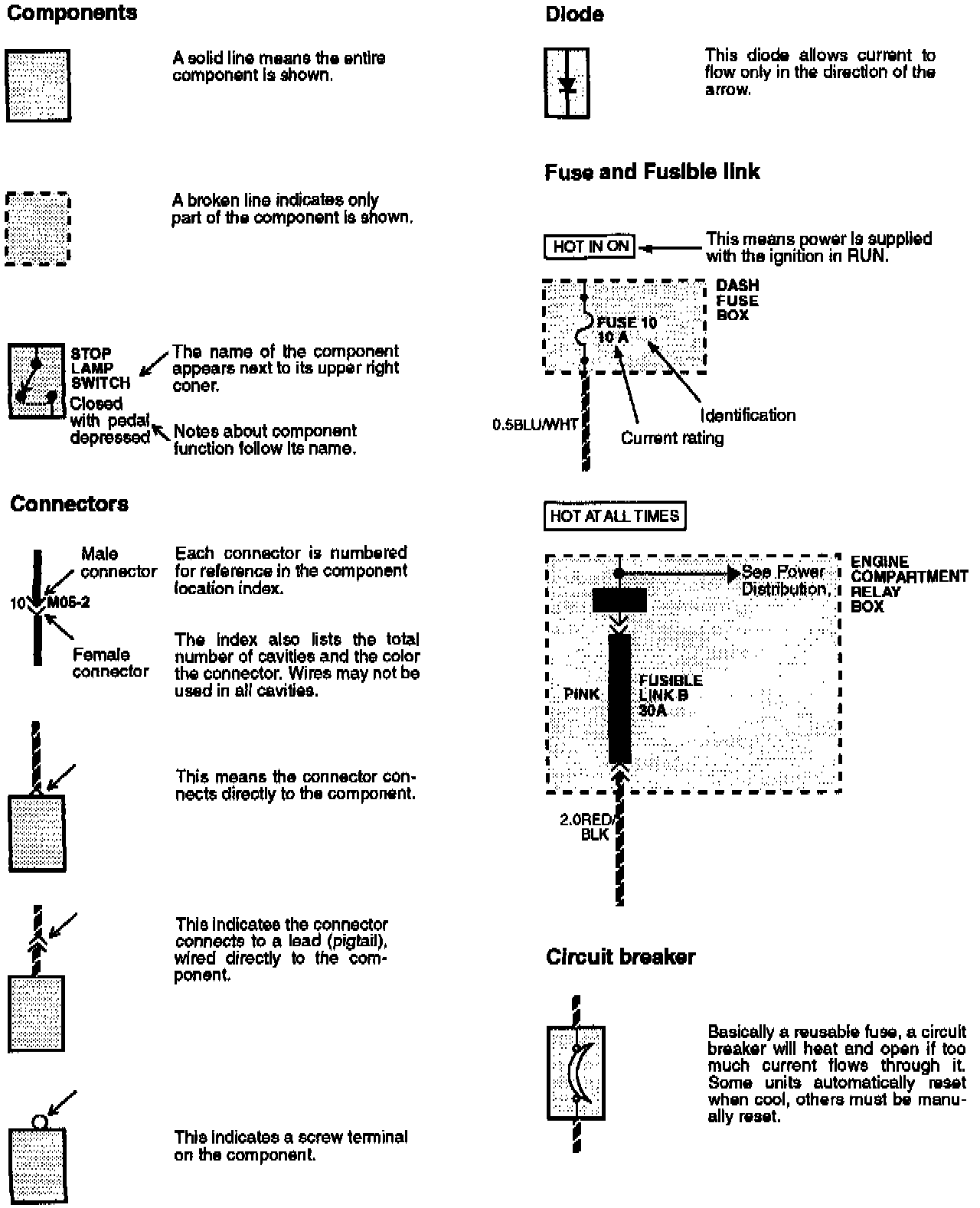

Symbols In Schematic Reference:






SYMBOLS IN WIRING DIAGRAMS
