Speedometer Cable Replacement

SPEEDOMETER CABLE REPLACEMENT

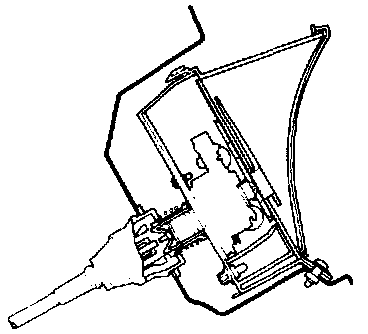

1. Correctly insert the adapter into the instrument panel, and fasten the new speedometer cable.

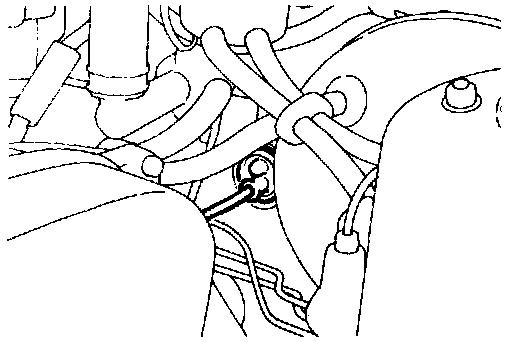

2. Install the grommet so that, the cable attachment part and the projection part are horizontal.

CAUTION: The cable arrangement should be made so that the radius of the cable bends is 150 mm (5.9 in.) or more.

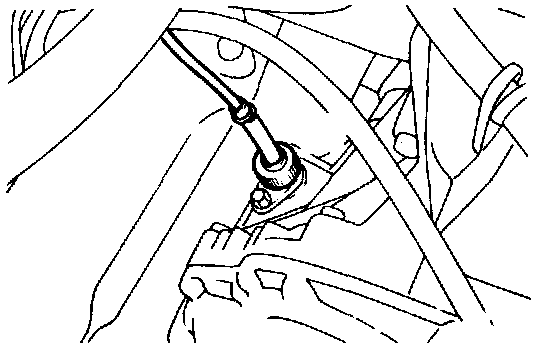

3. At the transaxle end of the speedometer cable, the key joint should be inserted into the transaxle, and the nut should be securely tightened.

CAUTION: If the cable is not correctly and securely connected, it may cause incorrect indication by the speedometer, or abnormal noise. Be sure to connect it correctly.
