Terminal Identification
NOTE:
The following terminals are shown as viewed from component side of connector.
TERMINAL IDENTIFICATION DIRECTORY
| Connector | See Fig. |
|---|---|

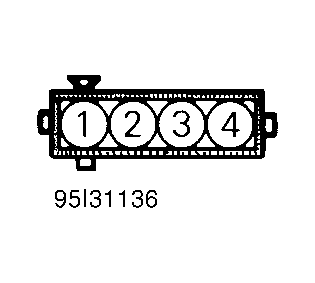

| Airflow Sensor | Fig 1 |
| CKP/CMP Sensor | Fig 2 |
| ECT Sensor | Fig 3 |
| EGR Temperature Sensor | Fig 4 |
| Fuel Injector | Fig 5 |
| Fuel Pump | Fig 6 |
| IAC Motor | Fig 7 |
| IAC Valve Position Sensor | Fig 8 |
| Ignition Coil | Fig 9 |
| Induction Control Valve Position Sensor | Fig 10 |
| Knock Sensor | Fig 11 |
| MAP Sensor | Fig 12 |
| MFI Relay | Fig 13 |
| Oxygen Sensor (O2S) | Fig 14 |
| Park Neutral Switch | Fig 15 |
| PCM | Fig 16 |
| Tachometer | Fig 17 |
| Throttle Position (TP) Sensor | Fig 18 |
| Traction Control Vacuum Solenoid | Fig 19 |
| Traction Control Vent Solenoid | Fig 20 |
| Transaxle Control Module | Fig 21 |
