Power Window Switch

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY TABLE. See Fig 2 -Fig 4 . Replace appropriate switch as necessary if switch continuity is not as specified.

MAIN WINDOW SWITCH CONTINUITY (EXPO LRV)

Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF 1, 2 & 9
Left Front UP 1 & 9; 2 & 6
Left Front DOWN 1 & 6; 2 & 9
Right Front OFF 5, 8 & 9
Right Front UP 5 & 6; 8 & 9
Right Front DOWN 5 & 9; 6 & 8
Lock Position
Left Front OFF 1, 2 & 9
Left Front UP 1 & 9; 2 & 6
Left Front DOWN 1 & 6; 2 & 9
Right Front OFF 5 & 8
Right Front UP 5 & 6
Right Front DOWN 6 & 8
(1) Left side of vehicle refers to driver's side.
Fig 1: Main Switch Connector Terminals (Expo LRV)
G94J46887Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
MAIN WINDOW SWITCH CONTINUITY (EXPO)

Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF 1, 5 & 8
Left Rear OFF 5, 11 & 12
Left Front UP 1 & 13; Pins 5 & 8
Left Rear UP 5 & 12; 11 & 13
Left Front DOWN 1 & 5; 8 & 13
Left Rear DOWN 5 & 11; 12 & 13
Right Front OFF 2, 5 & 9
Right Rear OFF 5, 7 & 10
Right Front UP 2 & 5; 9 & 13
Right Rear UP 5 & 7; 10 & 13
Right Front DOWN 2 & 13; 5 & 9
Right Rear DOWN 5 & 10; 7 & 13
Lock Position
Left Front OFF 1, 5 & 8
Left Rear OFF 5, 11 & 12
Left Front UP 1 & 13; 5 & 8
Left Rear UP 5 & 12
Left Front DOWN 1 & 5; 8 & 13
Left Rear DOWN 5 & 11
Right Front OFF 2, 5 & 9
Right Rear OFF 5, 7 & 10
Right Front UP 2 & 5; 9 & 13
Right Rear UP 10 & 13
Right Front DOWN 2 & 13; 5 & 9
Right Rear DOWN 5 & 10
(1) Left side of vehicle refers to driver's side.

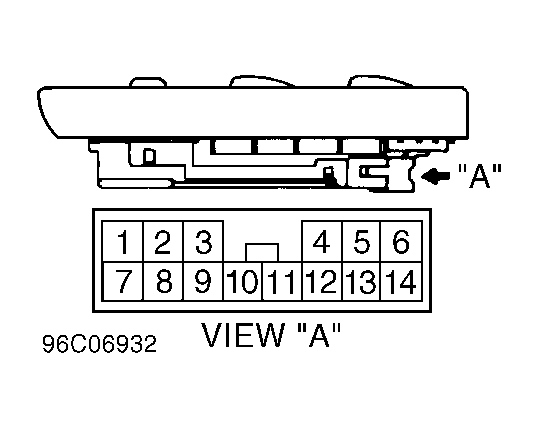

Fig 2: Main Switch Connector Terminals (Expo)
G96C06932Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RIGHT FRONT SIDE WINDOW SWITCH CONTINUITY

Switch Position Check Continuity Between Pins No.
OFF 1 & 2; 4 & 5
UP 2 & 3; 4 & 5
DOWN 1 & 2; 3 & 4

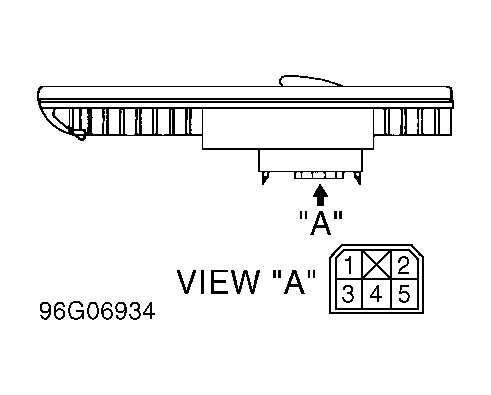

Fig 3: Front Sub Switch Connector Terminals
G96G06934Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR SIDE DOOR WINDOW SWITCH CONTINUITY

Switch Position (1) Check Continuity Between Pins No.
Left Rear OFF 1 & 2; 3 & 4
Left Rear UP 1 & 2; 4 & 5
Left Rear DOWN 1 & 5; 3 & 4
Right Rear OFF 1 & 2; 3 & 4
Right Rear UP 1 & 5; 3 & 4
Right Rear DOWN 1 & 2; 4 & 5
(1) Left side of vehicle refers to driver's side.
Fig 4: Rear Sub Switch Connector Terminals
G94B46889Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
