Door Lock Power Relay

NOTE: Following testing applies to door lock power relay "2" for keyless entry systems (if equipped).

Check continuity of relay using following charts. See Fig 1 . Replace relay as needed. For relay location, see Fig 2 and Fig 3 .

Fig 1: Testing Door Lock Power Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

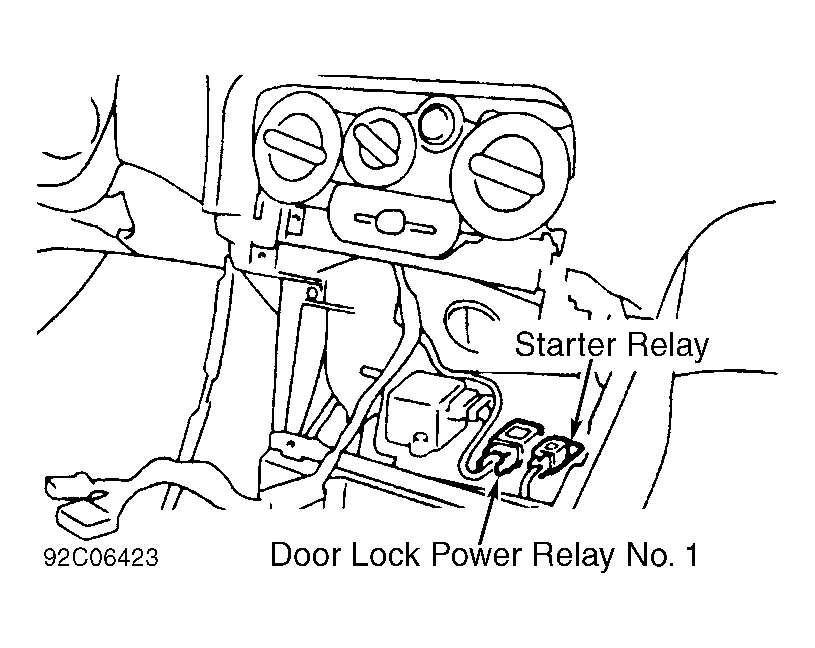

Fig 2: Locating Door Lock Relays (Relay "1")

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

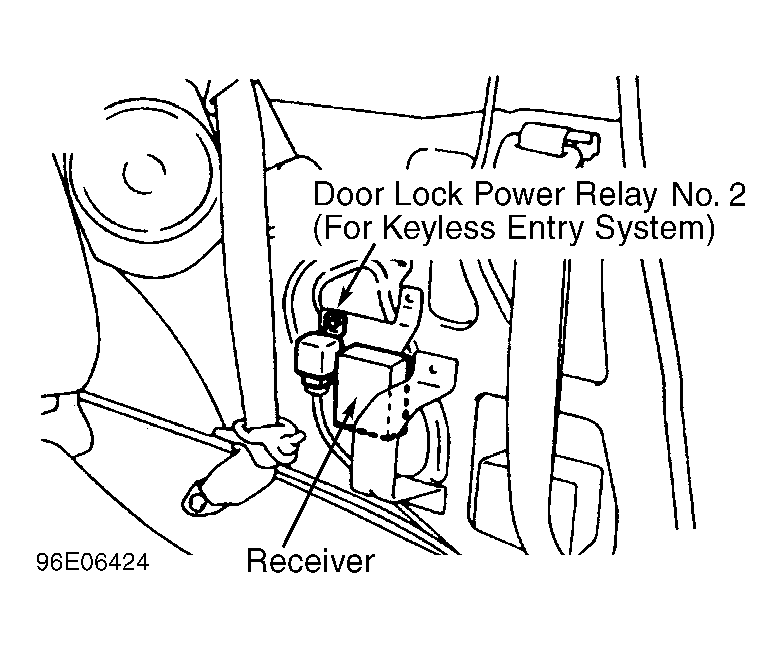

Fig 3: Locating Door Lock Relays (Relay "2")

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
