1996 Eclipse 2.4L & Eclipse Turbo
- Disconnect A/C Control Unit (ACCU) 3-pin connector, located under blower motor. Inspect connector and wiring for damage. Turn ignition on, A/C switch to second level, temperature control to maximum cooling and blower switch to high.

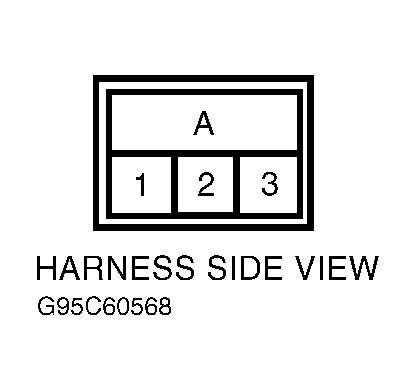

- Using a DVOM set to appropriate test function, inspect harness side of connector. See Fig 3
. Go to next step. If all test readings are as specified, replace A/C control unit. If readings are incorrect, repair circuit(s) as required.
- Terminal No. 1 (Green/Orange wire on Eclipse) is ACCU power supply when ignition switch is on, battery voltage should be present.
- Terminal No. 2 (Blue/Black wire) is A/C compressor relay. When ACCU has received signals from pressure and temperature sensors confirming A/C operation is okay, A/C switch is on, and blower motor switch is on, battery voltage should be present.
- Terminal No. 3 (Black wire) is A/C control unit ground. There should be zero volts at all times.

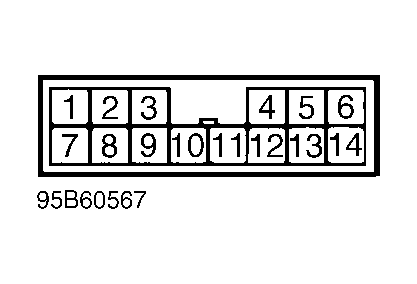

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

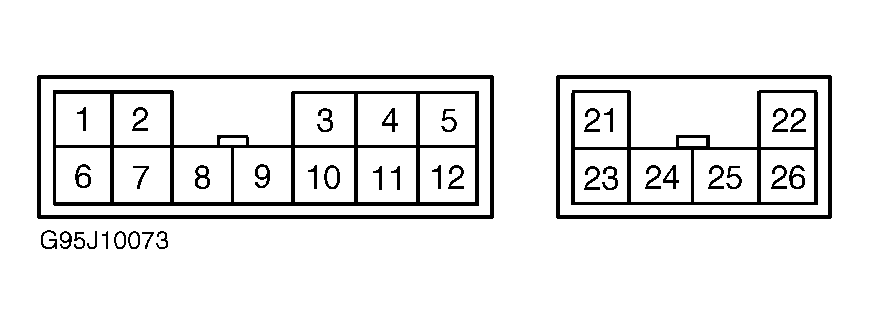

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
