System Testing: Notes
NOTE:
If anti-theft system is not functioning properly after testing procedures are complete, substitute known-good ECU and repeat test. For ECU location, see ECU LOCATION
. For ECU connector terminal ID, see Figure
and Figure
.

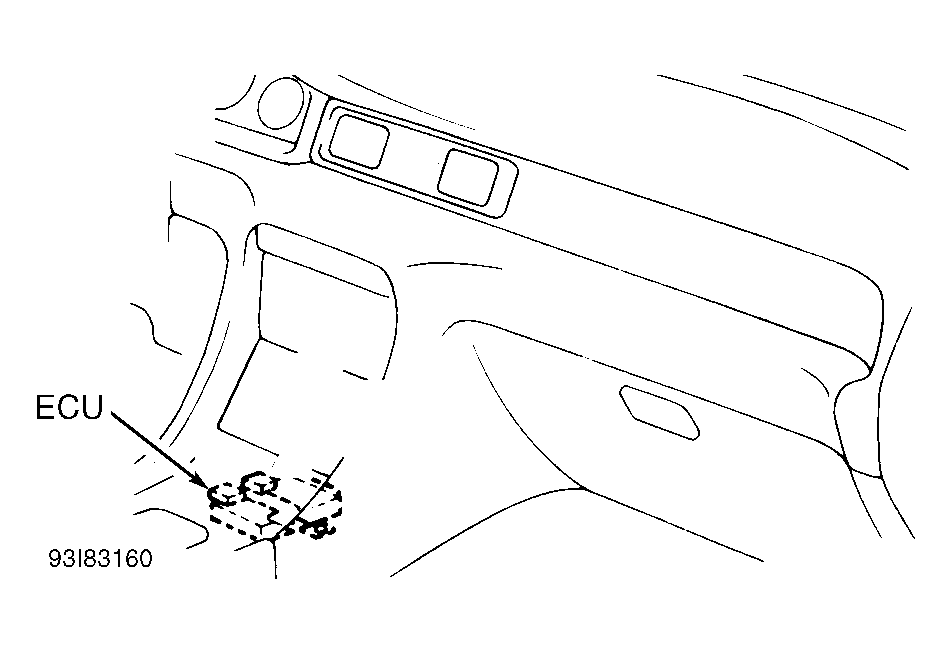

ECU LOCATION
| Application | (1) Location | ||
|---|---|---|---|
| Eclipse | Under Dash, To Left Of Footwell | ||
|
|||
