Power Seat Switch

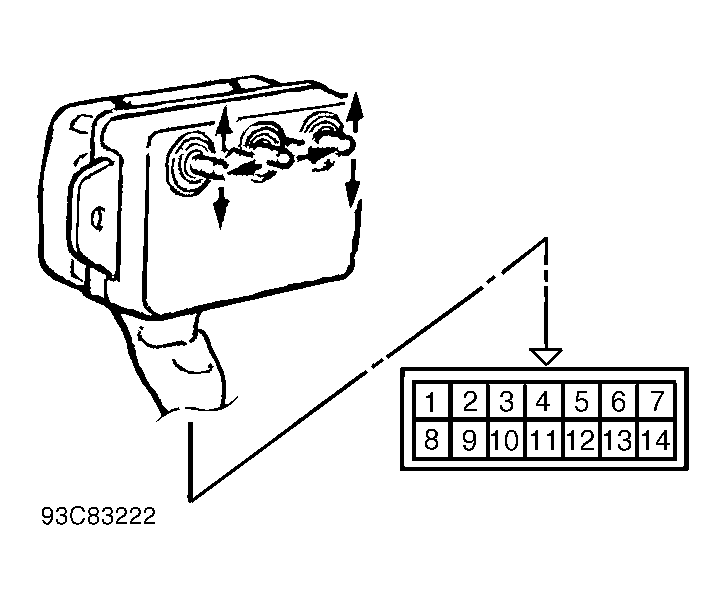

Disconnect power seat switch harness connector. Using ohmmeter, check continuity of switch. See POWER SEAT SWITCH CONTINUITY andFig 1 . Replace switch if continuity is not as specified.
POWER SEAT SWITCH CONTINUITY
| Switch Position | Check Continuity Between Pin No. | |
|---|---|---|
| Slide Switch | ||
| Forward | 2 & 3; 4 & 14 | |
| Backward | 1 & 4; 3 & 14 | |
| Front Height Switch | ||
| Up | 9 & 10; 11 & 14 | |
| Down | 8 & 11; 10 & 14 | |
| Rear Height Switch | ||
| Up | 6 & 12; 7 & 14 | |
| Down | 5 & 7; 12 & 14 | |
| All Switches Off | No Continuity, All Terminals | |
