Terminal Identification
NOTE:

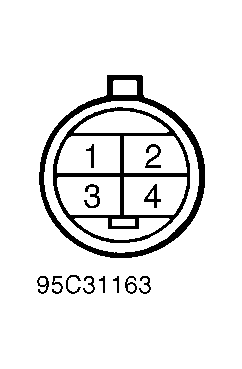

The following terminals are shown as viewed from component side of connector unless otherwise noted.
TERMINAL IDENTIFICATION DIRECTORY
| Connector | See Fig. |
|---|---|
| CKP/CMP Sensor | Fig 1 |
| DLC | Fig 2 |
| ECT Sensor | Fig 3 |
| Fuel Pump | Fig 4 |
| HO2S | Fig 5 |
| IAC Motor | Fig 6 |
| Ignition Coil | Fig 7 |
| KS | Fig 8 |
| MAP Sensor | Fig 9 |
| MDP Sensor | Fig 10 |
| MFI Relay | Fig 11 |
| PNP Switch | Fig 12 |
| PCM | Fig 13 |
| Tachometer | Fig 14 |
| TCM | Fig 15 |
| T/C Vacuum Solenoid | Fig 16 |
| T/C Vent Solenoid | Fig 17 |
| TP Sensor | Fig 18 |
| VAF Sensor | Fig 19 |
| VIC Valve Position Sensor | Fig 20 |
