Removal & Installation: Notes

WARNING: This page is about a different car, the 1995 Eagle Vision, 1995 Dodge Intrepid, and 1995 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Vehicle is equipped with an air bag. Air bag must be deactivated before servicing cruise control components on or around steering column. See AIR BAG RESTRAINT SYSTEM article in the ENGINE PERFORMANCE section.
CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in the GENERAL INFORMATION section before disconnecting battery.

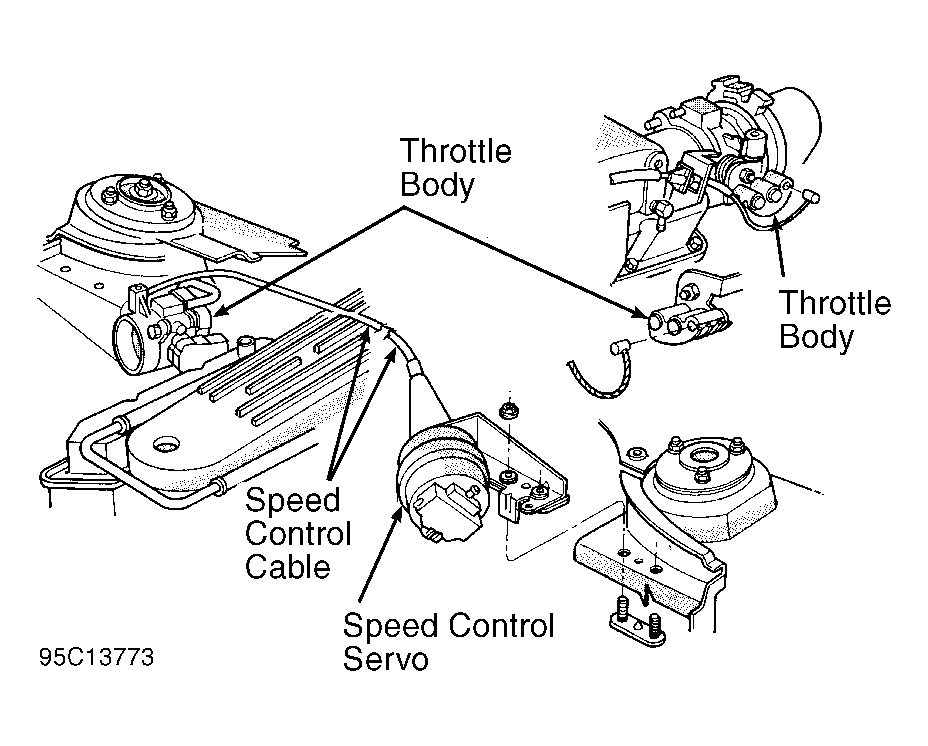

Fig 1: Locating Cruise Control Components (3.3L)
G95C13773Courtesy of CHRYSLER CORP.

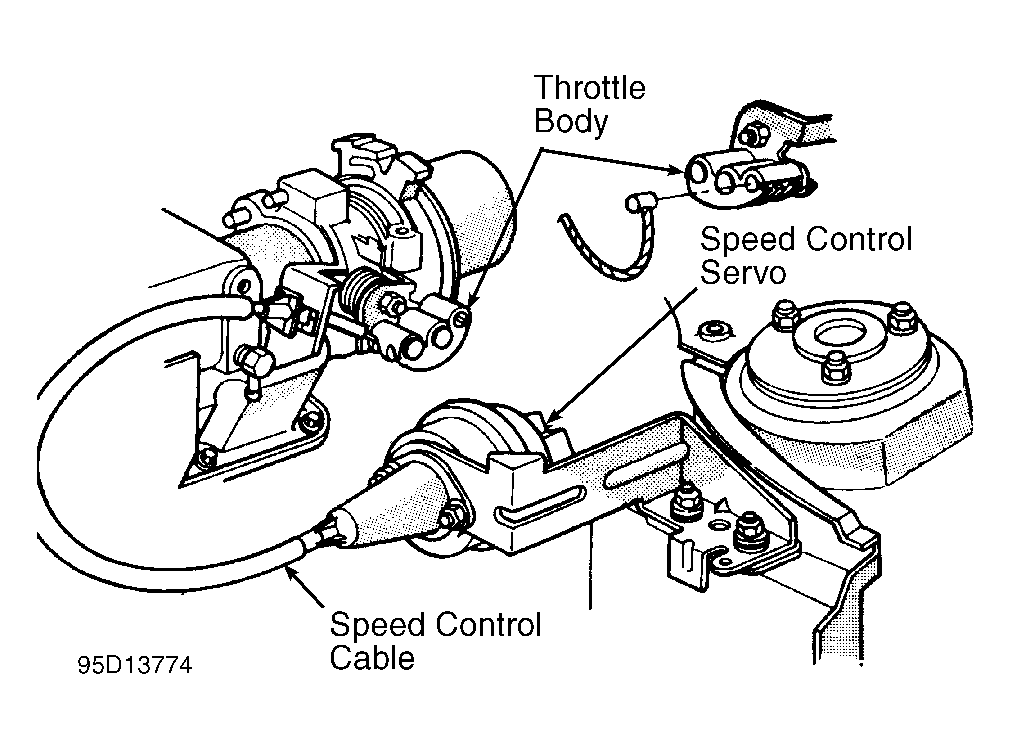

Fig 2: Locating Cruise Control Components (3.5L)
G95D13774Courtesy of CHRYSLER CORP.
