Power Window Switch

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See MAIN WINDOW SWITCH CONTINUITY or PASSENGER SIDE (SUB) WINDOW SWITCH CONTINUITY . SeeFig 1 . Replace appropriate switch as necessary if switch continuity is not as specified.

MAIN WINDOW SWITCH CONTINUITY

Switch Position ⁽¹⁾

Check Continuity Btwn. Pins No.

Normal Position

Left Front OFF

21, 22 & 24

Left Rear OFF

10 & 24

Left Front UP

21 & 24; 22 & 23

Left Rear UP

10 & 24; 11 & 24

Left Front DOWN

21 & 23; 22 & 24

Left Rear DOWN

10 & 24; 11 & 24

Right Front OFF

10 & 24

Right Rear OFF

10 & 24

Right Front UP

10 & 24; 11 & 24

Right Rear UP

10 & 24; 11 & 24

Right Front DOWN

10 & 24; 11 & 24

Right Rear DOWN

10 & 24; 11 & 24

Lock Position

Left Rear UP

11 & 24

Left Rear DOWN

11 & 24

Right Front UP

11 & 24

Right Rear UP

11 & 24

Right Front DOWN

11 & 24

Right Rear DOWN

11 & 24

⁽¹⁾	Left side of vehicle refers to driver's side.

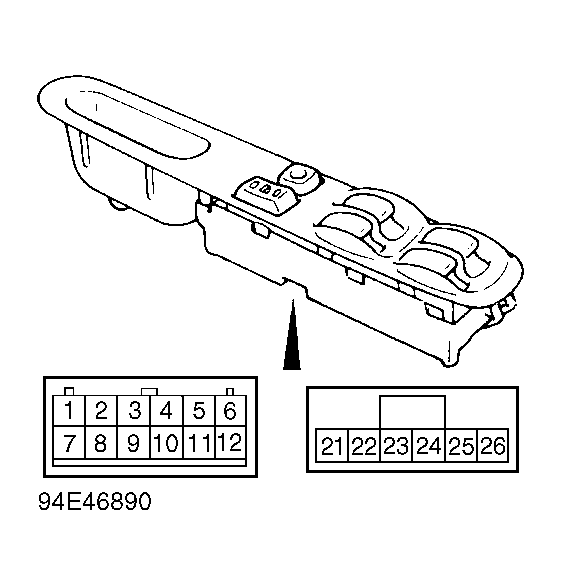

Fig 1: Main Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PASSENGER SIDE (SUB) WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between Pins No.
OFF	1, 7 & 8
UP	1 & 2; 1 & 7; 2 & 8
DOWN	1 & 2; 1 & 8; 2 & 7

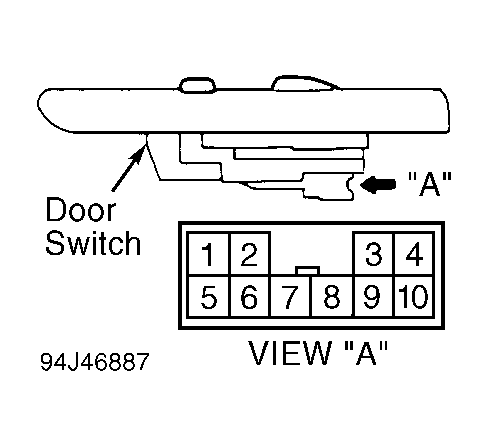

Fig 2: Sub Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
