Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

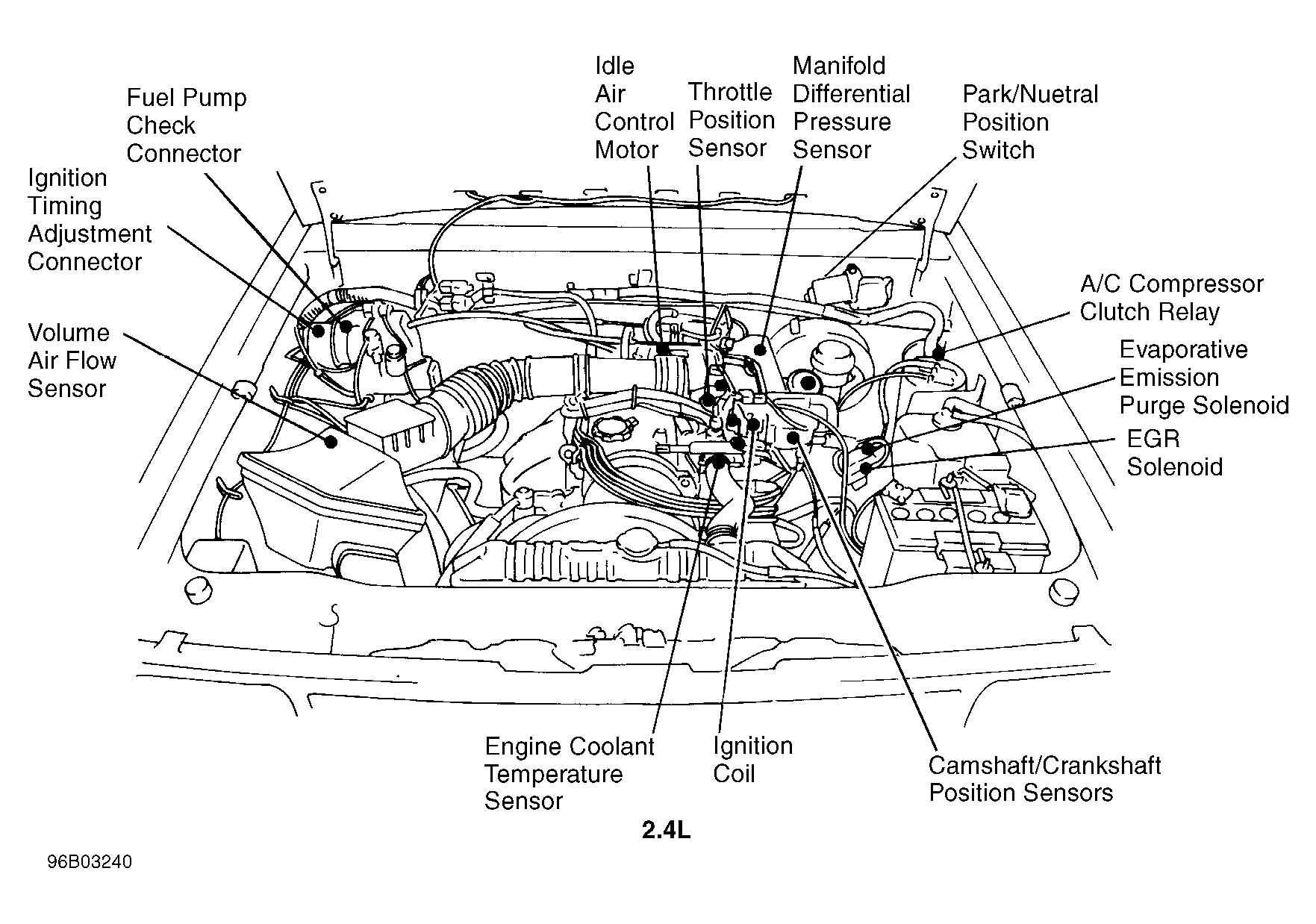

Fig 1: Engine Compartment (2.4L)
G96B03240

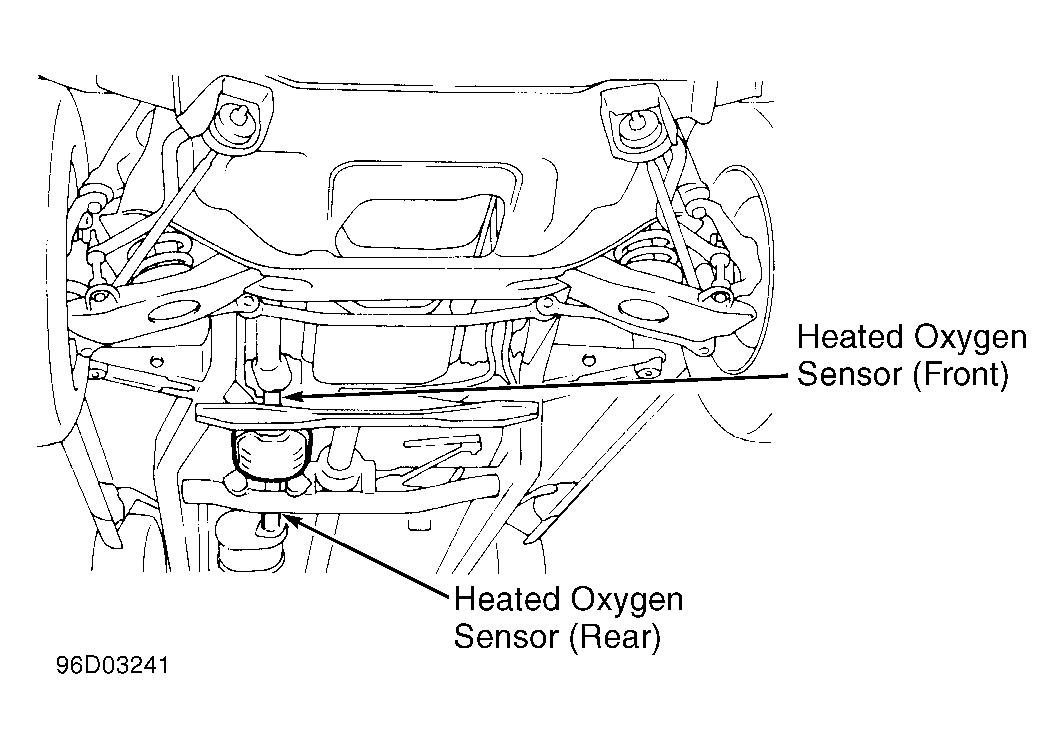

Fig 2: Under Side Of Vehicle
G96D03241

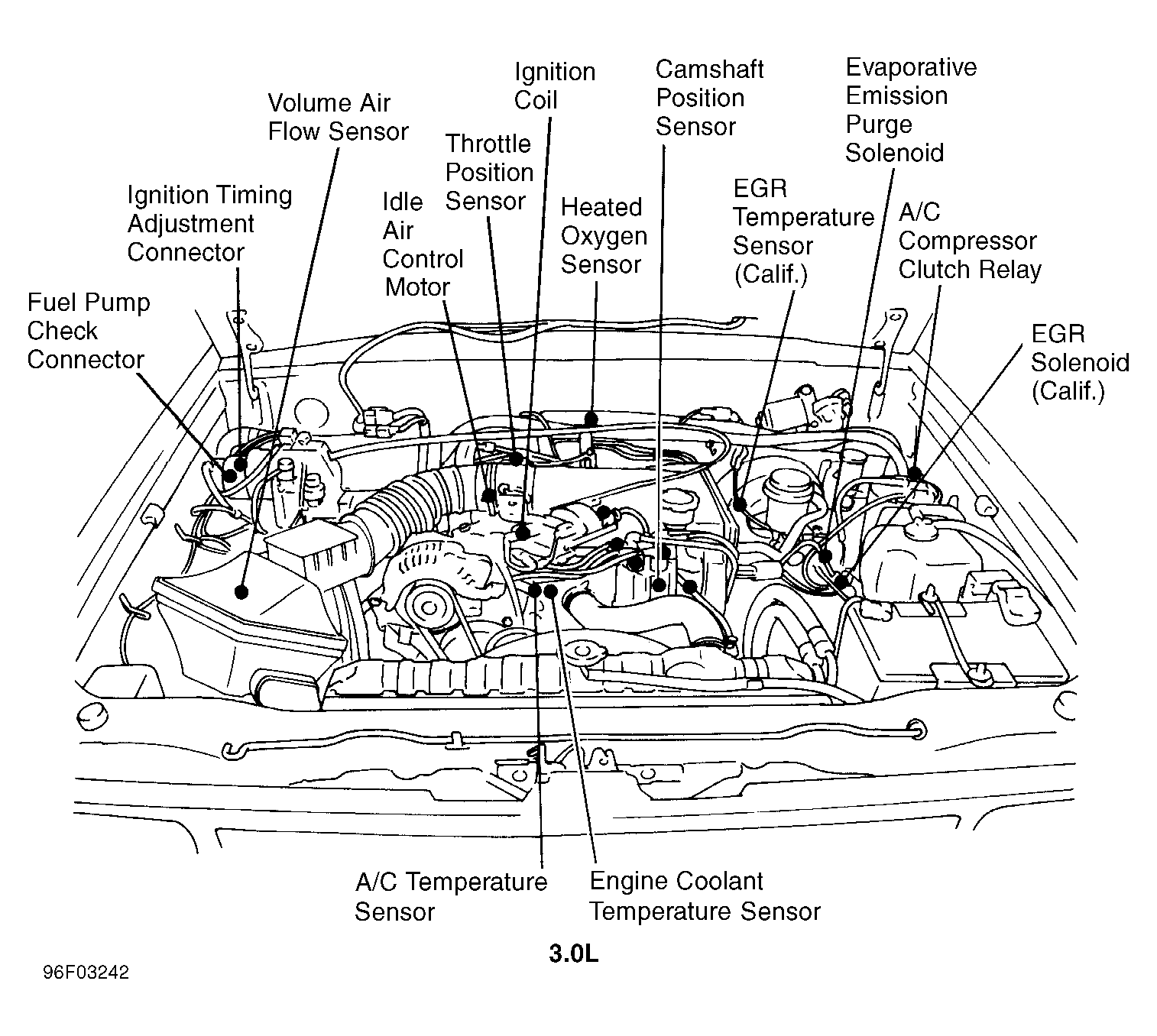

Fig 3: Engine Compartment (3.0L)
G96F03242
Fig 4: Dash
G96H03243
