Symptom Tests: Notes

NOTE: To diagnose symptom, See Fig 1 , then go to appropriate test under CIRCUIT TESTS  .

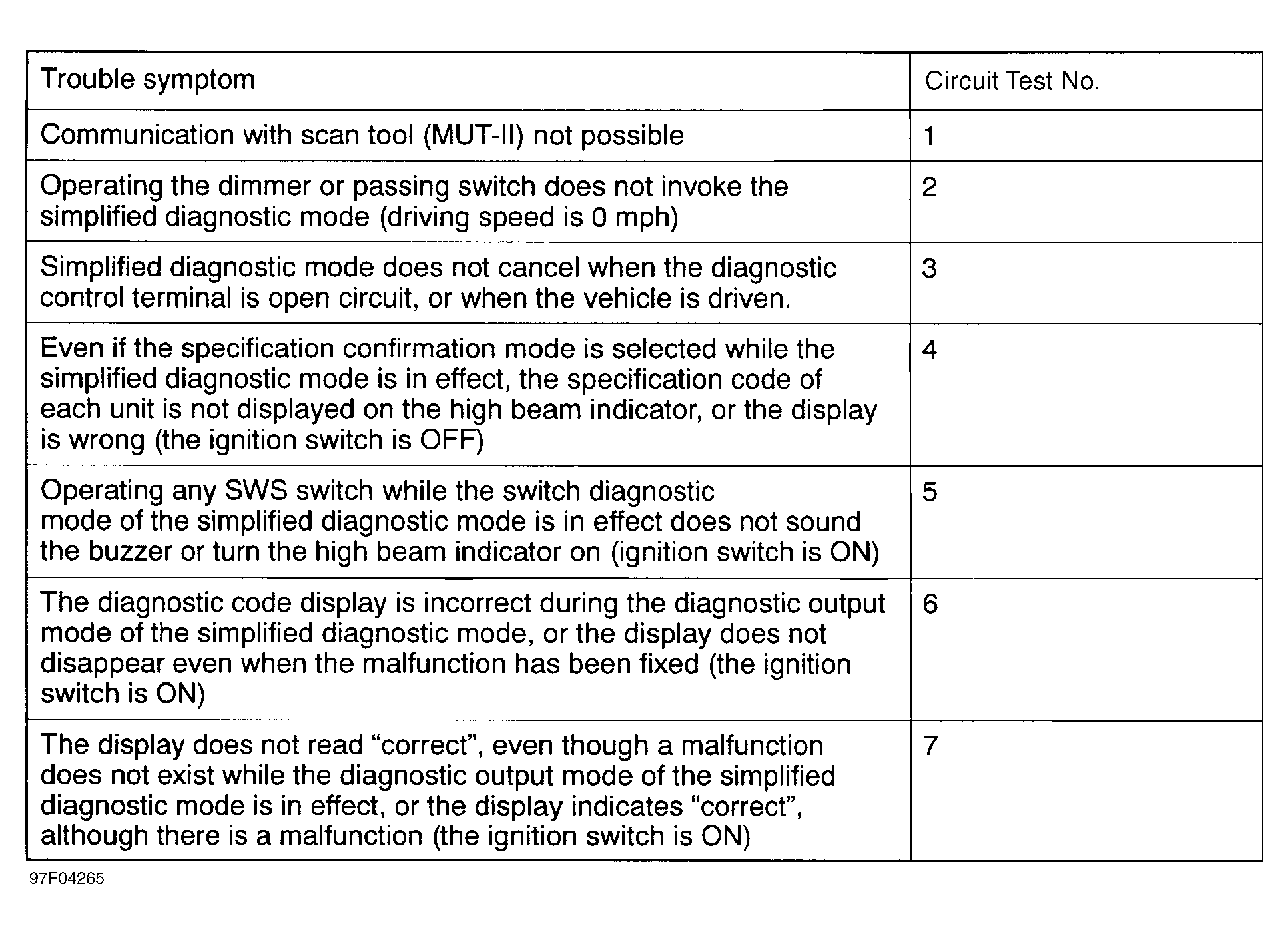

Fig 1: Symptom Chart
G97F04265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
