Power Window Switch: Sub-Switch

Remove power window sub-switch from trim panel. Apply battery positive voltage to switch terminal No. 2. Apply battery ground to switch terminals No. 1, 3, 4, 9 and 10. SeeFig 2 . Continuity should be present at specified terminals. SeeFig 2 . If continuity is not as specified, replace power window sub-switch.

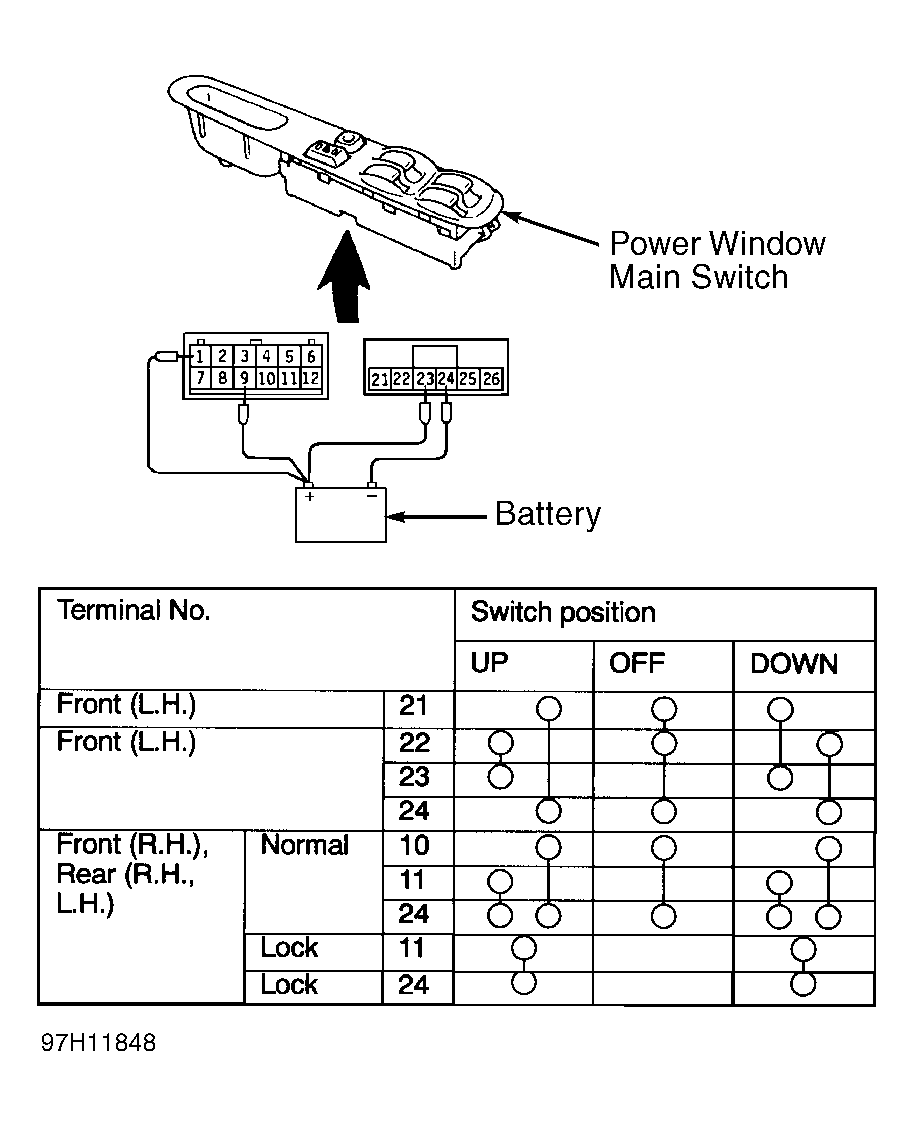

Fig 1: Testing Power Window Main Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

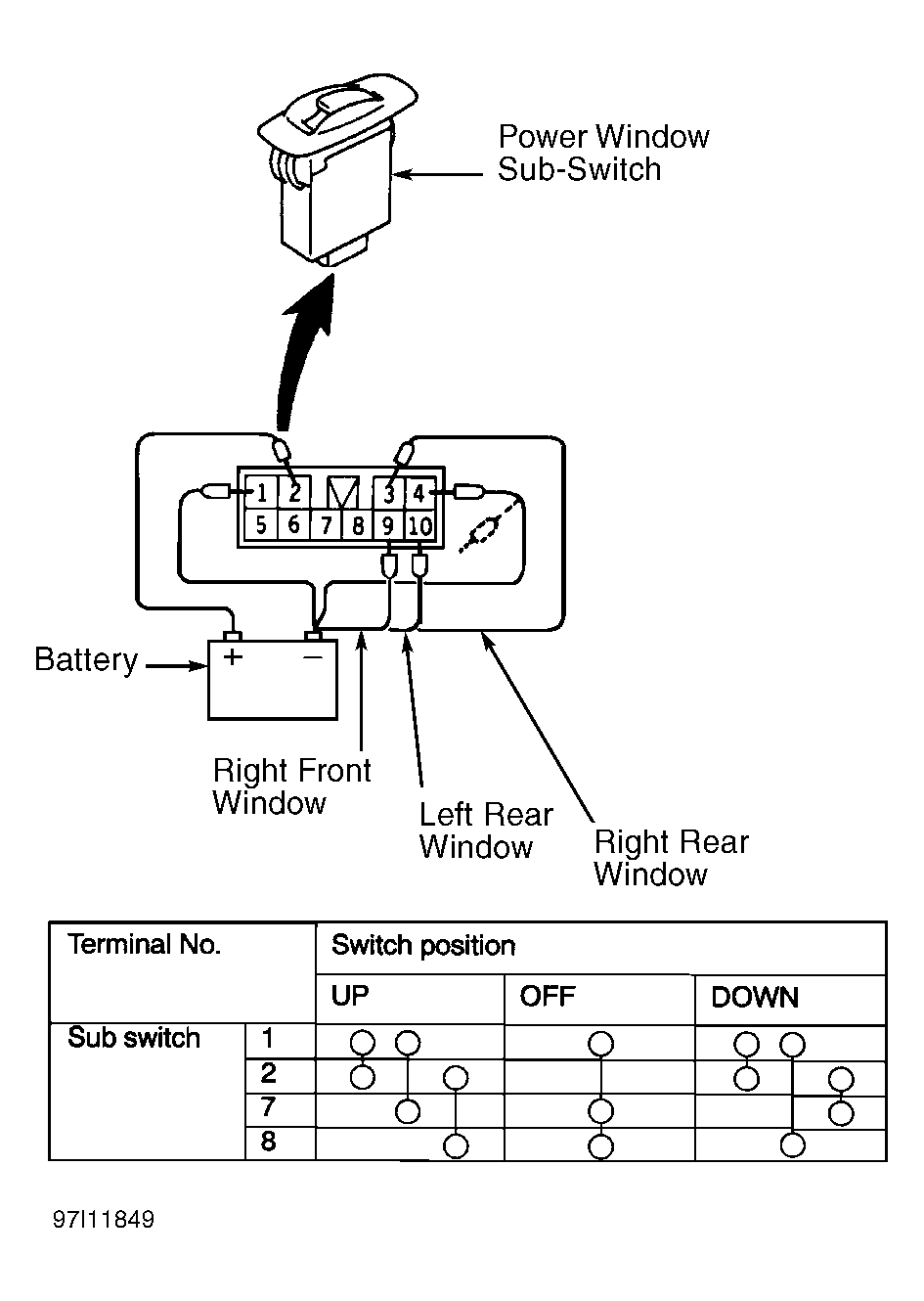

Fig 2: Testing Power Window Sub-Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
