Power Window Switch

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See MASTER WINDOW SWITCH CONTINUITY , RIGHT FRONT SIDE WINDOW SWITCH CONTINUITY or REAR DOOR WINDOW SWITCH CONTINUITY . See Fig 1 - Fig 3 . Replace appropriate switch as necessary if switch continuity is not as specified.

MASTER WINDOW SWITCH CONTINUITY

Switch Position ⁽¹⁾

Check Continuity Between Pins No.

Normal Position

Left Front OFF

2, 8 & 13

Left Rear OFF

4, 11 & 13

Left Front UP

2 & 9; 8 & 13

Left Rear UP

4 & 9; 11 & 13

Left Front DOWN

2 & 13; 8 & 9

Left Rear DOWN

4 & 13; 9 & 11

Right Front OFF

1, 7 & 13

Right Rear OFF

5, 12 & 13

Right Front UP

1 & 9; 7 & 13

Right Rear UP

5 & 9; 12 & 13

Right Front DOWN

1 & 13; 7 & 9

Right Rear DOWN

5 & 13; 9 & 12

Lock Position

Left Front OFF

2, 8 & 13

Left Rear OFF

4 & 11

Left Front UP

2 & 9; 8 & 13

Left Rear UP

4 & 9

Left Front DOWN

2 & 13; 8 & 9

Left Rear DOWN

9 & 11

Right Front OFF

1 & 7

Right Rear OFF

5 & 12

Right Front UP

1 & 9

Right Rear UP

5 & 9

Right Front DOWN

7 & 9

Right Rear DOWN

9 & 12

⁽¹⁾	Left side of vehicle refers to driver's side.

RIGHT FRONT SIDE WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between Pins No.
OFF	1 & 7; 2 & 5
UP	2 & 5; 6 & 7
DOWN	1 & 7; 5 & 6

REAR DOOR WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between Pins No.
OFF	1 & 2; 3 & 5
UP	1 & 2; 3 & 4
DOWN	2 & 4; 3 & 5

Fig 1: Power Window Connector Terminals (Main Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Power Window Connector Terminals (Front Sub-Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

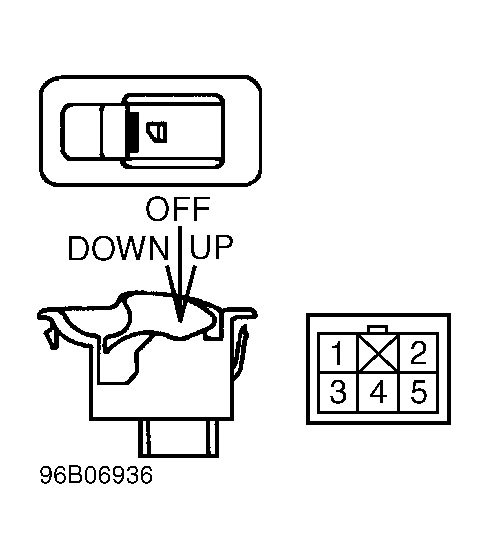

Fig 3: Power Window Connector Terminals (Rear Sub-Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
